Overview

This article provides step-by-step guides on navigating the New Order Manager interface to connect your Bluetooth printer.

Connecting Bluetooth Printers In the New Order Manager Interface

This section covers the universal initial process for adding a Bluetooth Printer in the New Order Manager. Please start here.

Initial Printer Connection Process In New Order Manager

Step Process Detail

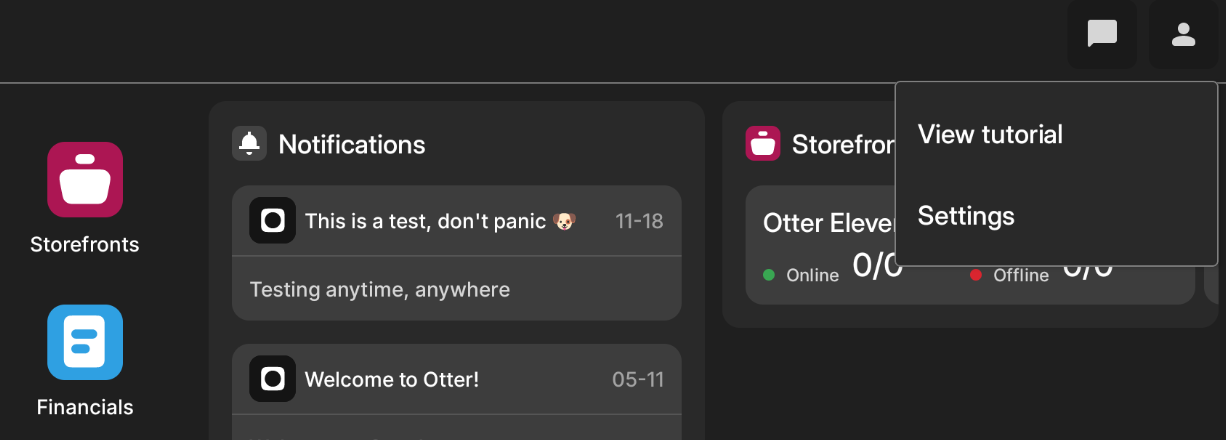

1 Click the profile icon and then click Settings Screenshot 2023-10-18 at 16.45.50.png

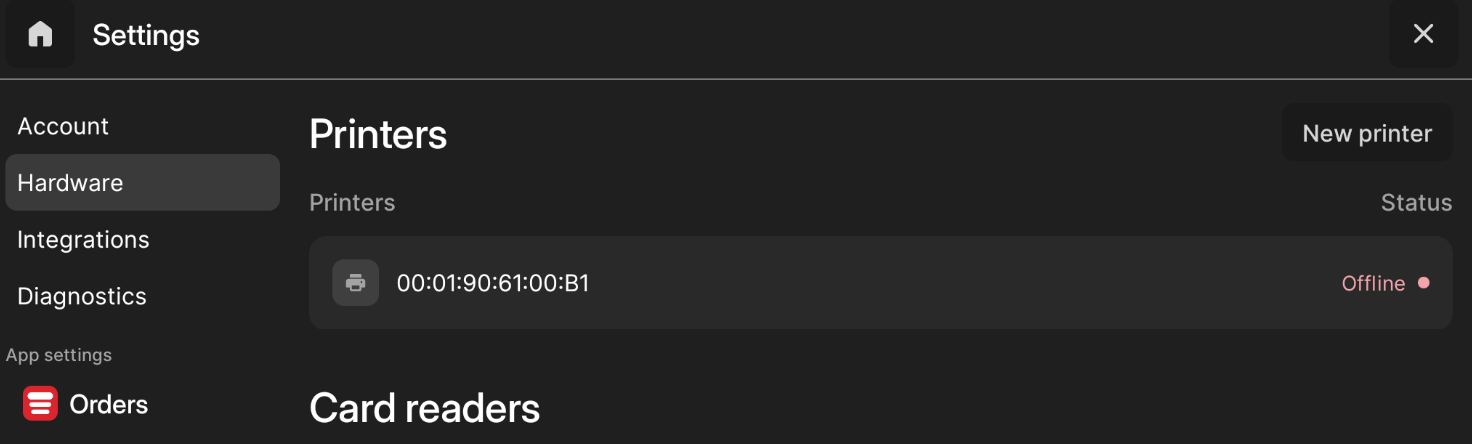

2 Click Hardware tab and then click New printer Screenshot 2023-10-18 at 16.47.12.png
3

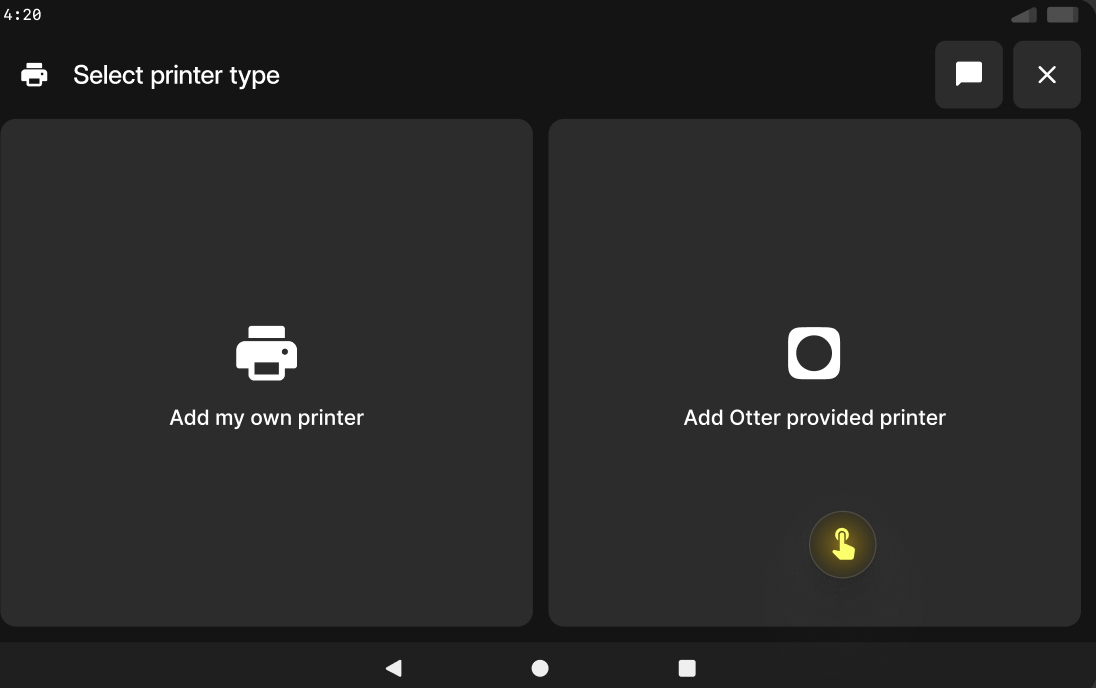

Select between Add my own printer for your own Bring Your Own Device(BYOD) or Add Otter provided printer

  • Proceed to step 4 for your own printer
  • Proceed to step 5 for an Otter provider printer
 Screenshot 2023-11-17 at 15.34.36.png

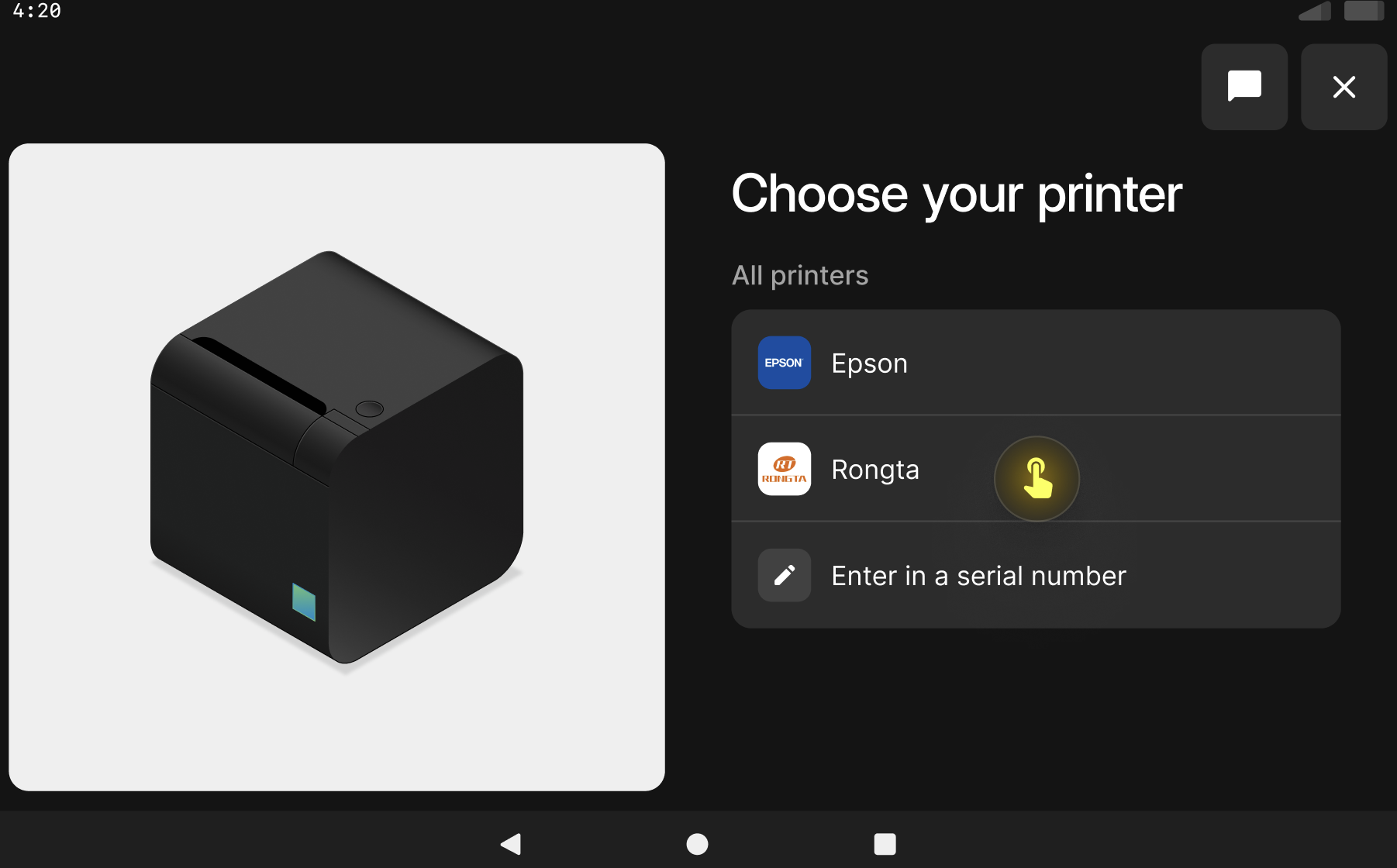

4A If you have your own device, you'll be prompted to choose your model manually. Select your printer's brand. Screenshot 2023-10-18 at 16.50.13 (1).png
4B Once the brand is selected, choose one of the corresponding model of your printer. Screenshot 2023-10-18 at 17.04.27.png

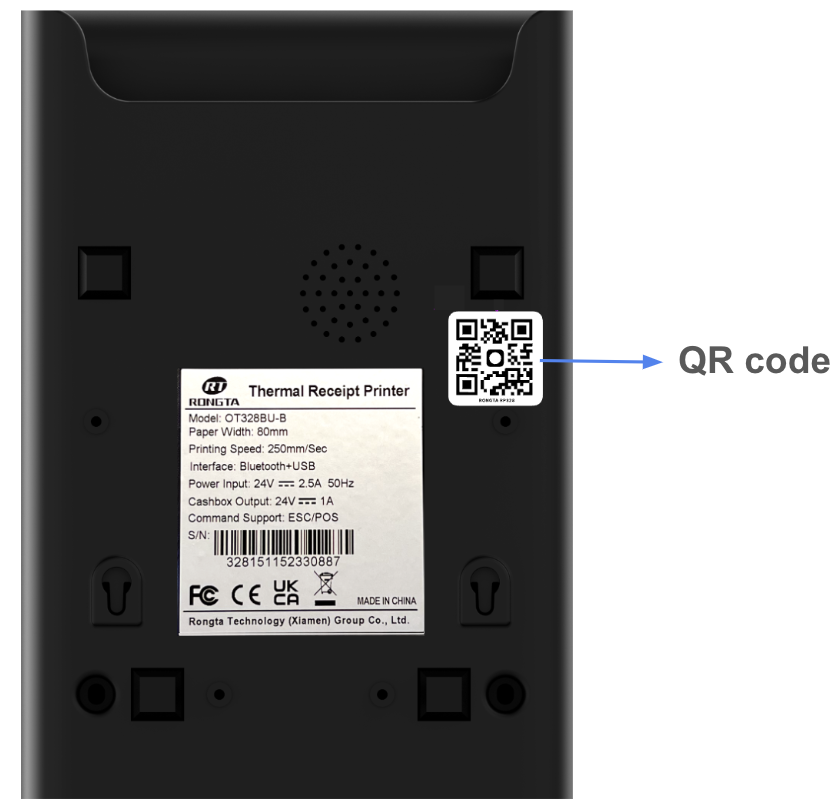

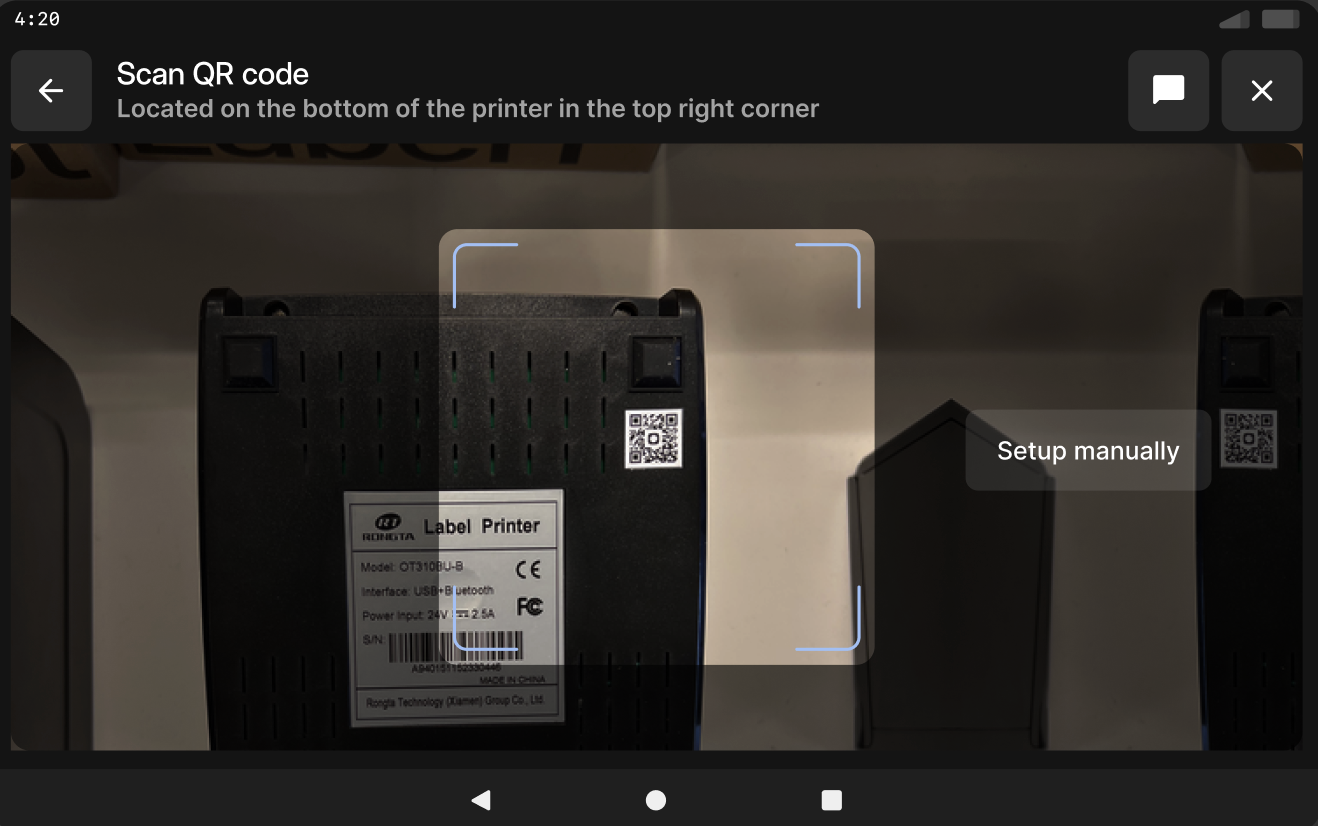

5A For otter provided printers, there will be a printer model QR code stick on the printer. Screenshot 2023-11-20 at 14.06.11.png

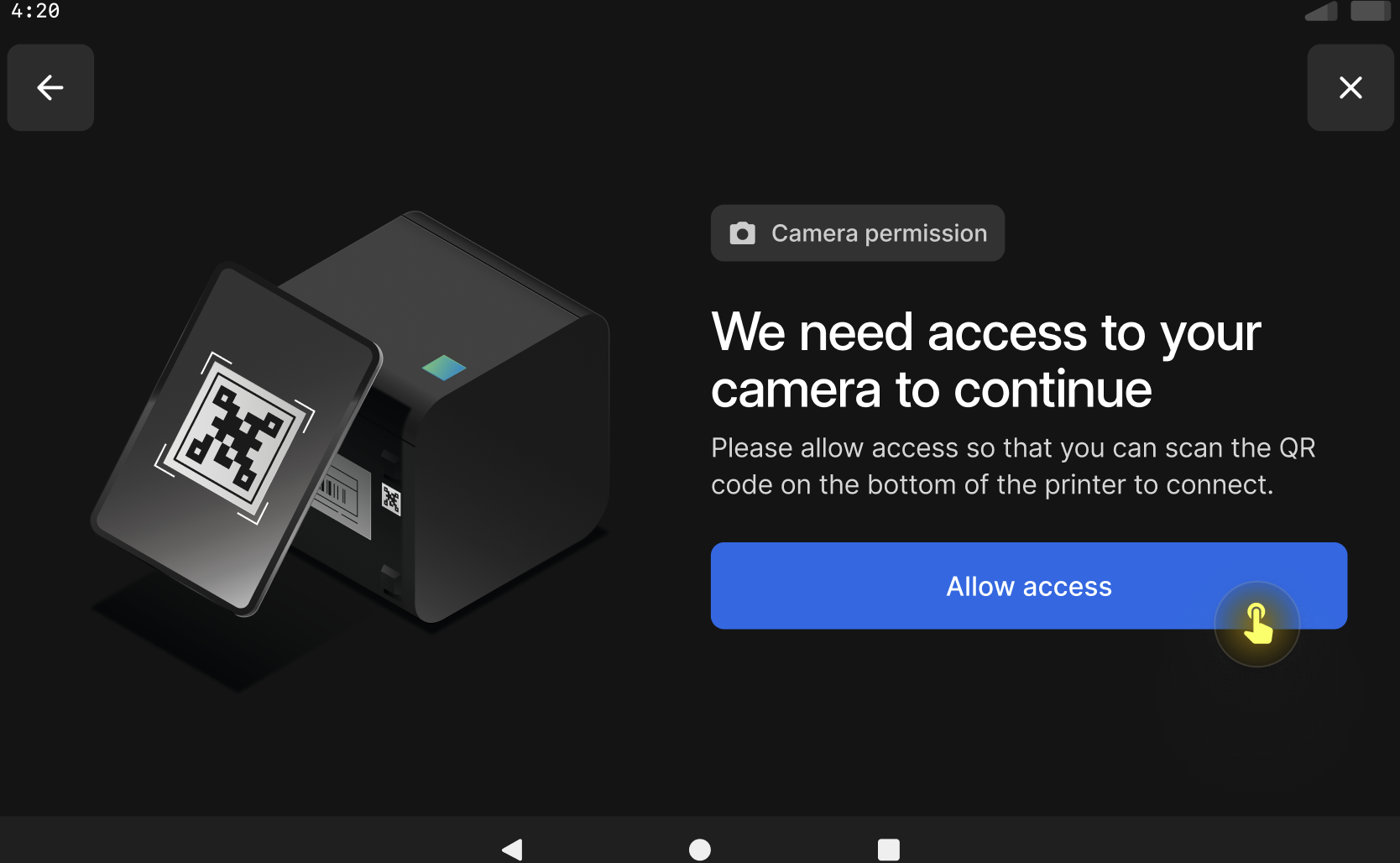

5B Grant camera access Screenshot 2023-11-17 at 13.28.28.png

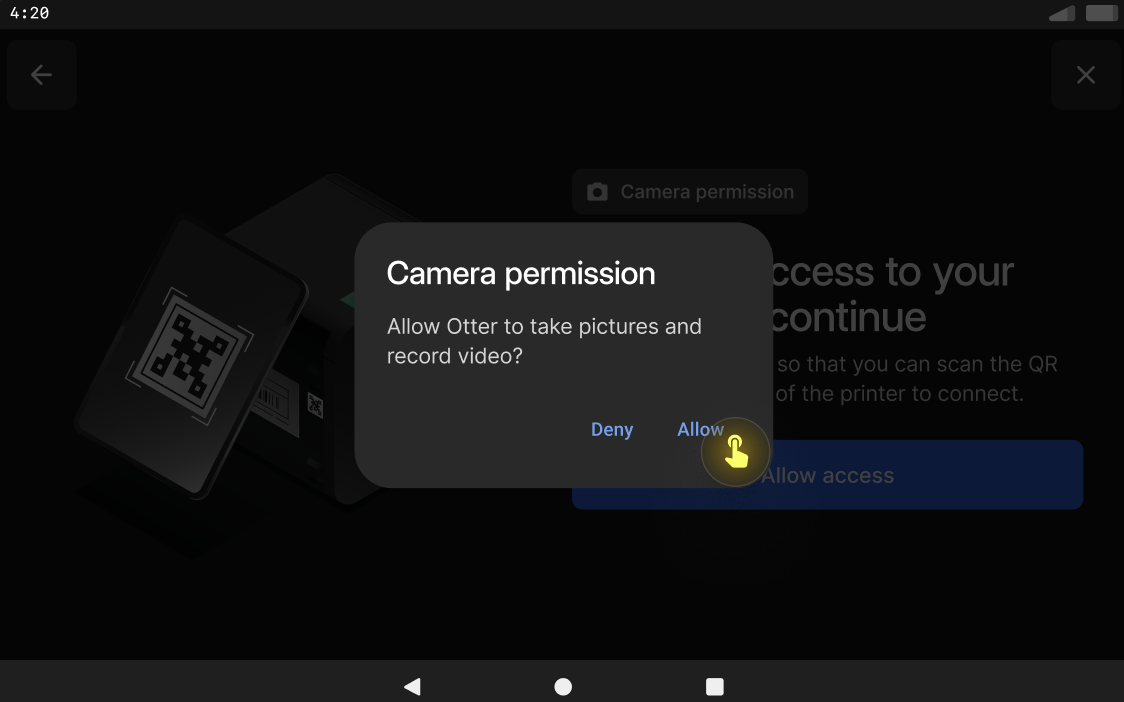

5C Allow camera permission Screenshot 2023-11-17 at 13.29.50.png
5D Start to scan or select model manually Screenshot 2023-11-17 at 13.30.40.png
6 After selecting the printer model or scanning the model QR code, you will arrive on the selected printer model setup process. Follow the steps to finish the setup process.

Bluetooth Printer Setup Processes

Please check out the following model-specific guides to finish connecting your Bluetooth Printer in the New Order Manager interface once the initial printer connection process has kicked off.

Rongta Printers

Printer Setup Instructions: RP-310 (Bluetooth Label)

Step Process Detail

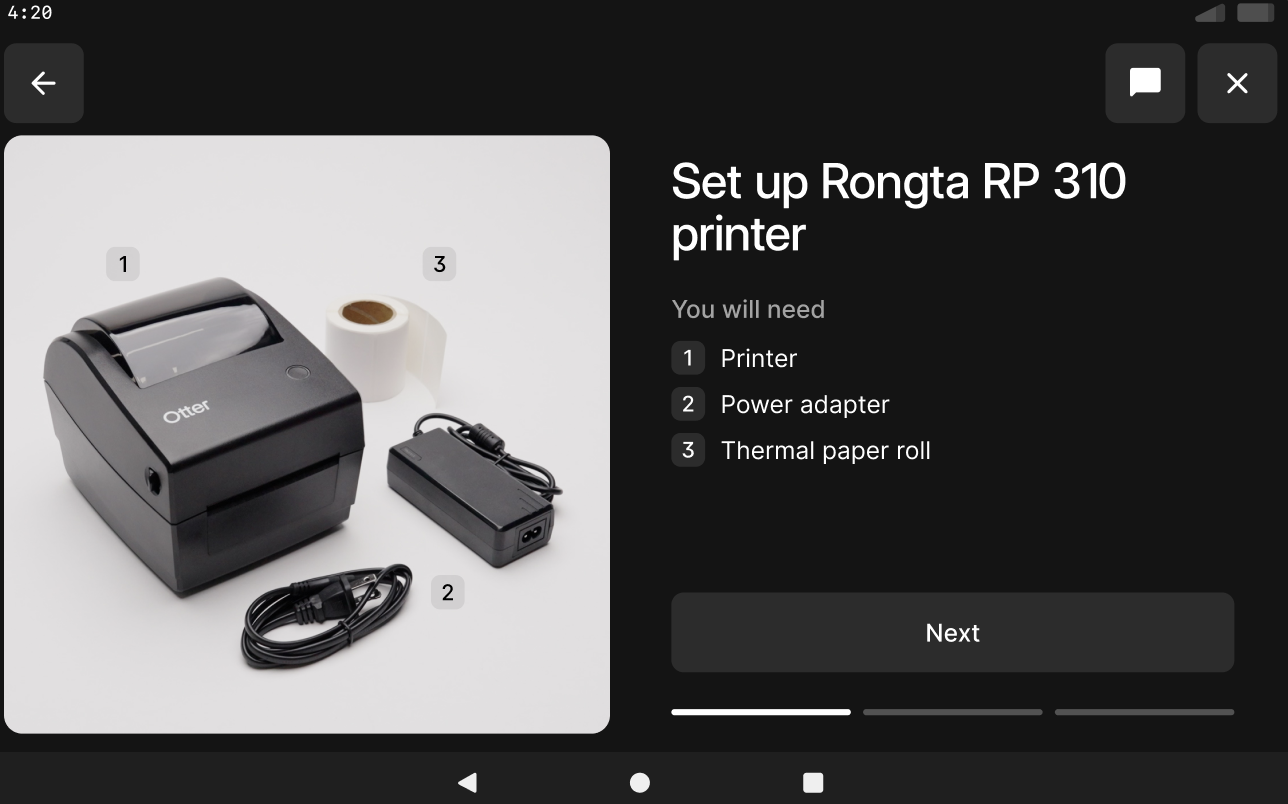

1 Check printer items and click next Screenshot 2023-10-18 at 17.07.47 (1).png

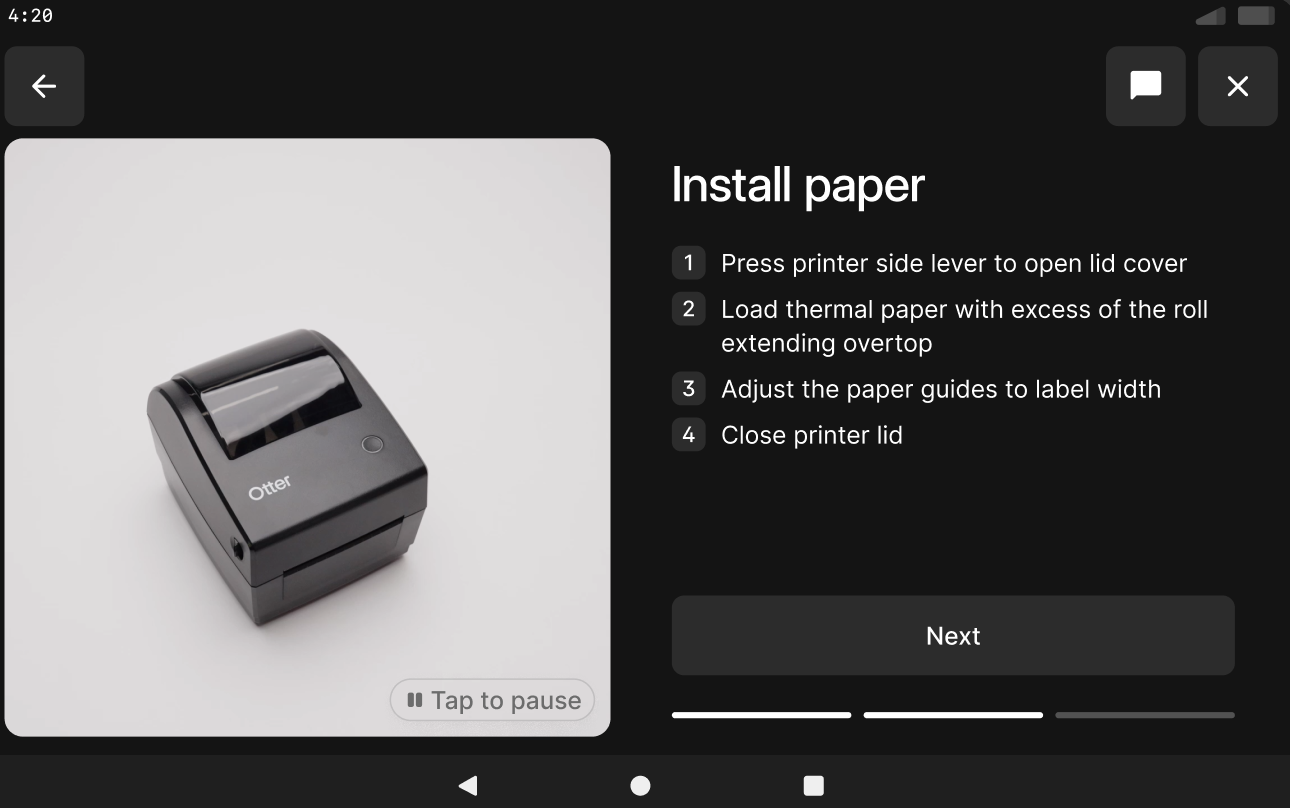

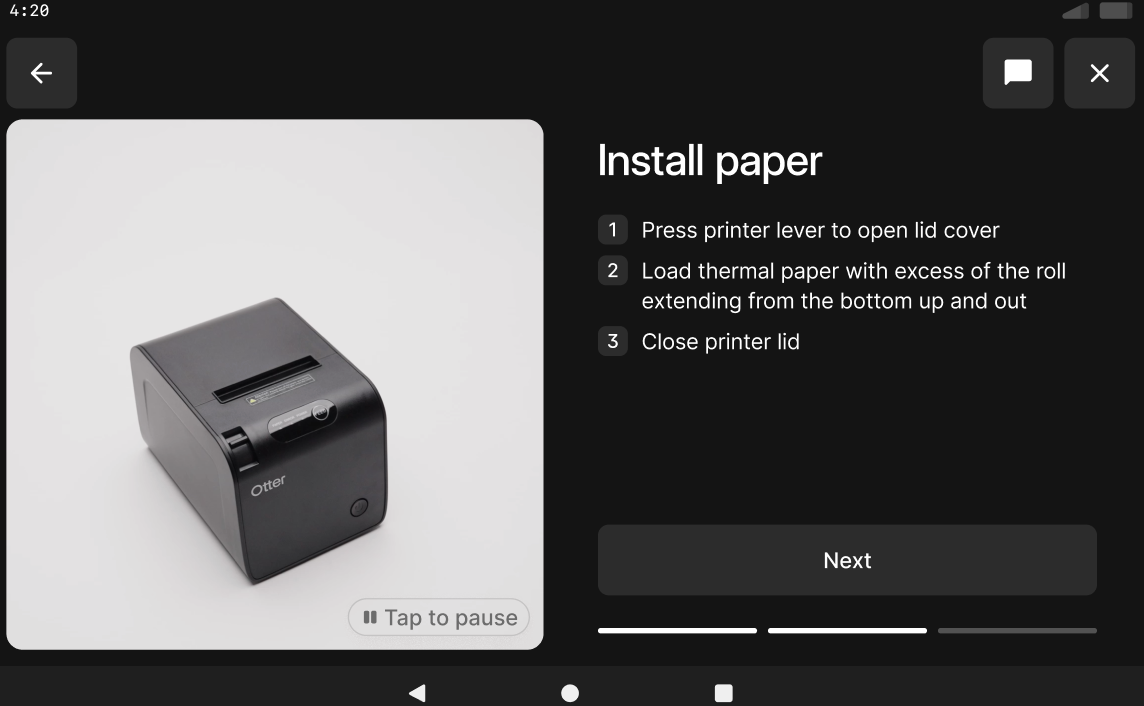

2 Install paper, then click 'Next' Screenshot 2023-10-18 at 17.08.44.png

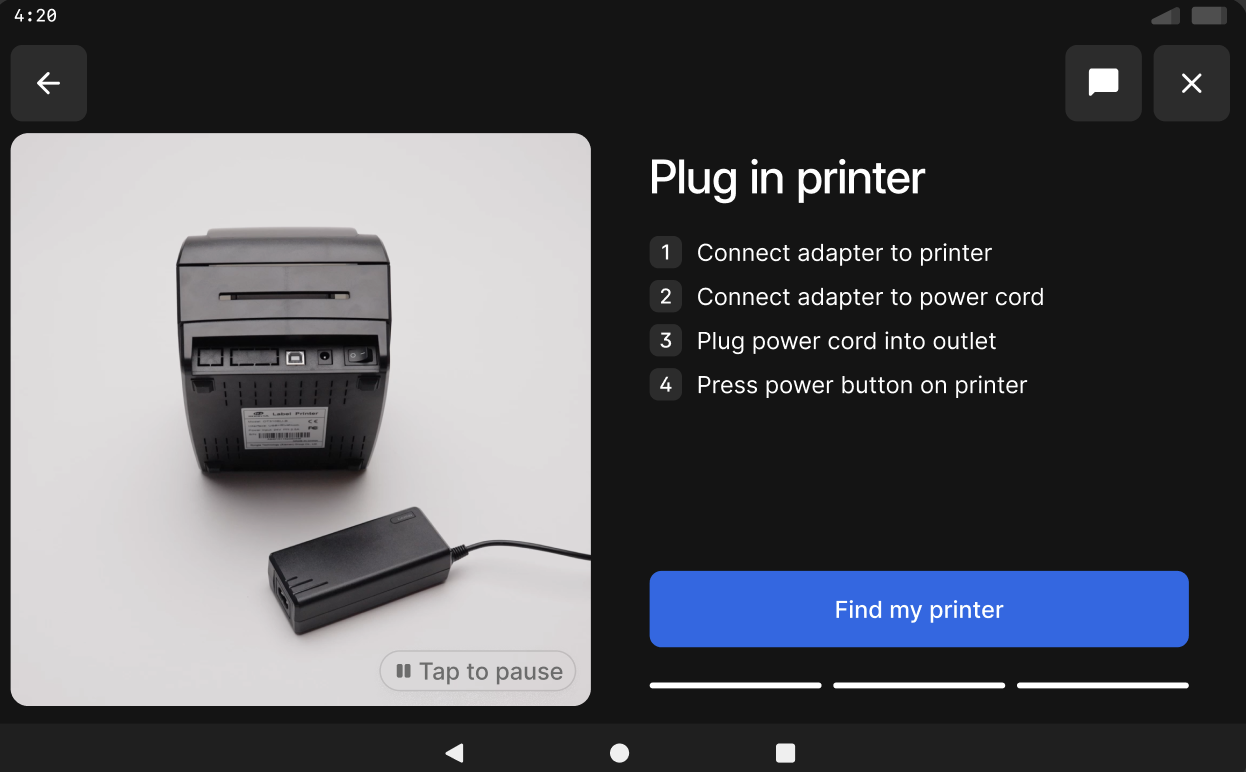

3 Plug in the printer, then click 'Find my printer' Screenshot 2023-10-18 at 17.10.45 (1).png

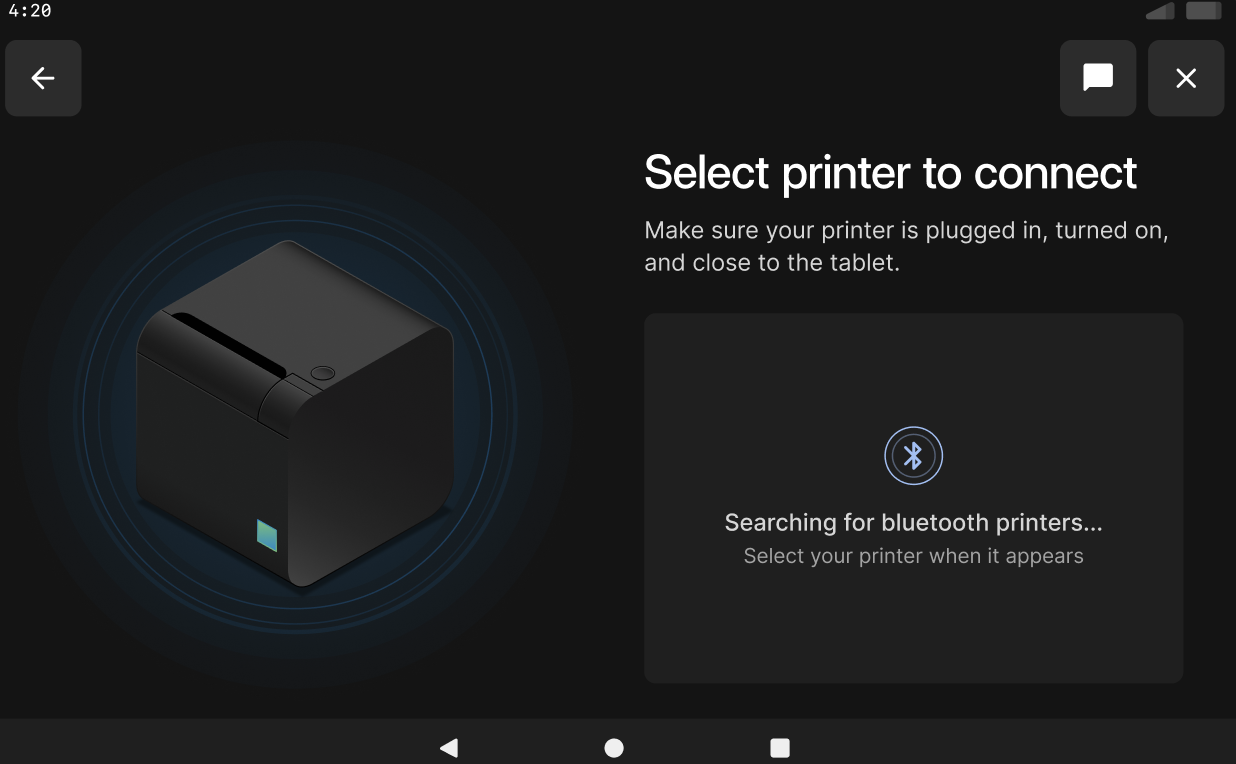

4 Wait for app to search nearby printers Screenshot 2023-10-18 at 17.12.36.png

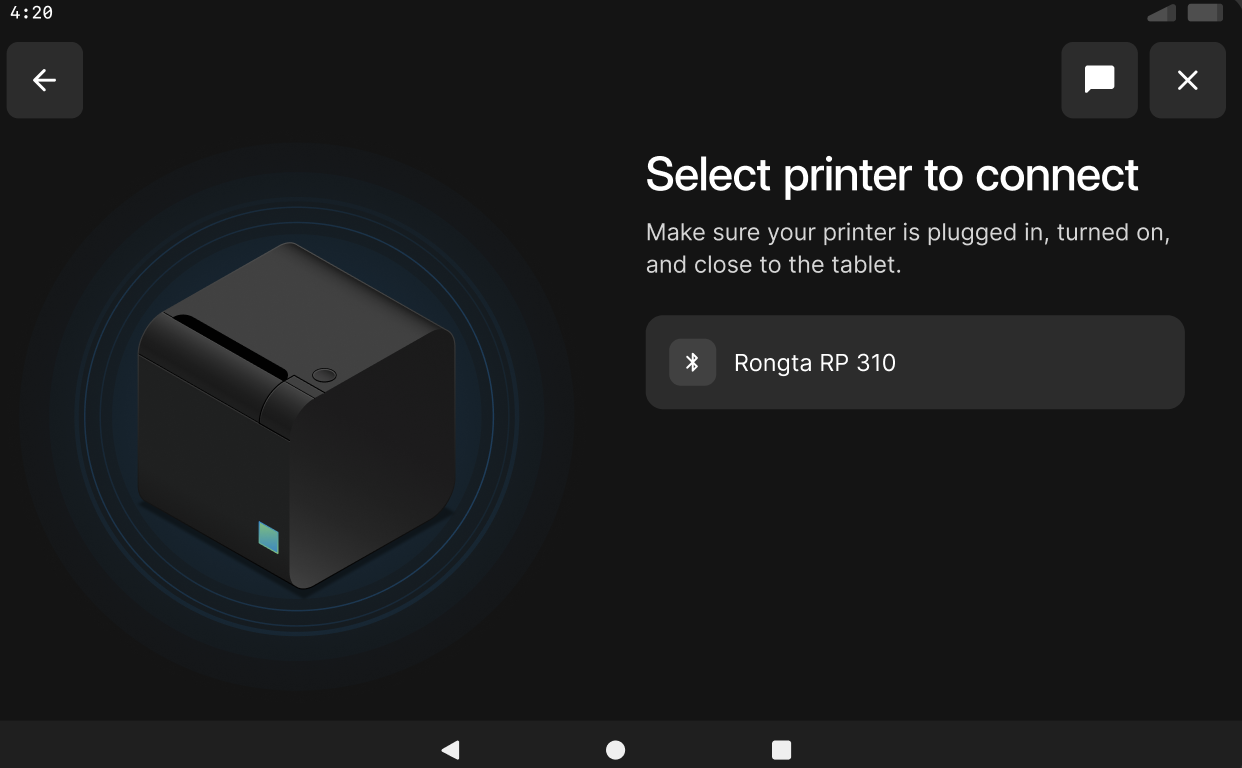

5 Select RP-310 from the printer search result list Screenshot 2023-10-18 at 17.13.51.png

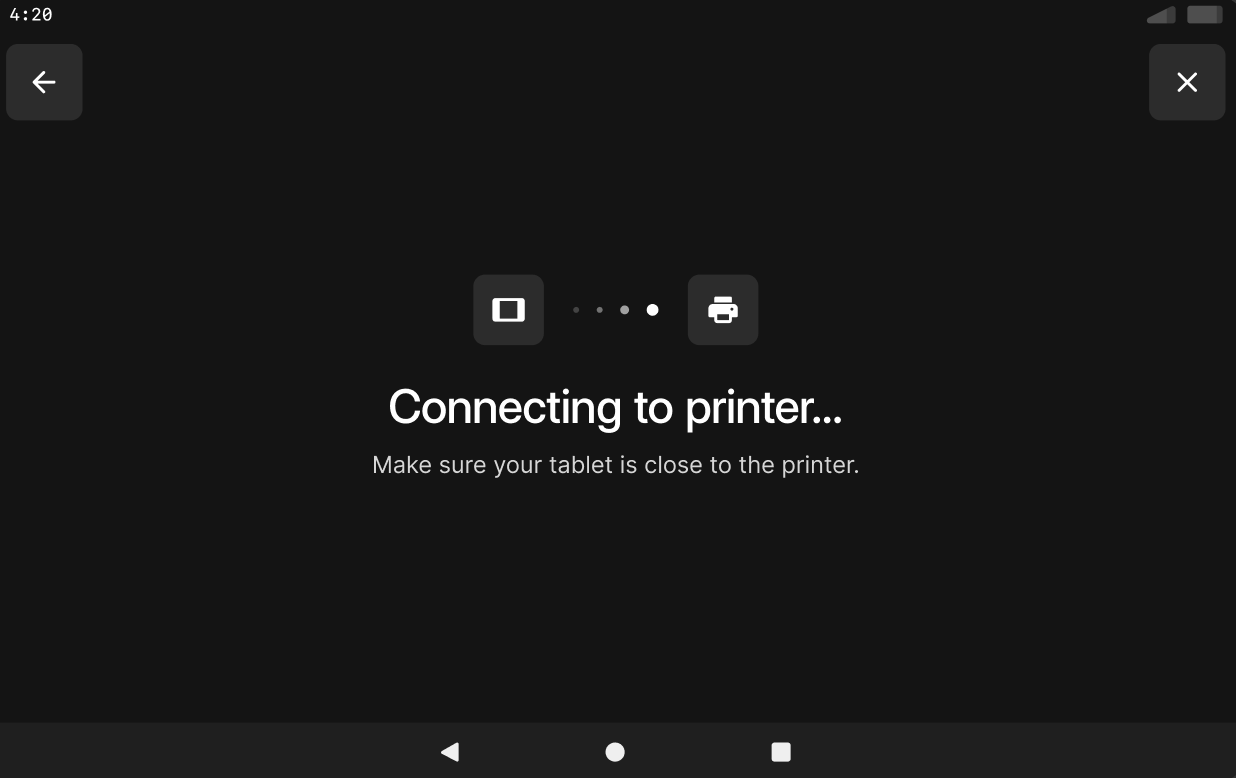

6 Wait for printer to connect Screenshot 2023-10-18 at 17.16.19.png

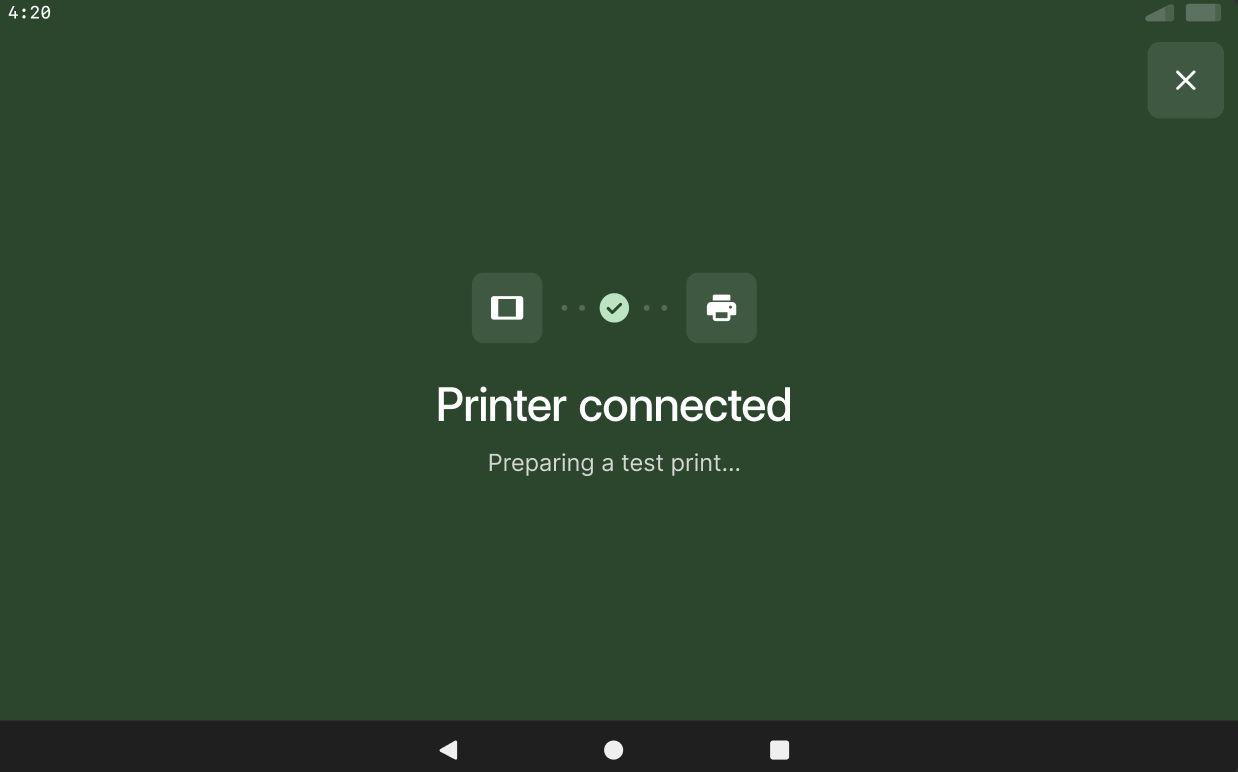

7 Once the printer connect successfully, the printer connected notification will pop up and a test print ticket will be automatically printed Screenshot 2023-10-18 at 17.18.09.png
8

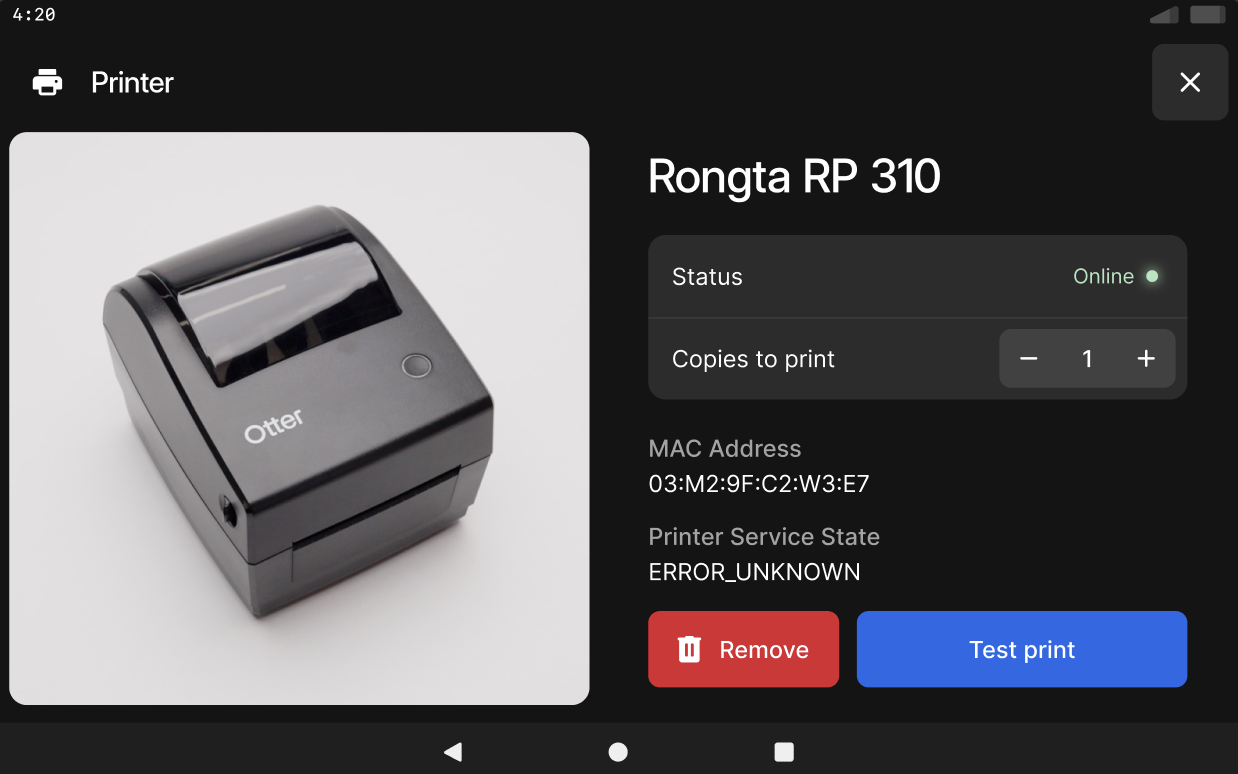

After the printer connected notification dismisses, the printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-10-18 at 17.20.45.png
Printer Setup Instructions: RP-328, RP-328-BU, RP-328-BWU, RP-328-E, RP-328-U, OT328BU-B(Bluetooth)
Step Process Detail

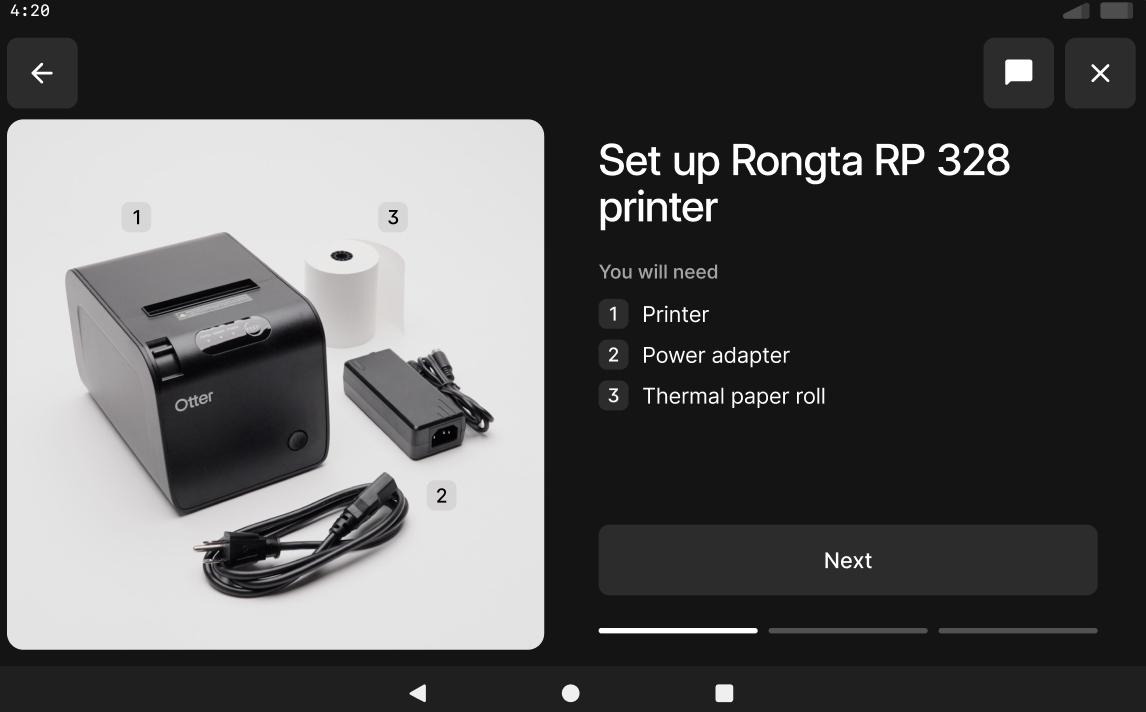

1 Check printer items and click 'Next' Screenshot 2023-11-17 at 13.34.19.png
2

Install paper, then click 'Next'

 Screenshot 2023-11-17 at 13.35.11.png

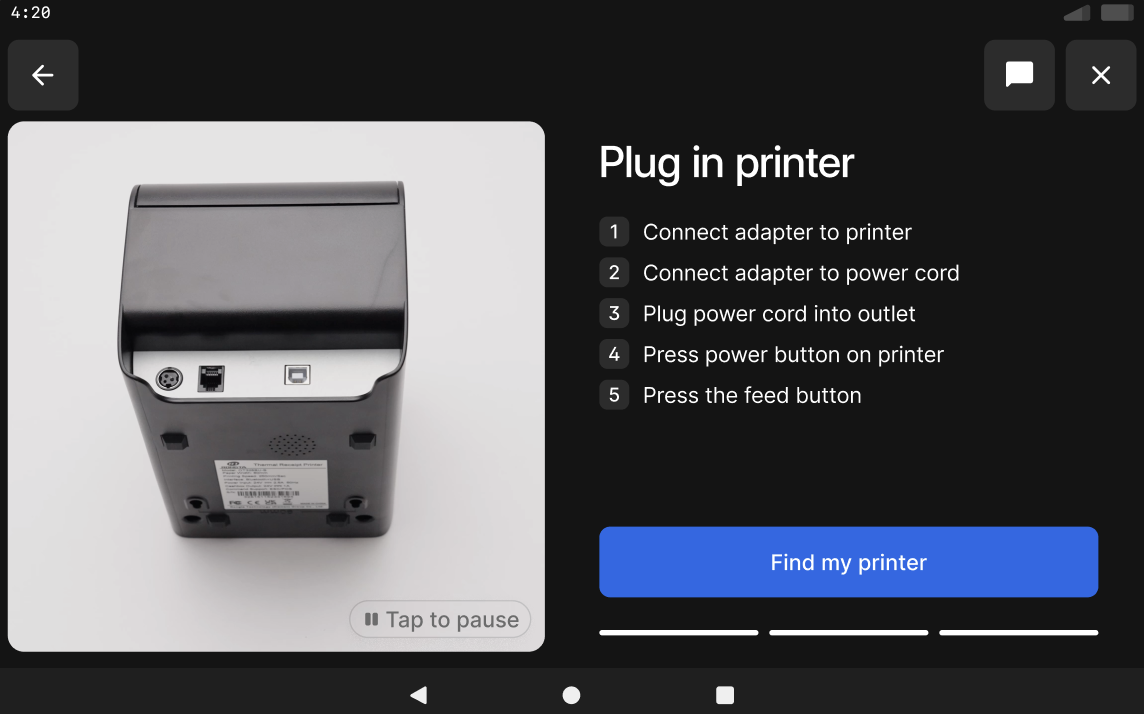

3

Plug in the printer, then click 'Find my printer'



 Screenshot 2023-11-17 at 13.35.39.png
4

Wait for app to search nearby printers



 Screenshot 2023-10-18 at 17.12.36 (1).png

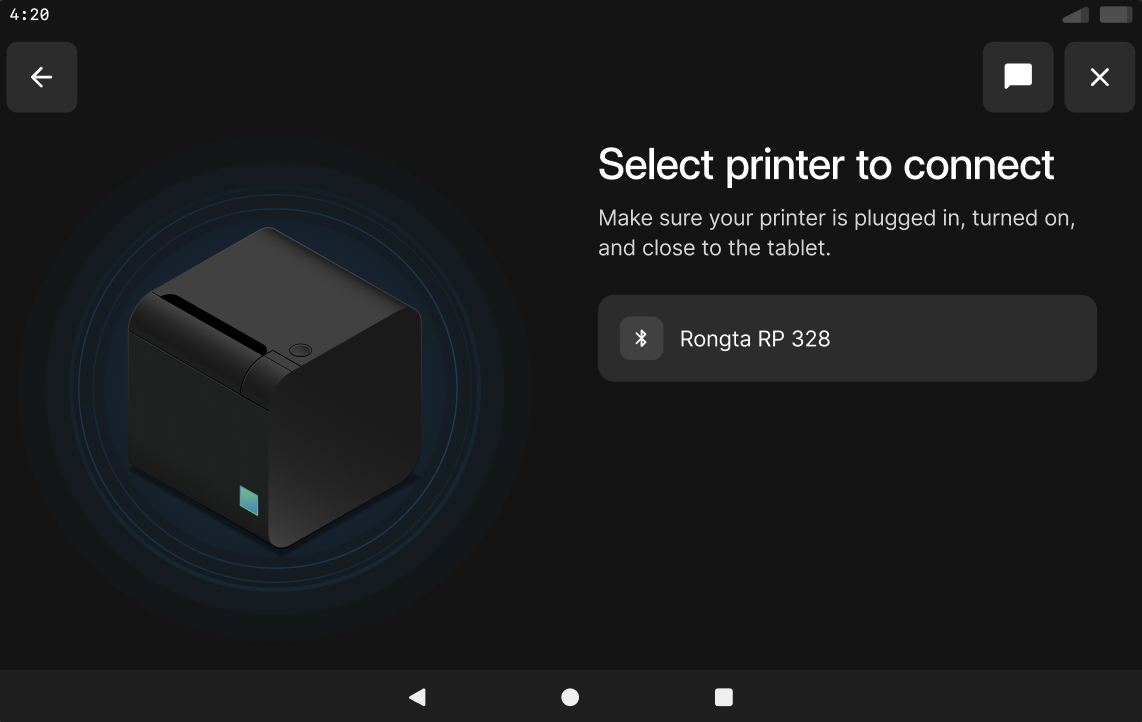

5 Select RP-328 from the printer search result list Screenshot 2023-11-17 at 13.36.05.png
6 Wait for printer to connect Screenshot 2023-10-18 at 17.16.19 (1).png
7 Once the printer connect successfully, the printer connected notification will pop up and a test print ticket will be automatically printed Screenshot 2023-10-18 at 17.18.09 (1).png

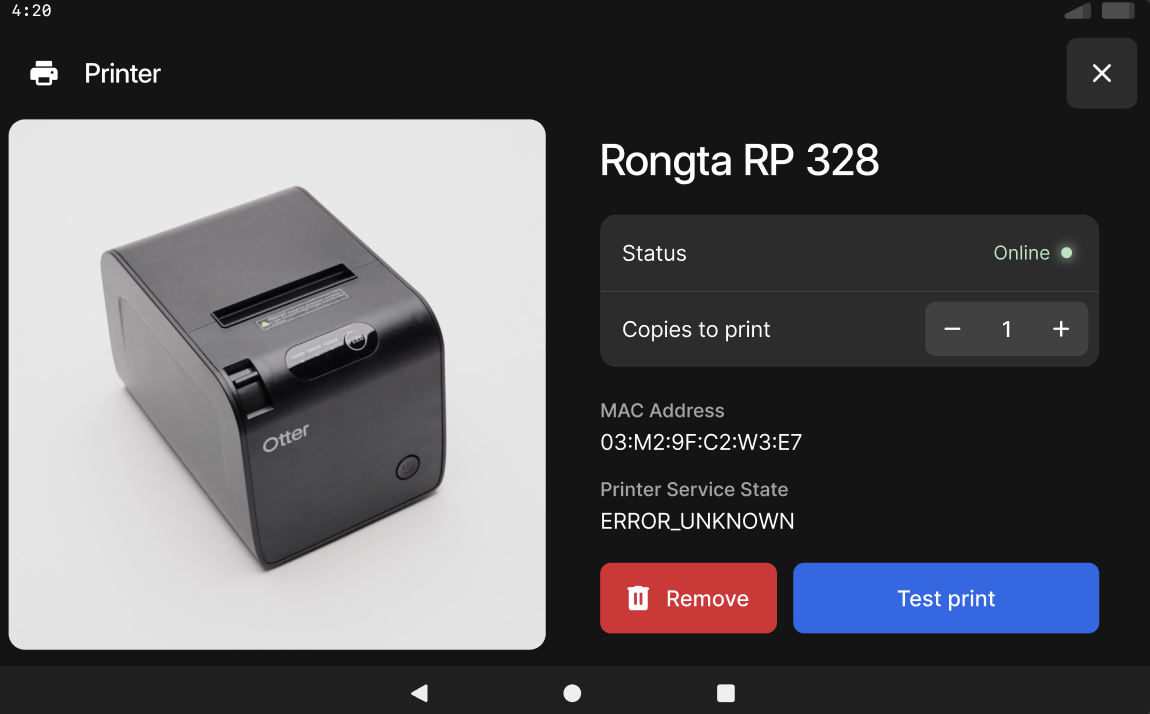

8

After the printer connected notification dismisses, the printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-11-17 at 13.36.49.png

Epson Printers

Printer Setup Instructions: TM-m30ii, TM-m30, TM-m30iii, TM-m30ii-h (Bluetooth)

Step Process Detail
1

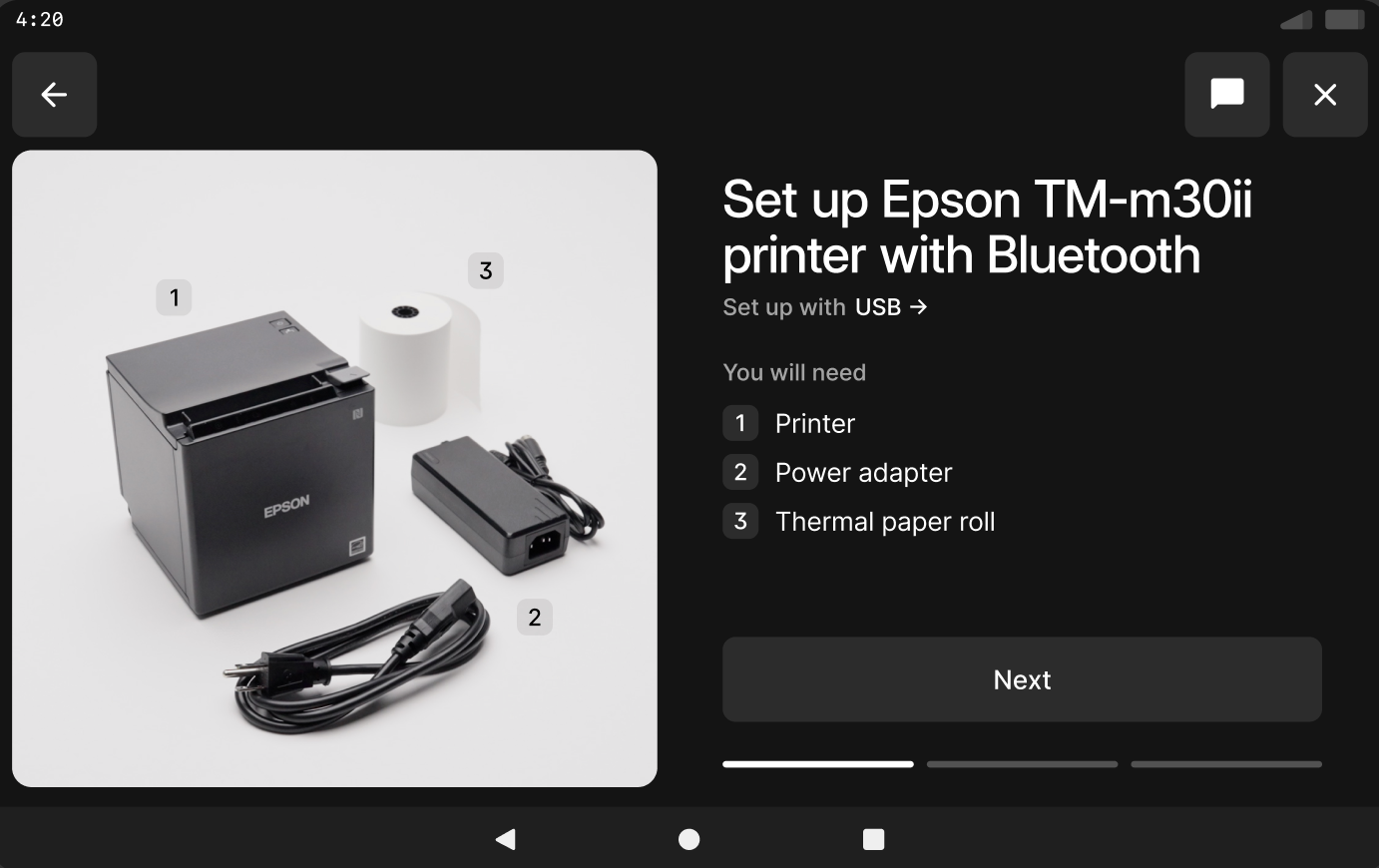

Check printer items and click next

 Screenshot 2023-11-17 at 13.39.30.png

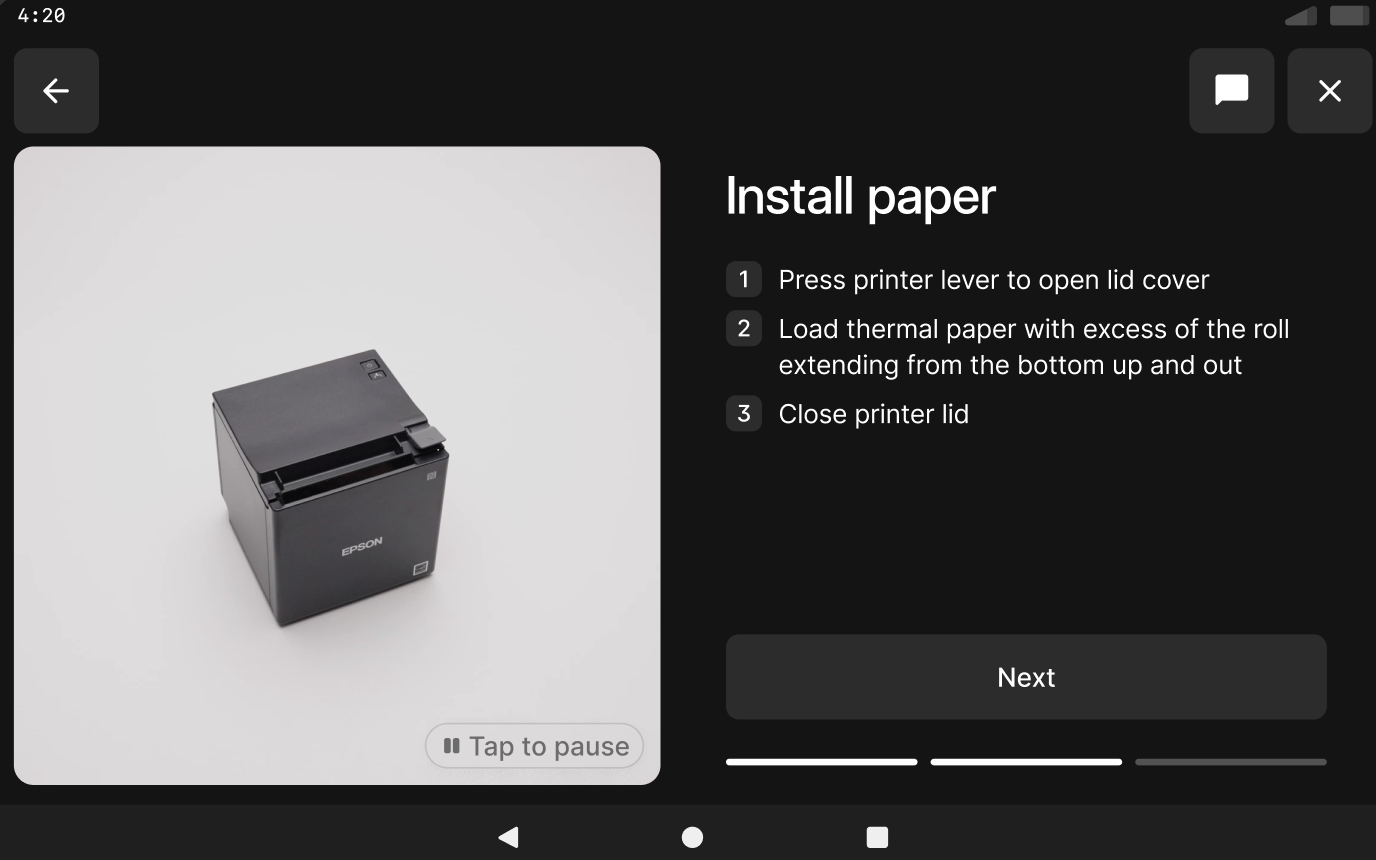

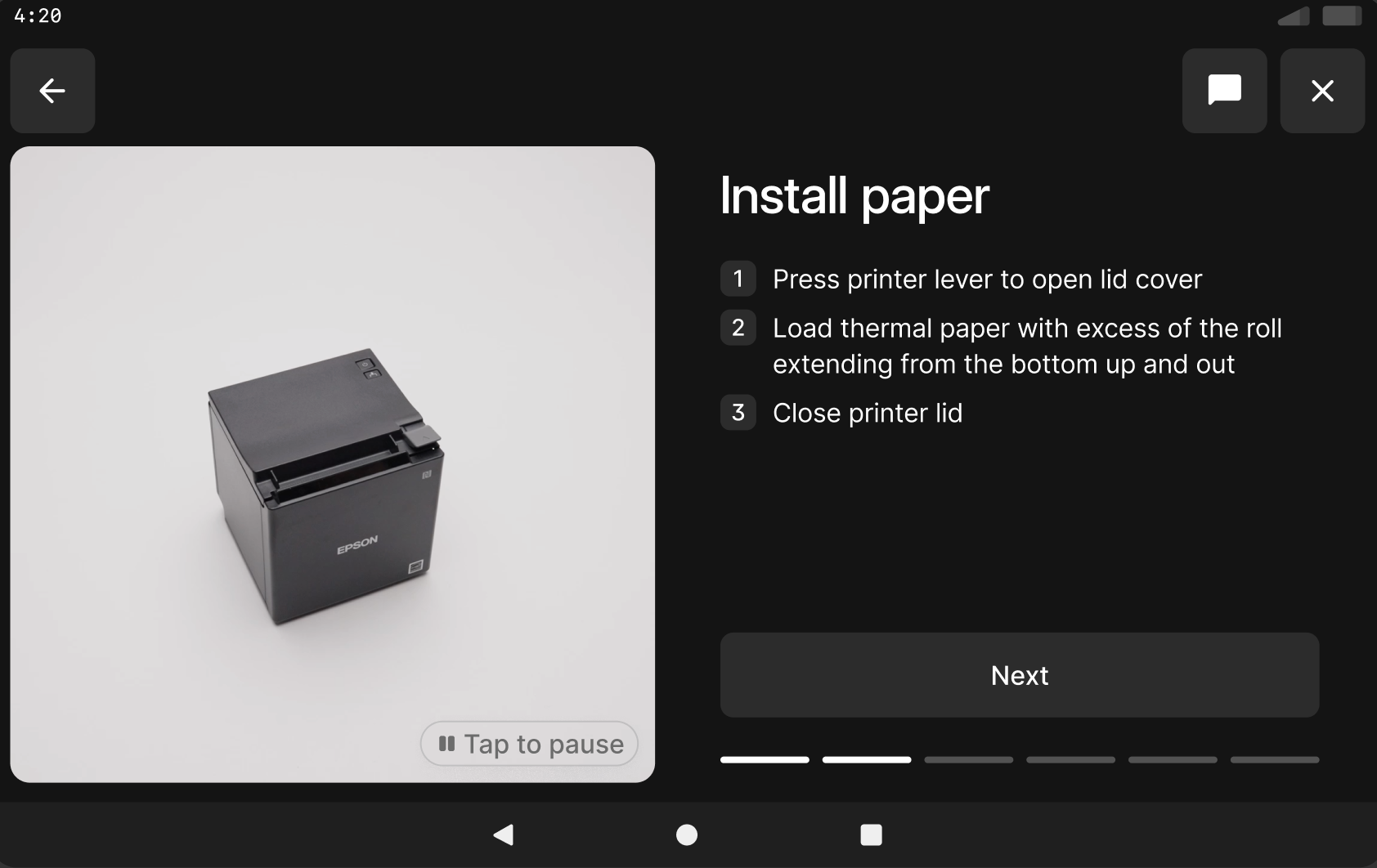

2 Install paper, then click 'Next' Screenshot 2023-11-17 at 13.39.59.png

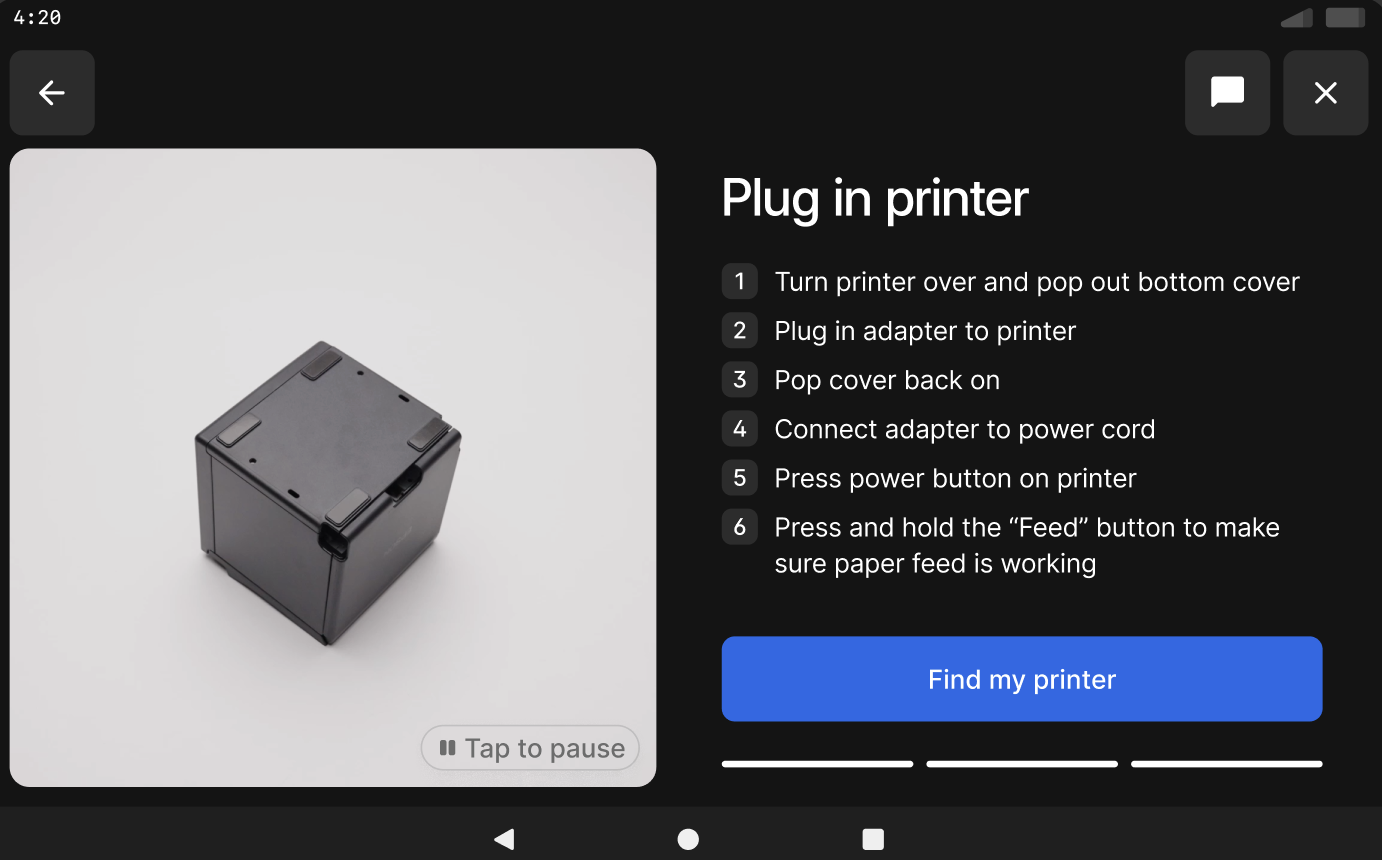

3 Plug in the printer, then click 'Find my printer' Screenshot 2023-11-17 at 13.40.27.png
4 Wait for app to search nearby printers Screenshot 2023-10-18 at 17.12.36 (2).png
5 Select Epson TM-m30ii from the printer search result list Screenshot 2023-11-17 at 13.41.04.png
6 Wait for printer to connect Screenshot 2023-10-18 at 17.16.19 (2).png
7 Once the printer connect successfully, the printer connected notification will pop up and a test print ticket will be automatically printed Screenshot 2023-10-18 at 17.18.09 (2).png
8

After the printer connected notification dismisses, the printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-11-17 at 13.41.47.png

Printer Setup Instructions: TM-m30ii-NT (Ethernet)

Step Process Detail
1

Check printer items and click 'Next'

 Screenshot 2023-11-17 at 13.52.41.png
2

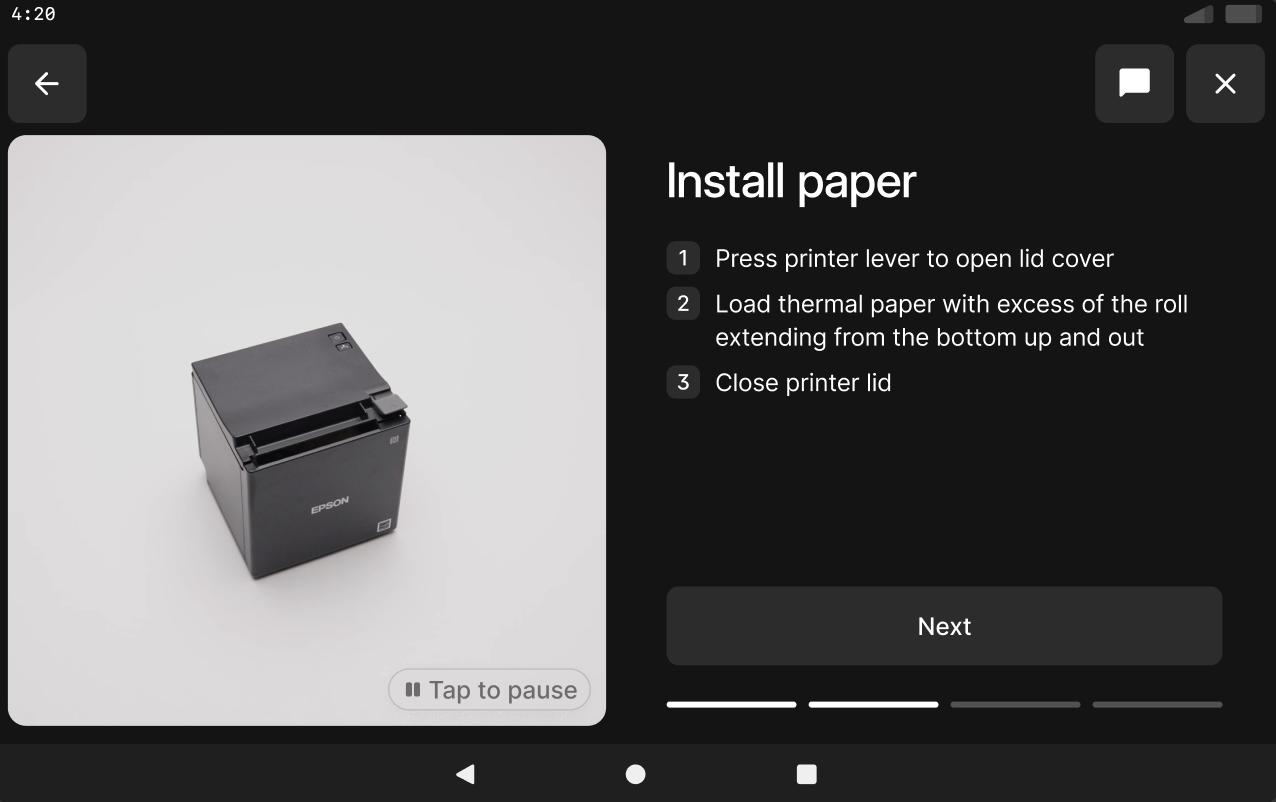

Install paper, then click 'Next'

 Screenshot 2023-11-17 at 13.54.18.png
3

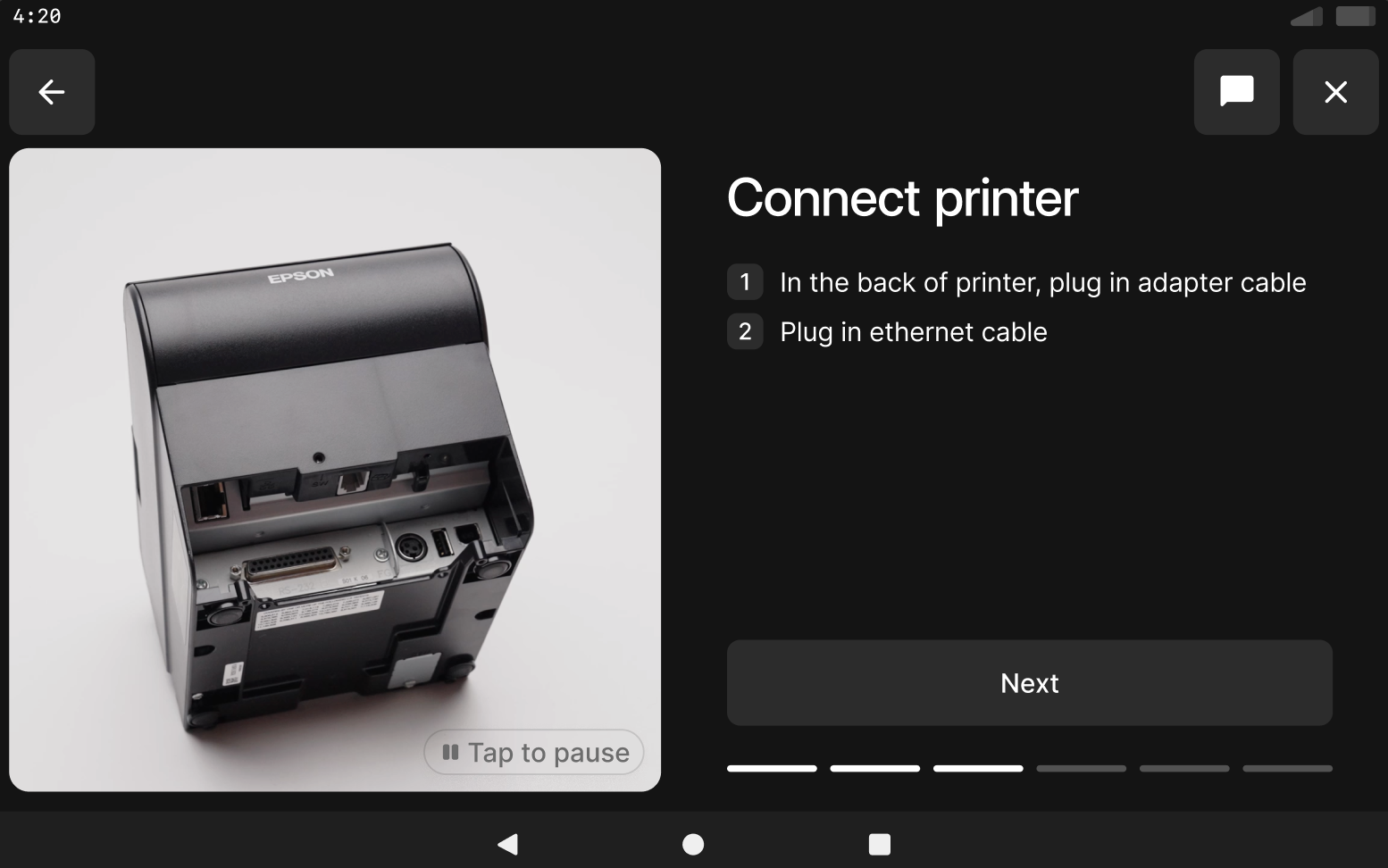

Connect printer, then click 'Next'

 Screenshot 2023-11-17 at 13.55.45.png
4

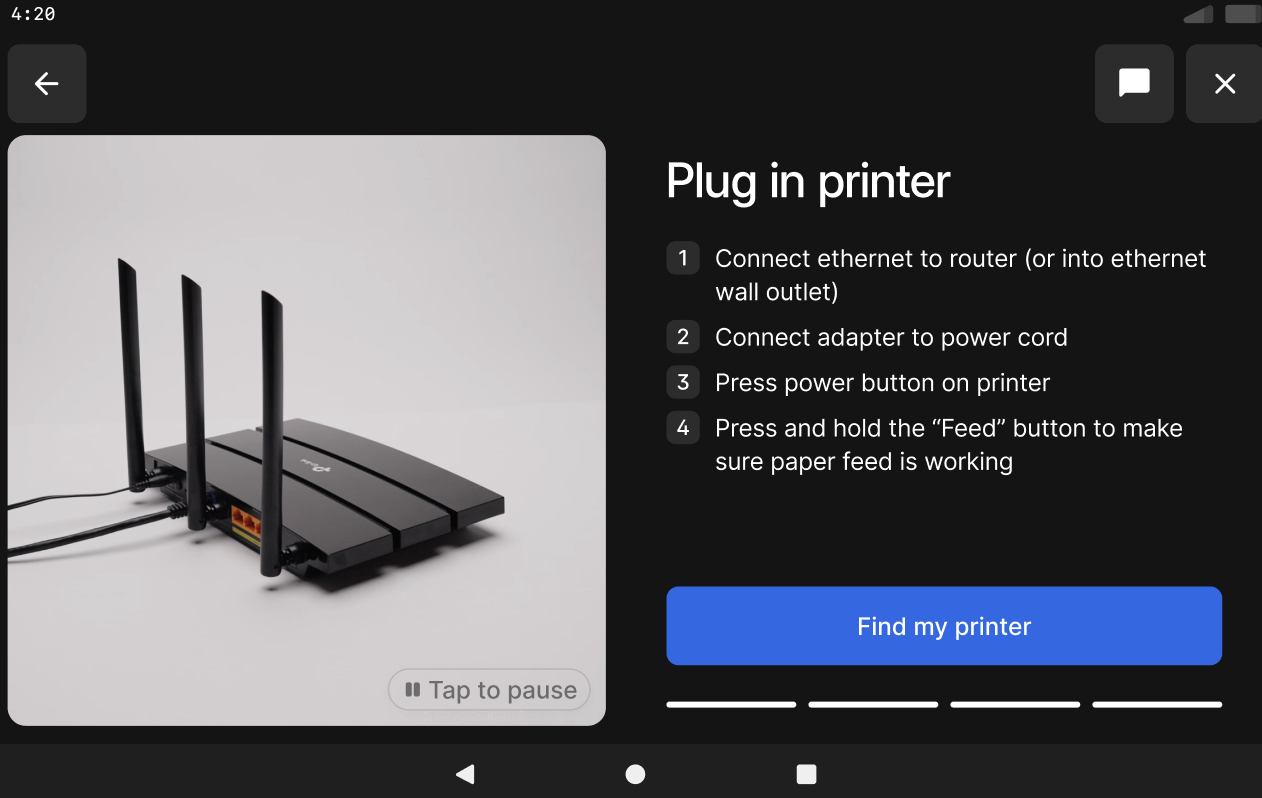

Plug in the printer, then click 'Find my printer'

 Screenshot 2023-11-17 at 13.56.06.png
5

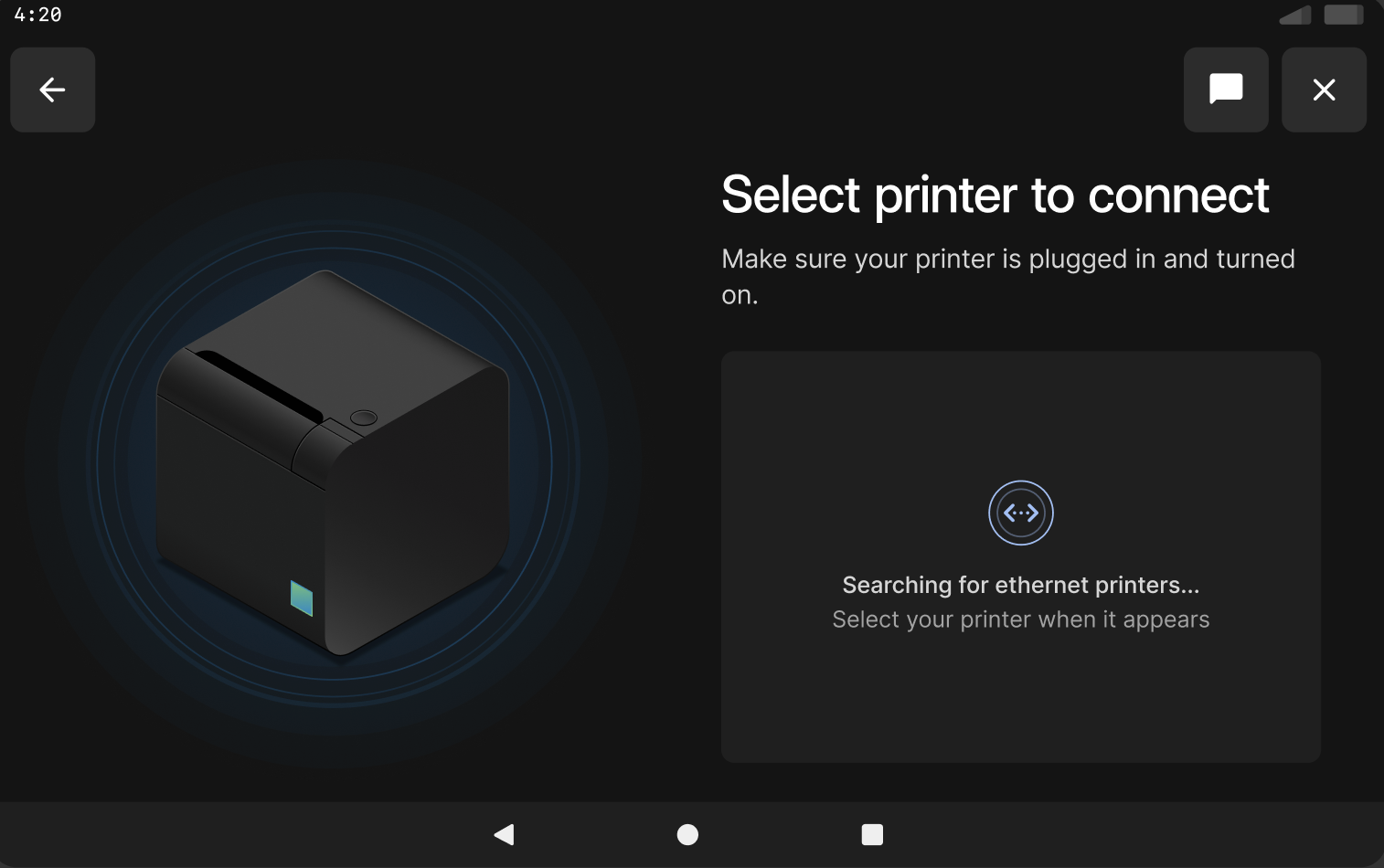

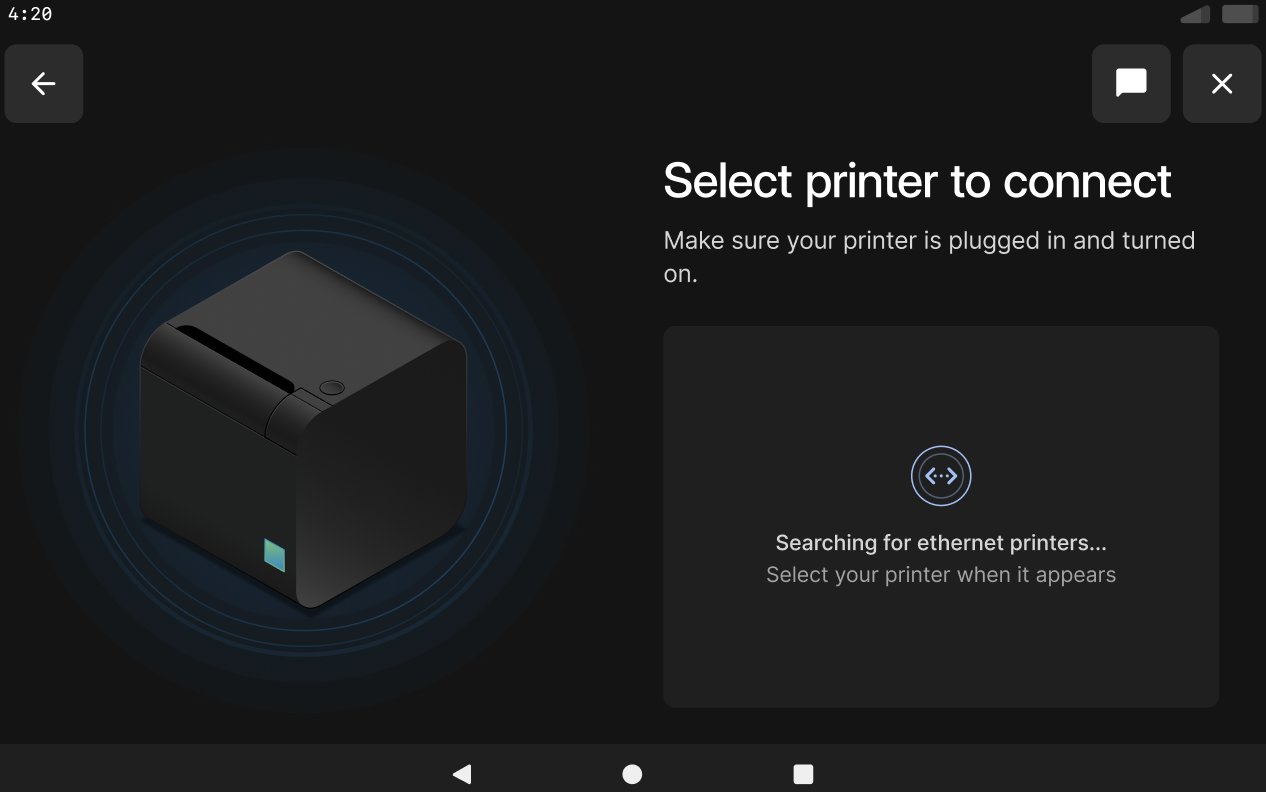

Wait for app to search nearby printers

 Screenshot 2023-11-17 at 13.56.59.png
6

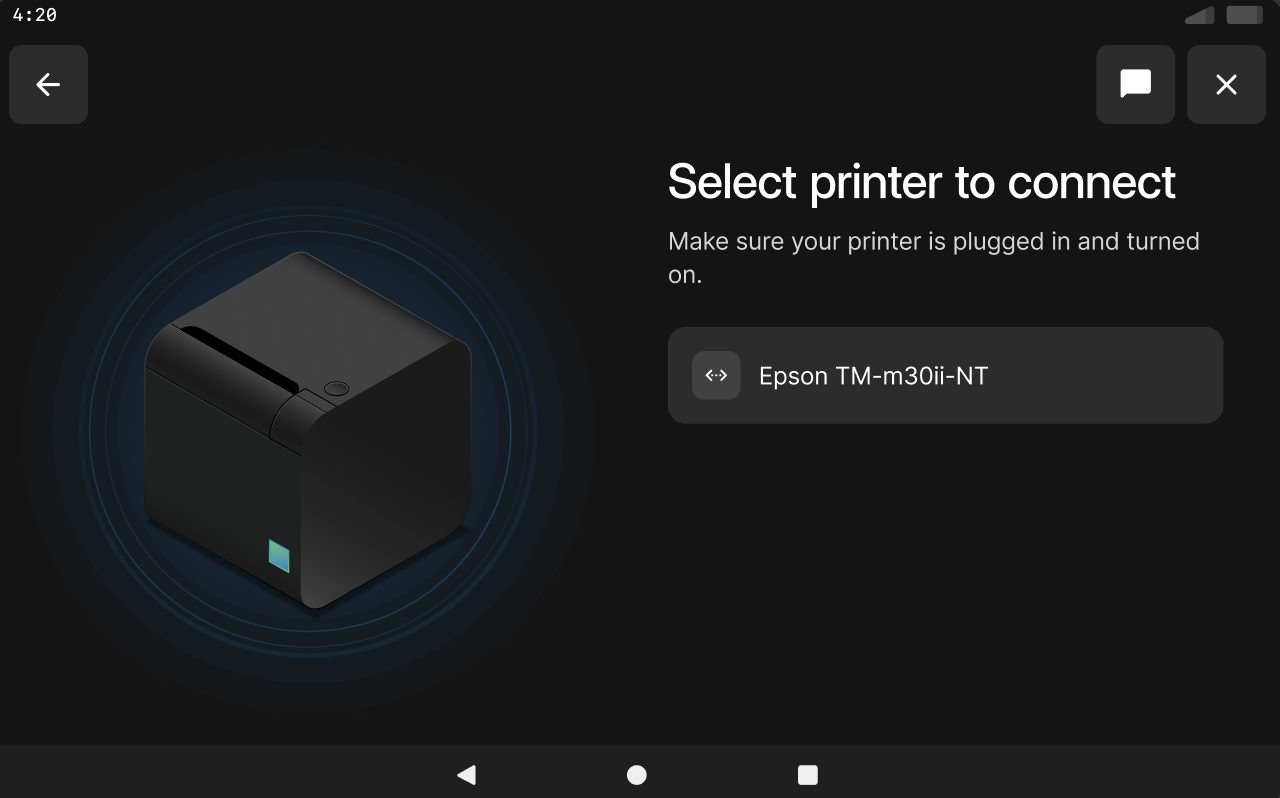

Select Epson TM-m30ii-NT from the printer search result list



 Screenshot 2023-11-17 at 13.57.24.png
7 Wait for printer to connect Screenshot 2023-10-18 at 17.16.19 (3).png
8 Once the printer connect successfully, the printer connected notification will pop up and a test print ticket will be automatically printed Screenshot 2023-10-18 at 17.18.09 (3).png
9

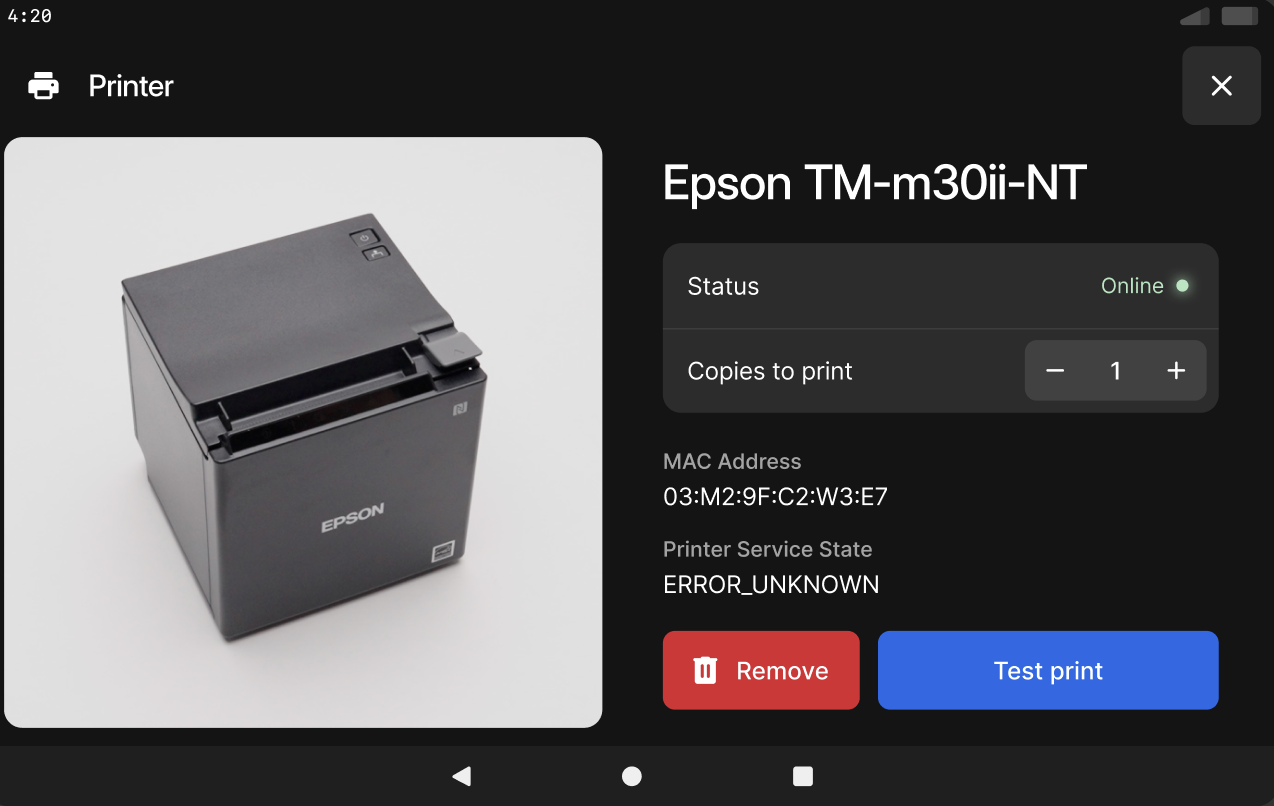

After the 'Printer connected' notification dismisses, printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-11-17 at 13.57.58.png

Printer Setup Instructions: TM-m30ii-NT (TP-link)

Step Process Detail

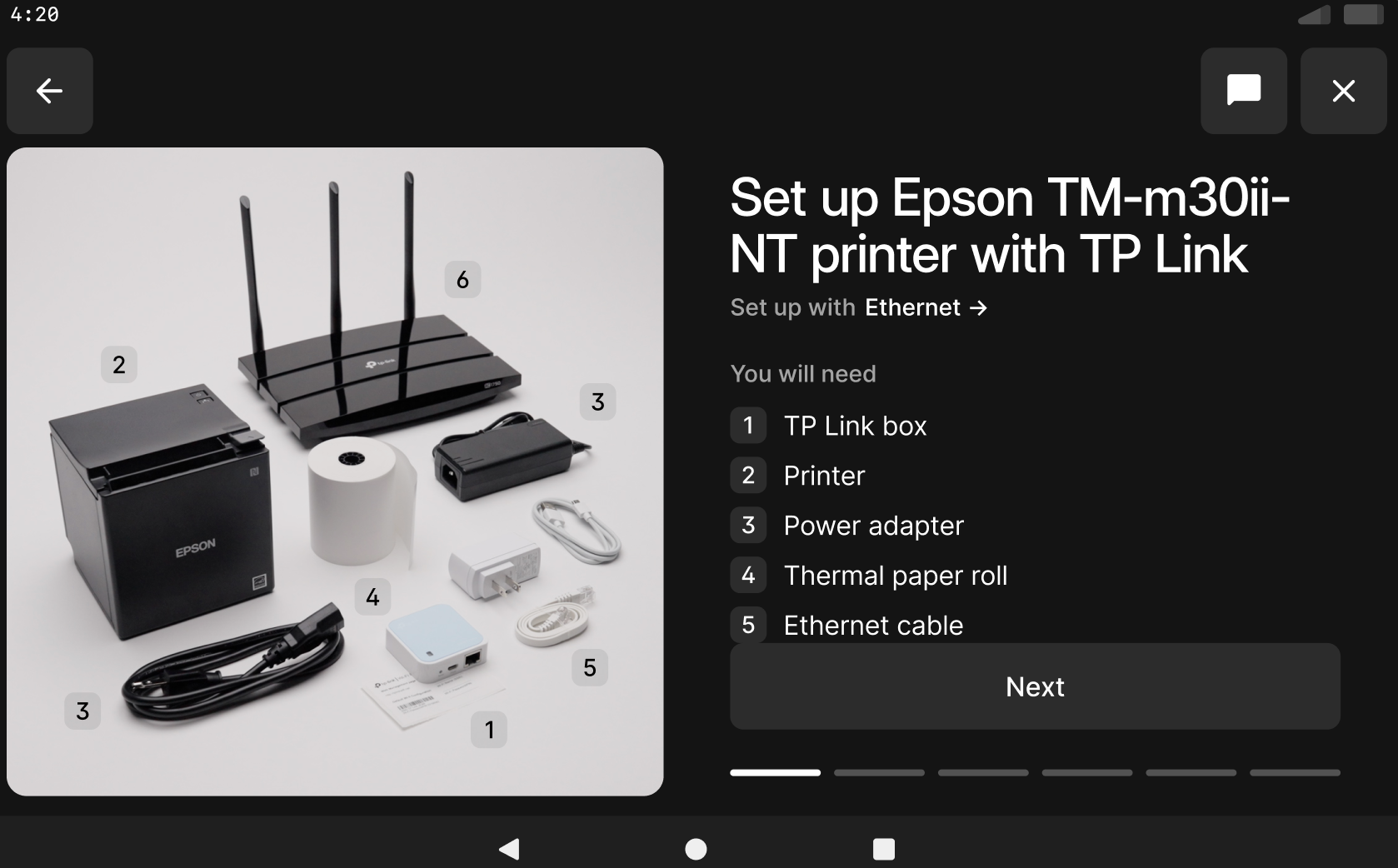

1

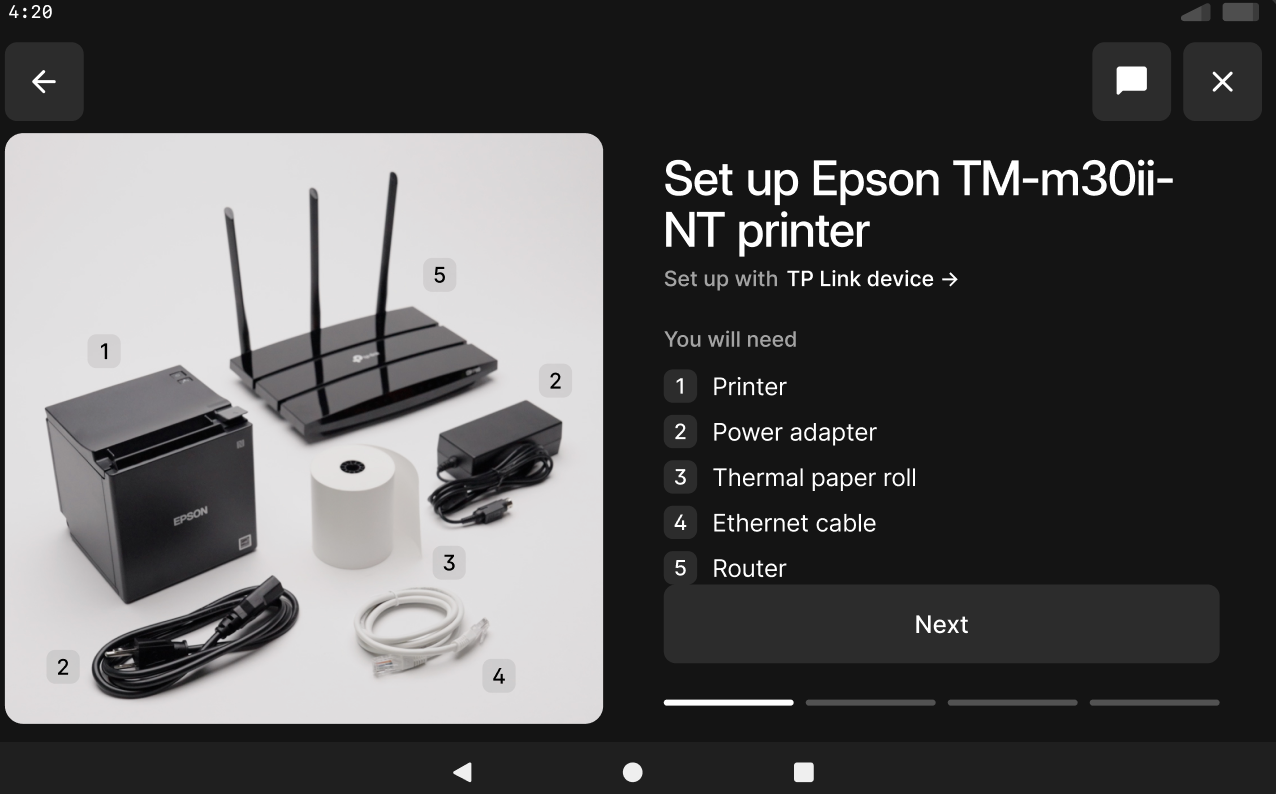

Check printer items and click next

 Screenshot 2023-11-17 at 13.59.48.png
2

Install paper, then click next

 Screenshot 2023-11-17 at 14.00.15.png
3

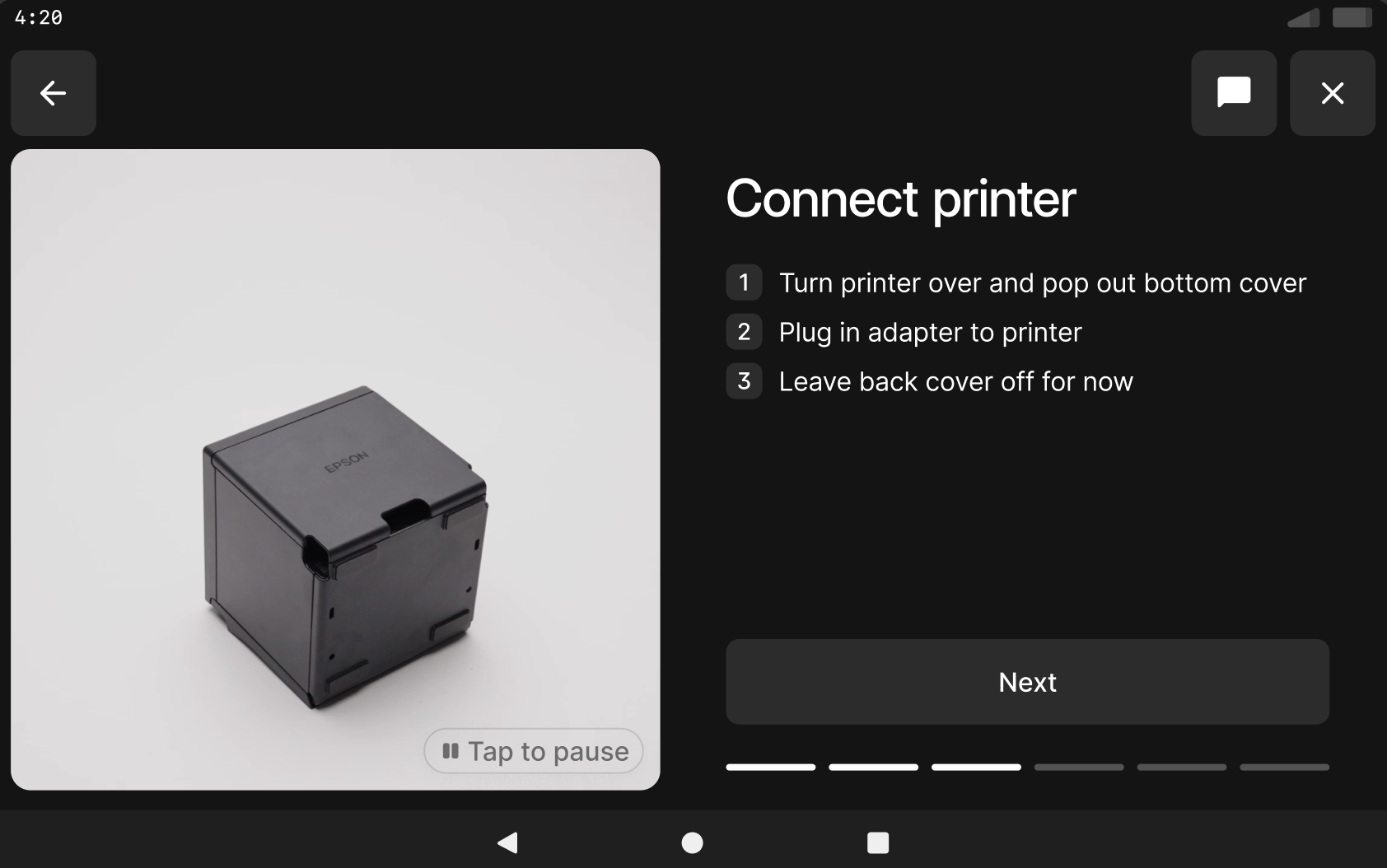

Connect printer, then click next

 Screenshot 2023-11-17 at 14.01.13.png
4

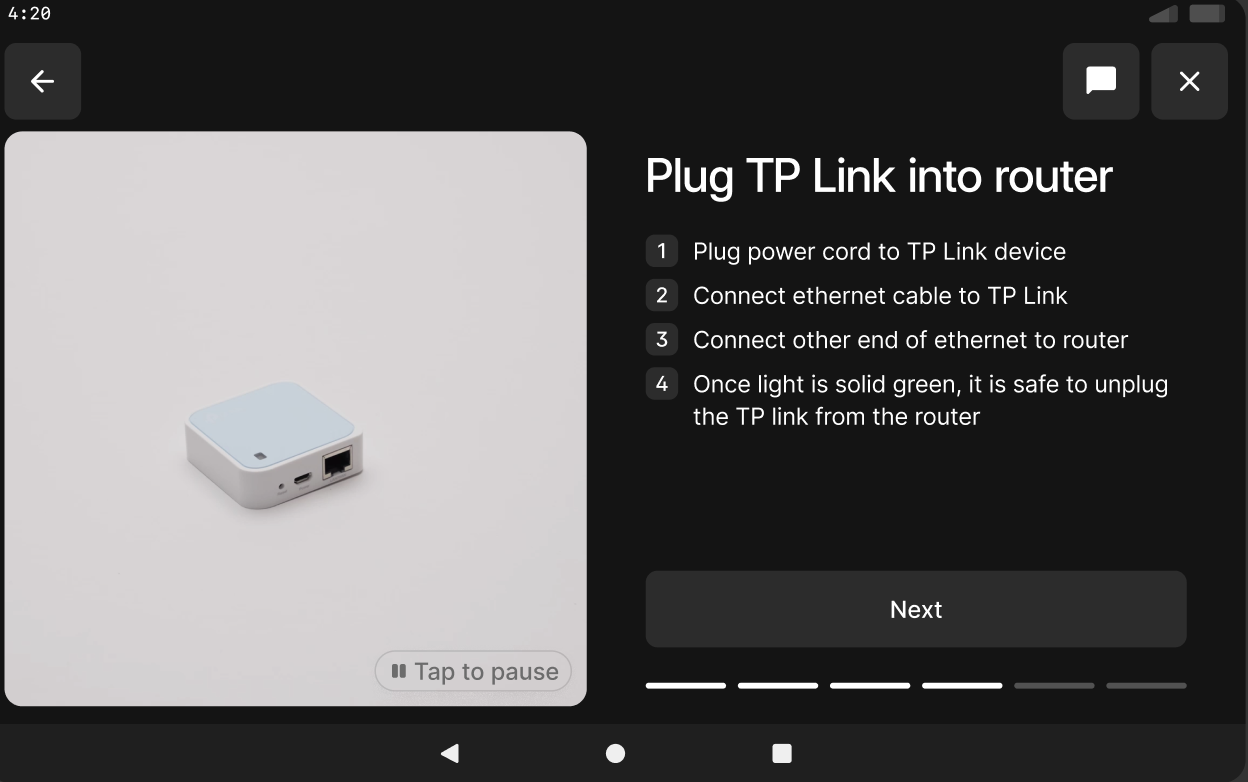

Plug TP Link into router, then click 'Next'

 Screenshot 2023-11-17 at 14.02.17.png
5

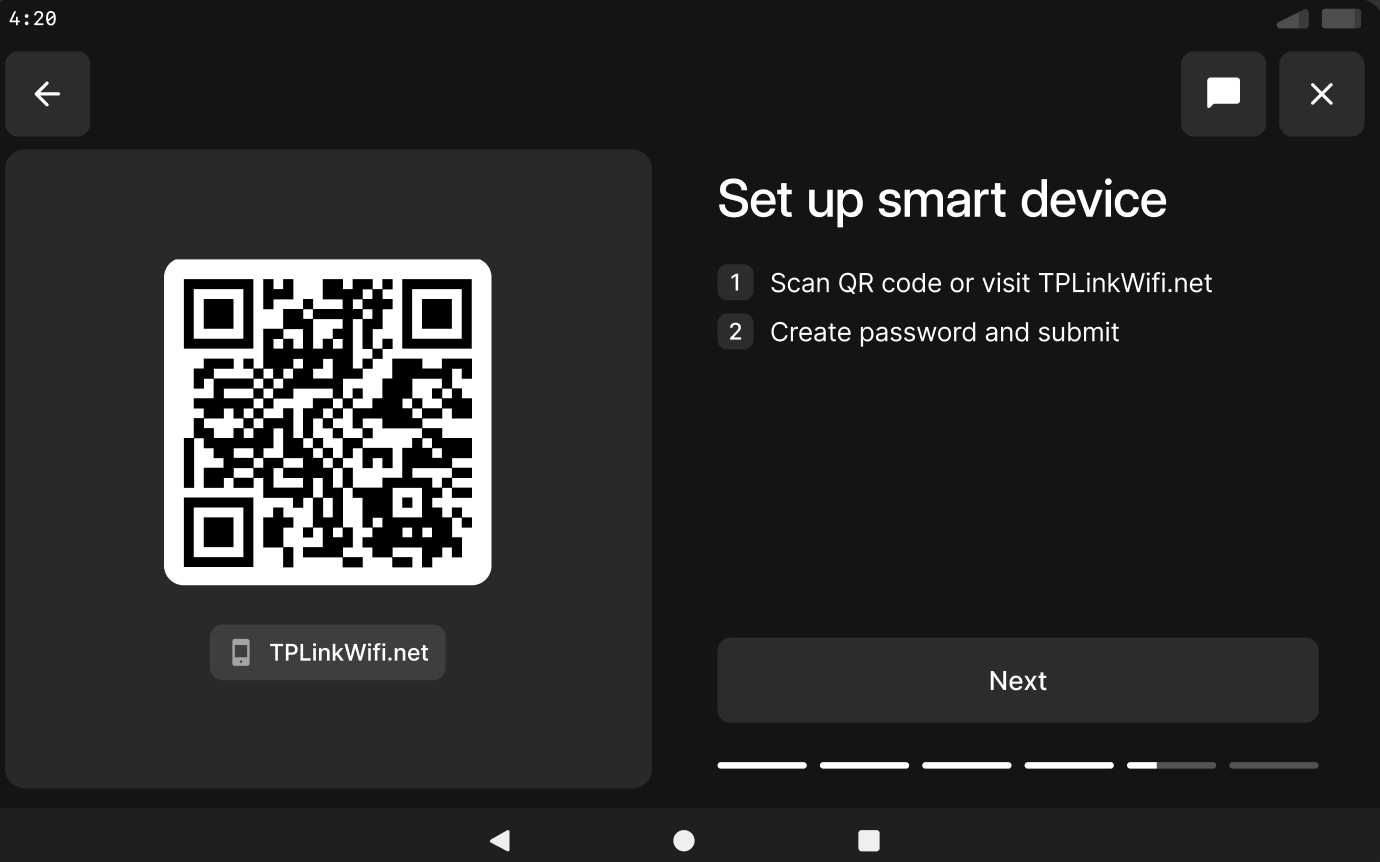

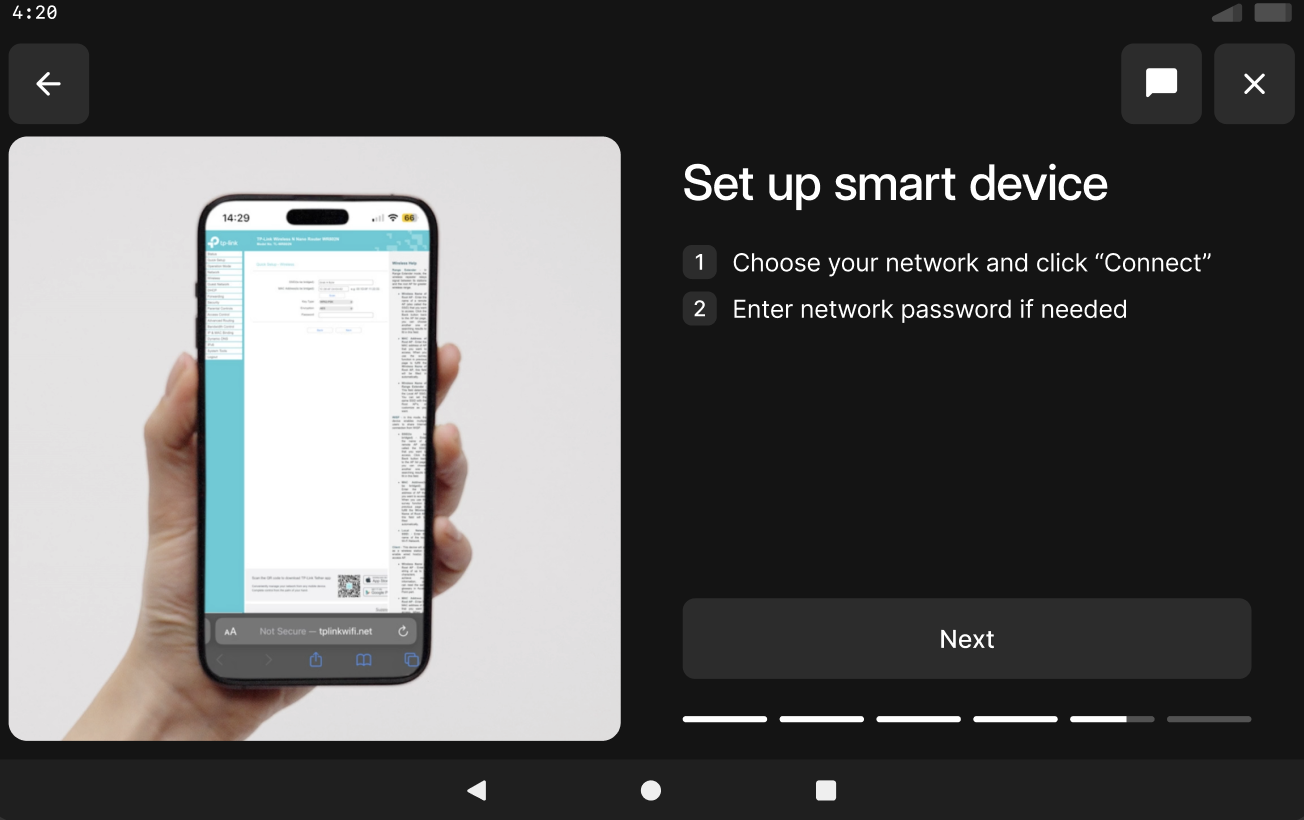

Set up smart device, then click 'Next'

 Screenshot 2023-11-17 at 14.03.29.png
6

Set up smart device (2/6), then click 'Next'

 Screenshot 2023-11-17 at 14.05.05.png

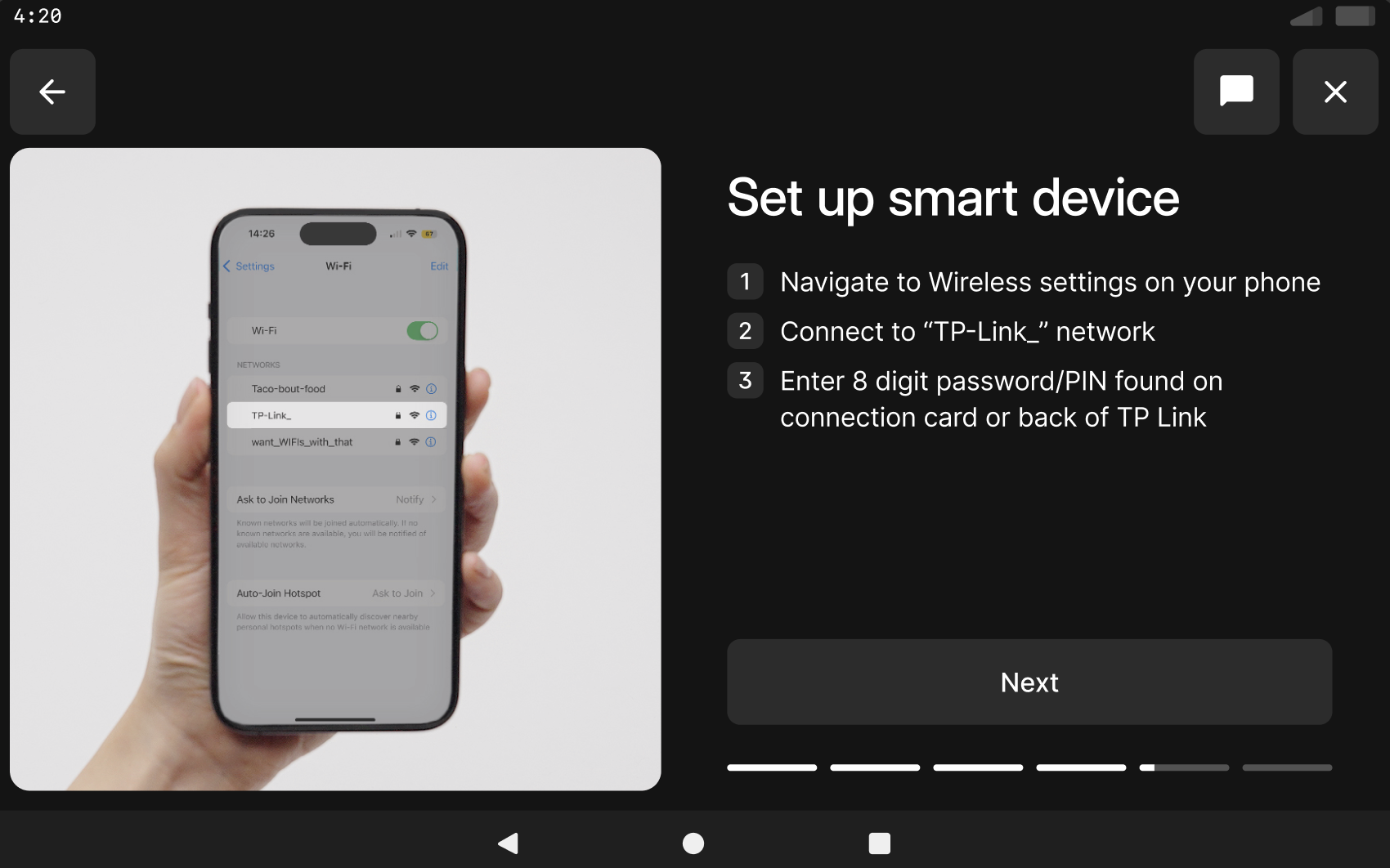

7

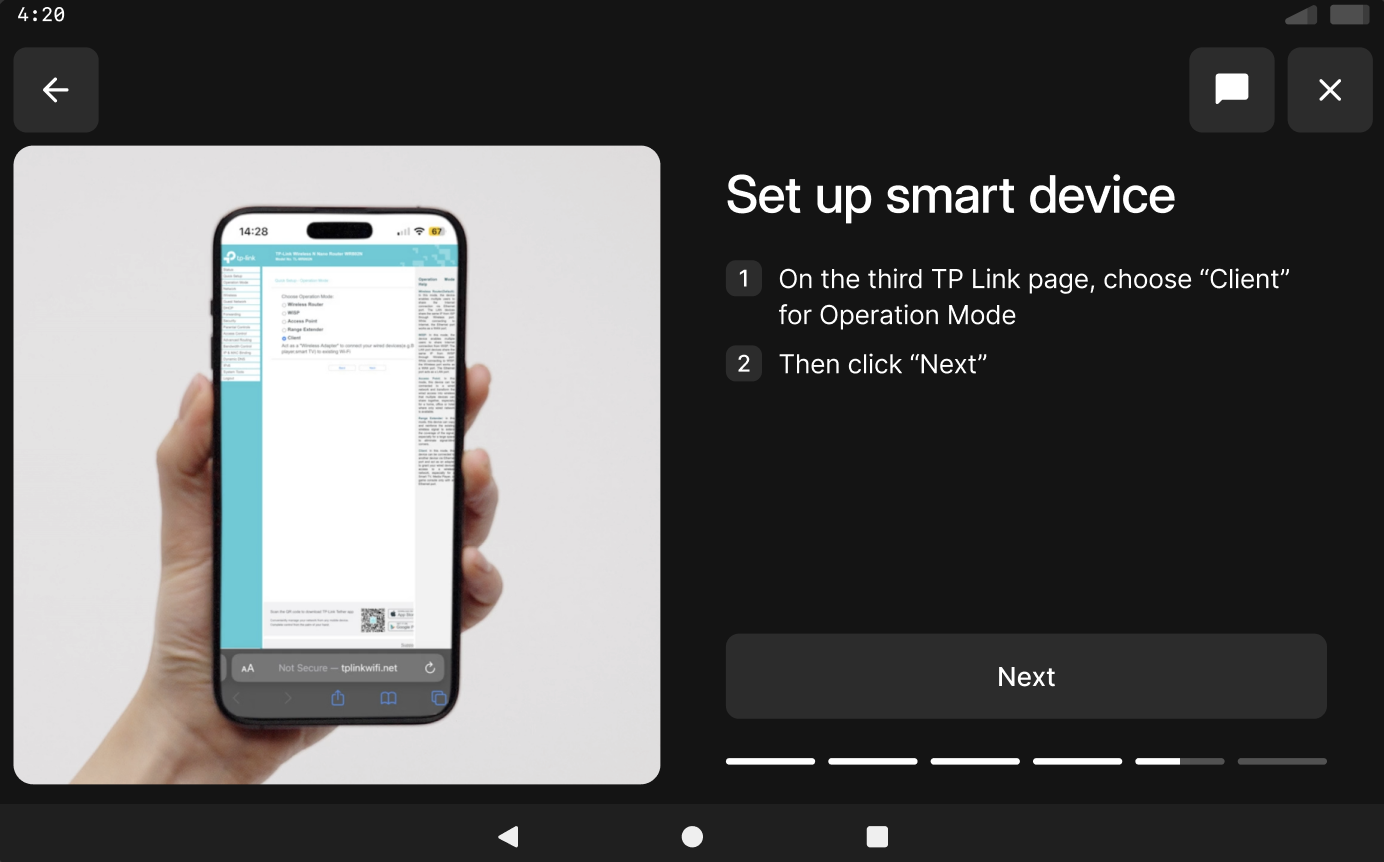

Set up smart device (3/6), then click 'Next'

 Screenshot 2023-11-17 at 14.05.30.png
8 Set up smart device (4/6), then click 'Next' Screenshot 2023-11-17 at 14.07.03.png

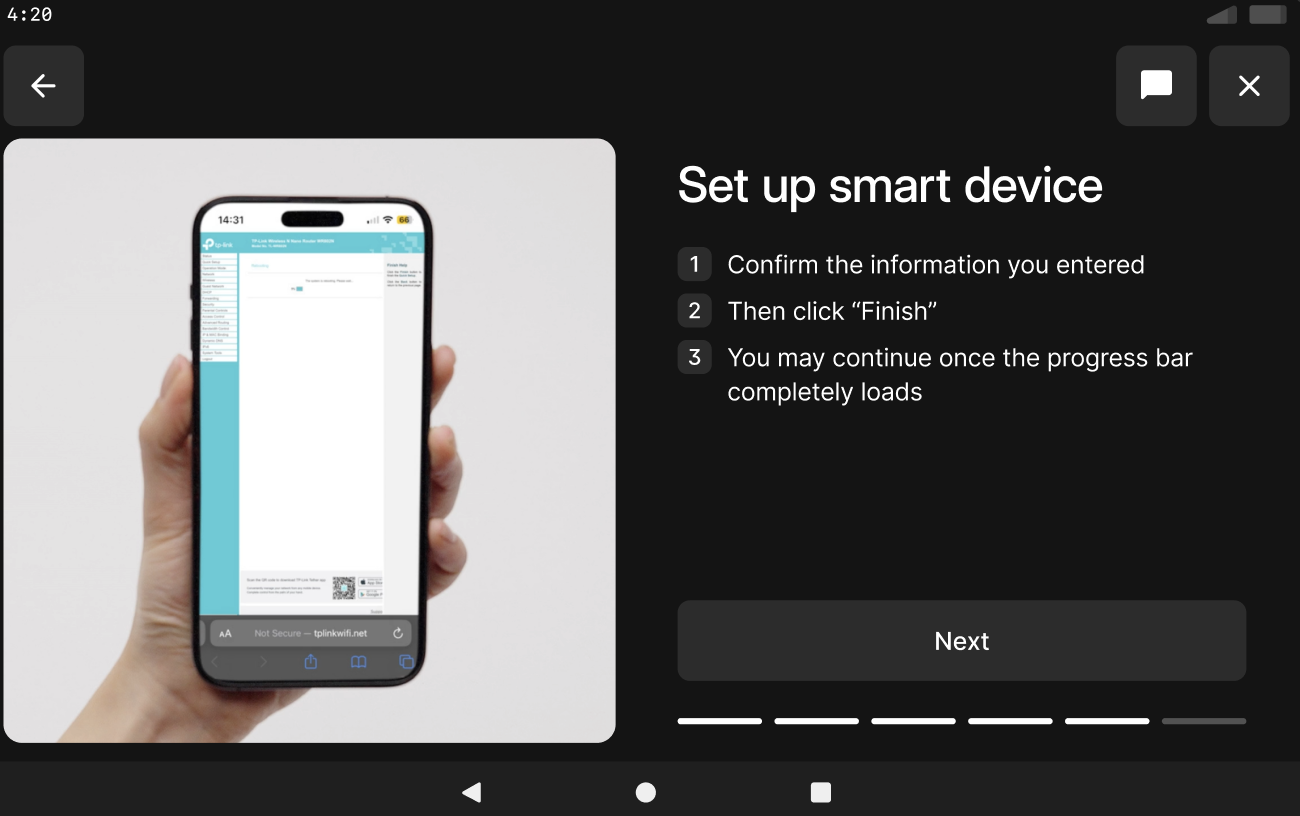

9 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.07.24.png
10 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.07.41.png
11

Plug in Printer, then click 'Find my printer'

 Screenshot 2023-11-17 at 14.10.21.png
12

Wait for the app to search nearby printer

 Screenshot 2023-11-17 at 14.10.41.png
13

Select Epson TM-m30ii-NT from the printer search result list

 Screenshot 2023-11-17 at 14.11.08.png
14

Wait for printer to connect

 Screenshot 2023-10-18 at 17.16.19 (4).png
15

Once the printer is successfully connected, the printer connected notification will pop up and a test ticket will be automatically printed

 Screenshot 2023-10-18 at 17.18.09 (4).png
16

After the 'Printer connected' notification dismisses, printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-11-17 at 13.57.58 (1).png

Printer Setup Instructions: TM-T88VI (Ethernet)

Step Process Detail
1

Check printer items and click 'Next'

 Screenshot 2023-11-17 at 14.18.24.png
2

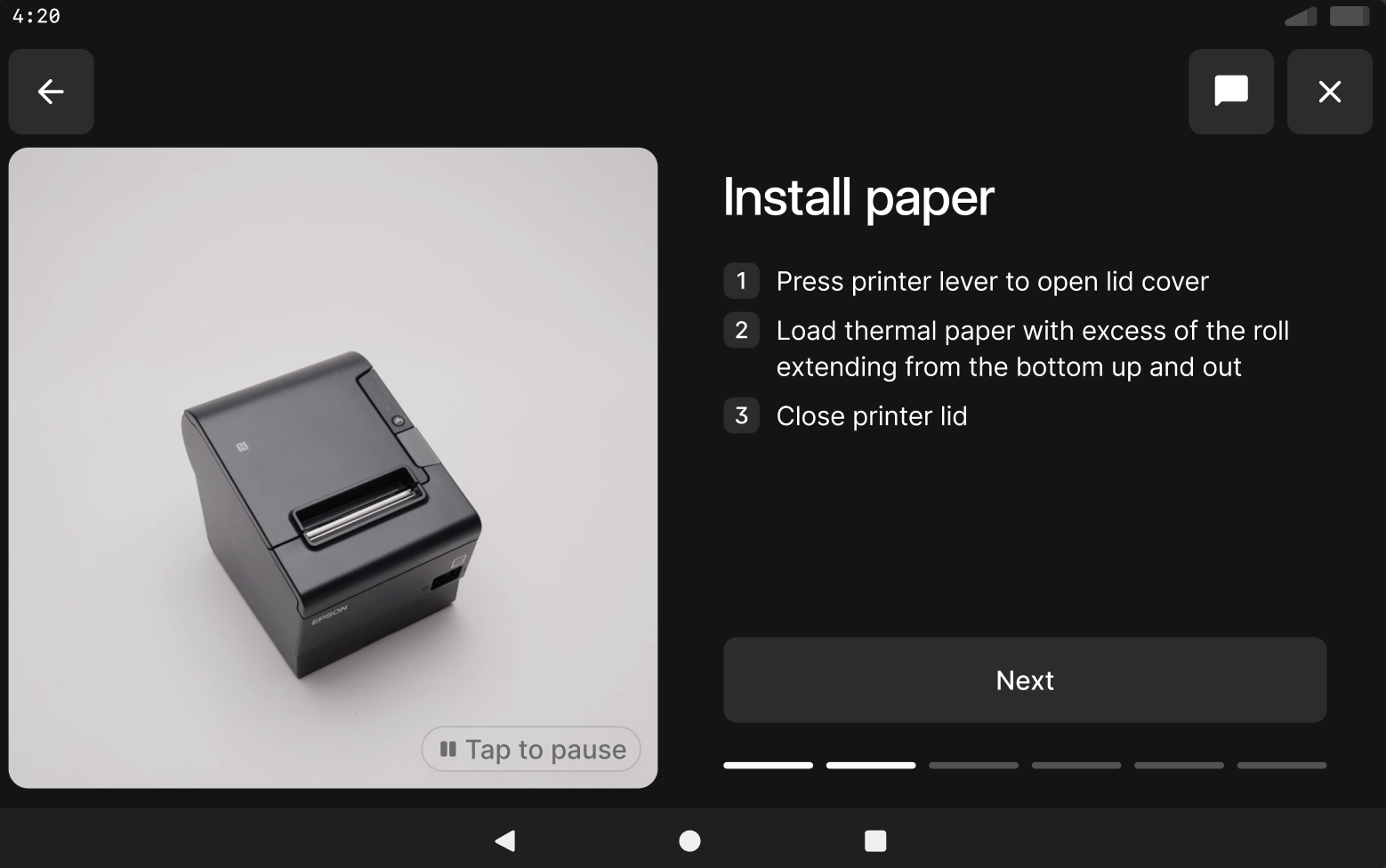

Install paper, then click 'Next'

 Screenshot 2023-11-17 at 14.18.47.png
3

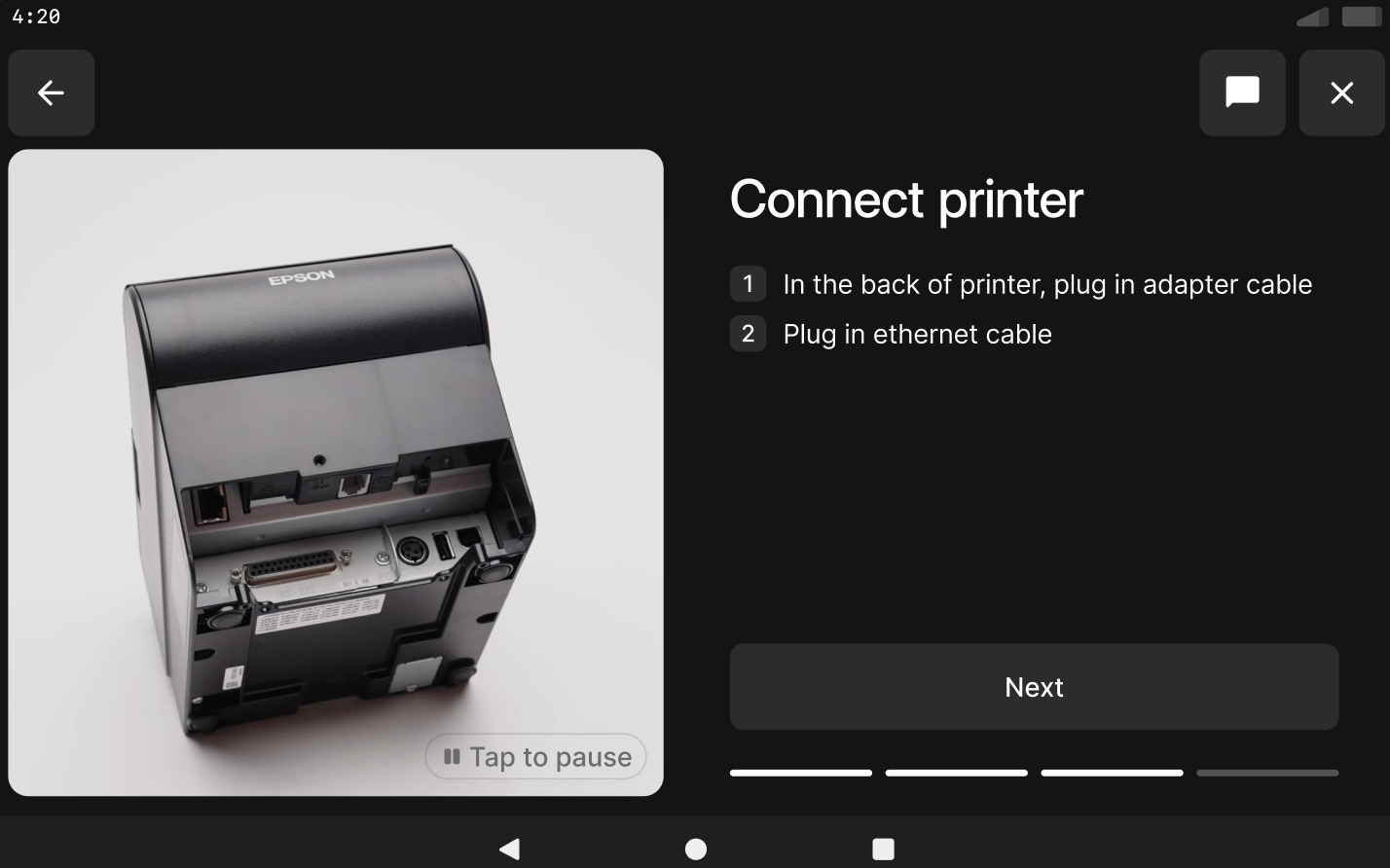

Connect printer, then click 'Next'

 Screenshot 2023-11-17 at 14.19.11.png
4 Plug in the printer, then click 'Find my printer' Screenshot 2023-11-17 at 13.56.06 (1).png
5 Wait for the app to search nearby printers Screenshot 2023-11-17 at 13.56.59 (1).png

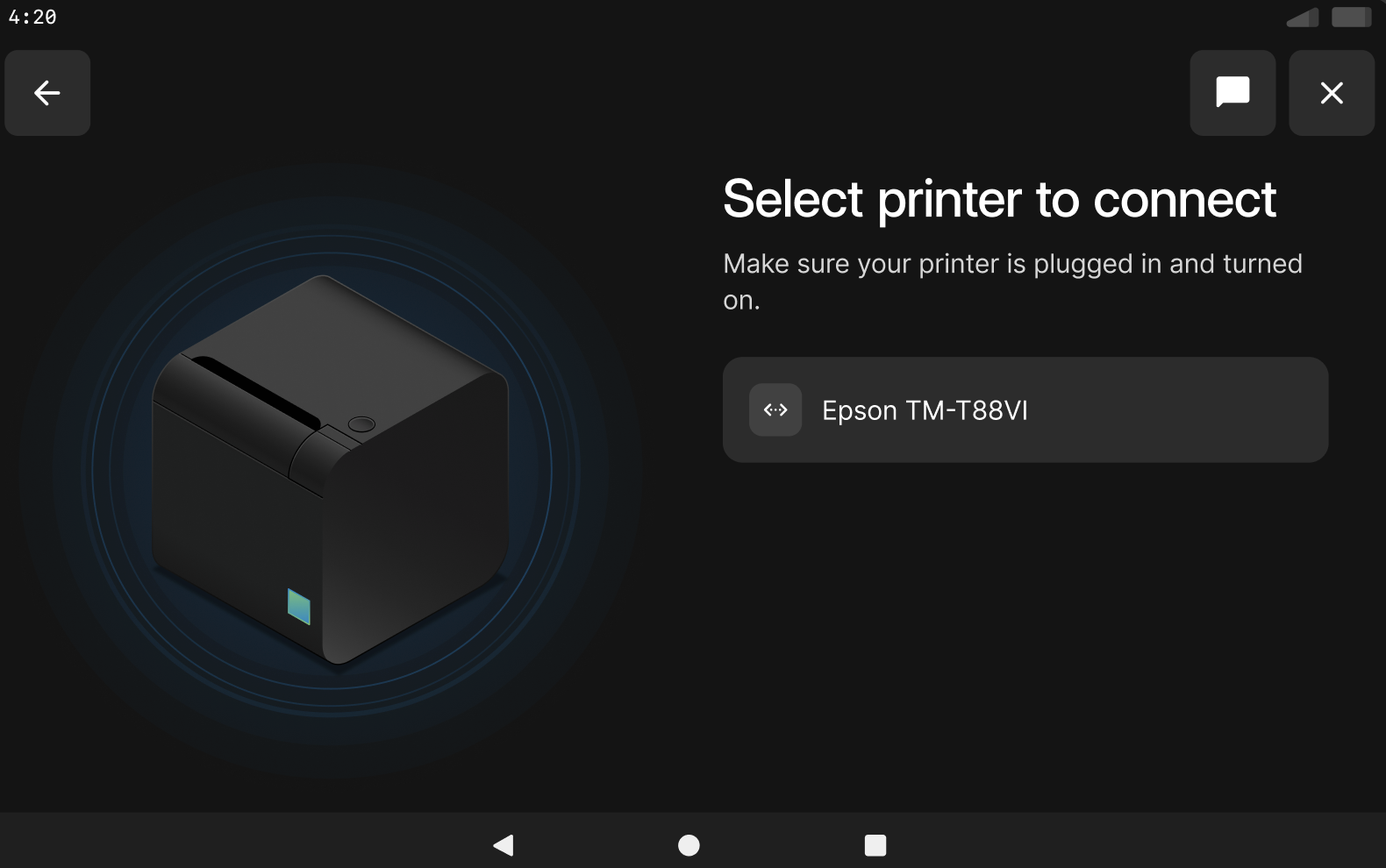

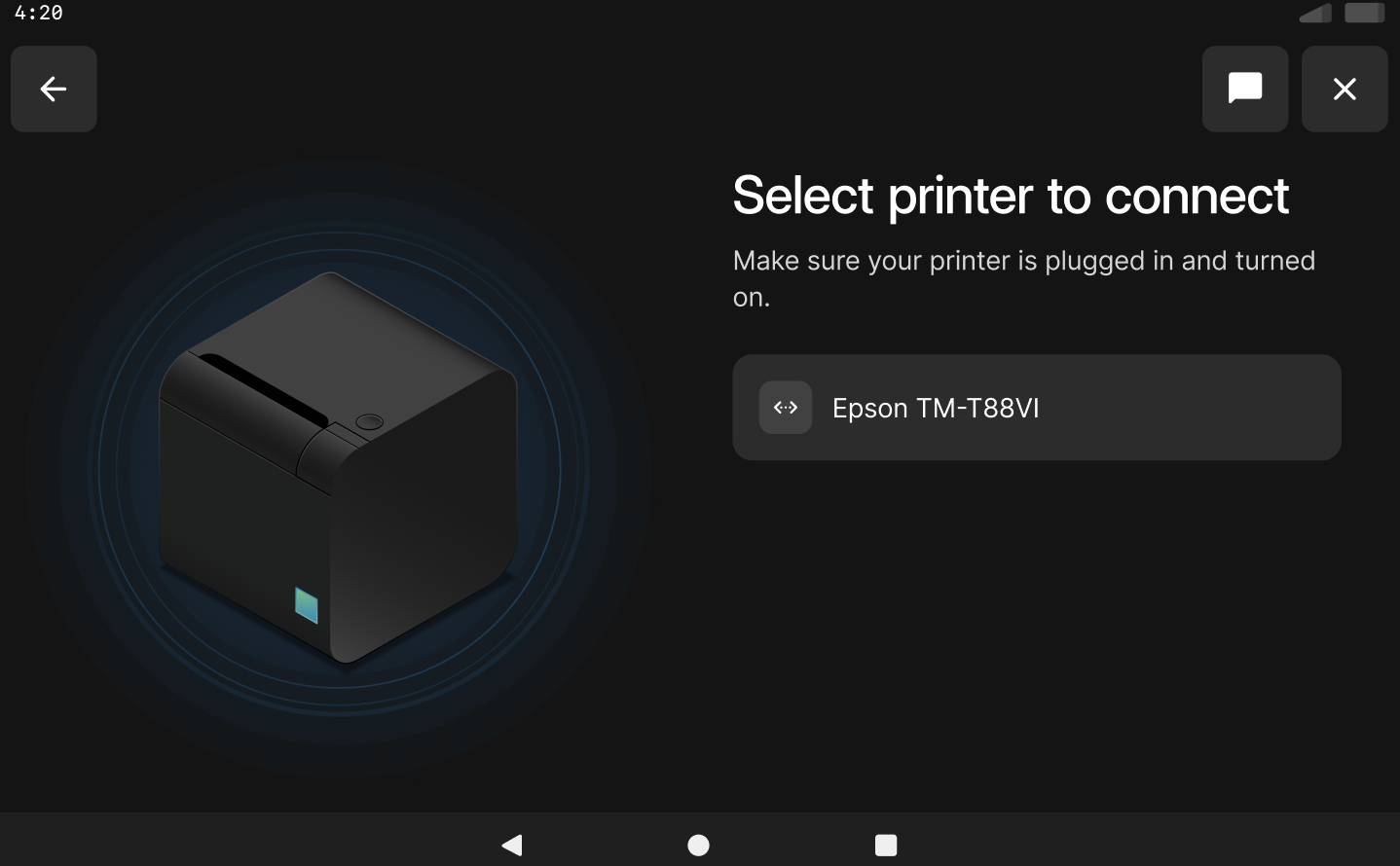

6 Select Epson TM-T88VI from the printer search result list Screenshot 2023-11-17 at 14.19.45.png
7

Wait for printer to connect

 Screenshot 2023-10-18 at 17.16.19 (5).png
8

Once the printer connects successfully, the printer connected notification will pop up and a test ticket will be automatically printed

 Screenshot 2023-10-18 at 17.18.09 (5).png
9

After the 'Printer connected' notification dismisses, printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-11-17 at 14.20.17.png

Printer Setup Instructions: TM-T88VI (TP-link)

Step Process Detail

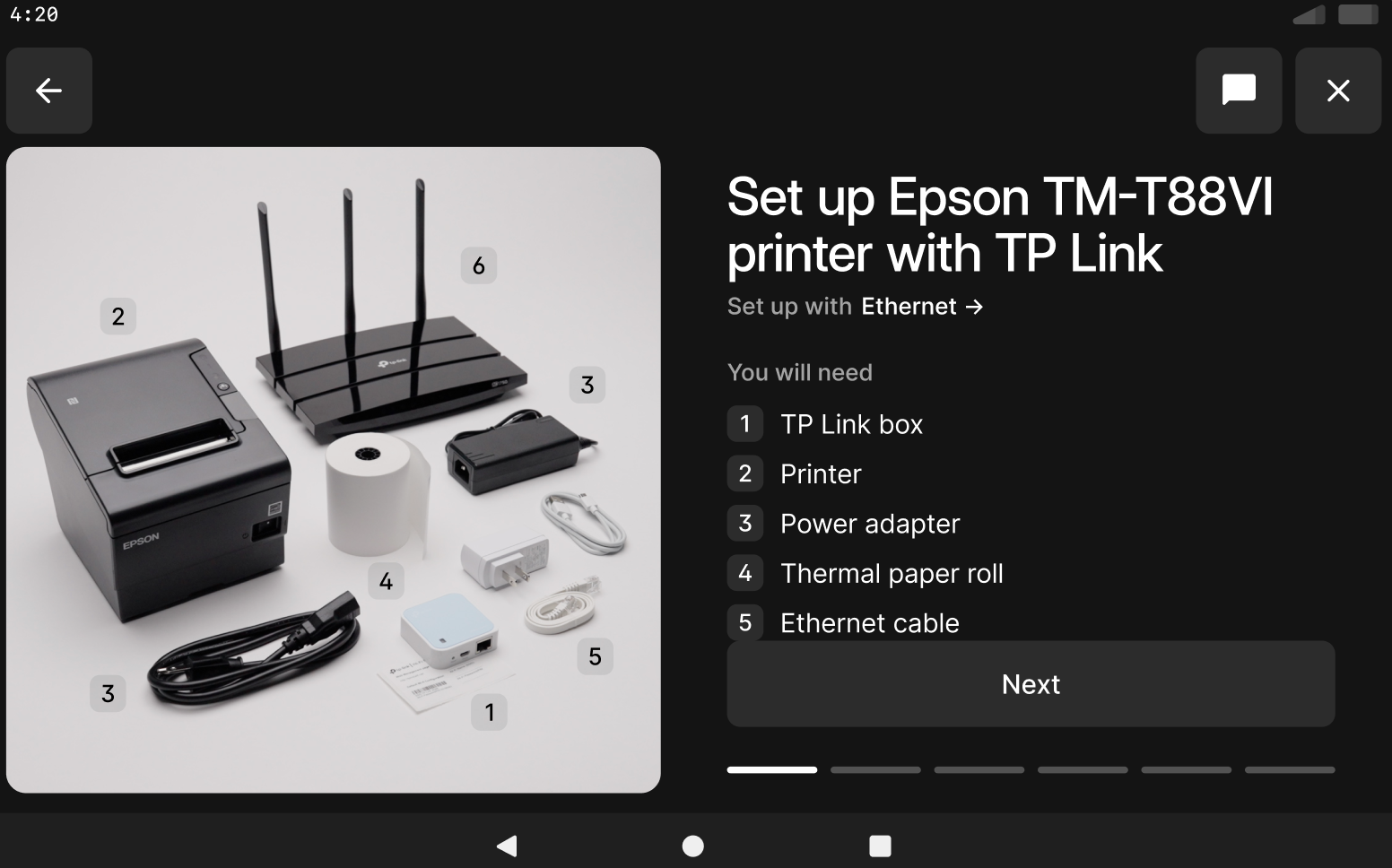

1

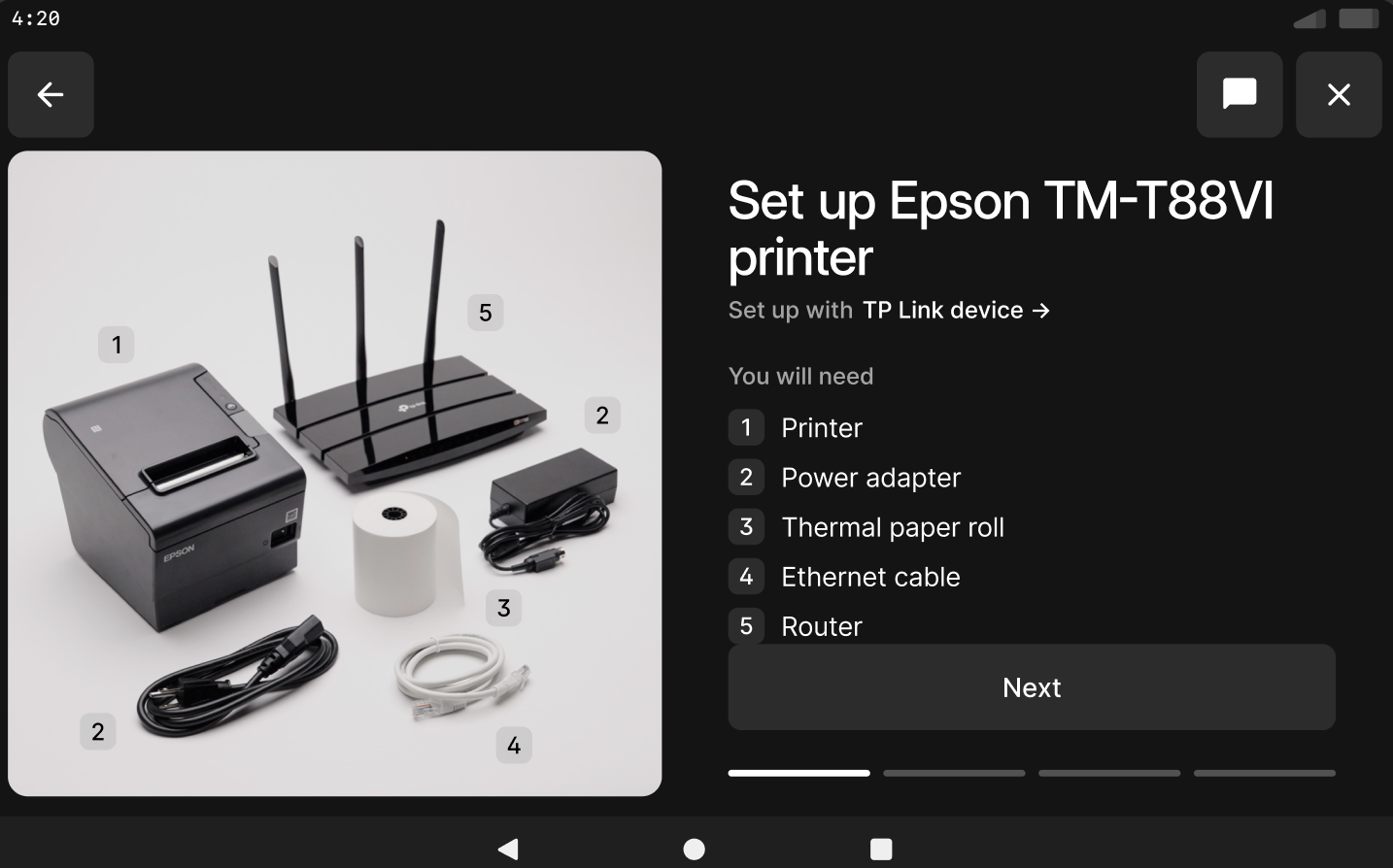

Check printer items and click 'Next'

 Screenshot 2023-11-17 at 14.25.05.png
2 Install paper, then click 'Next' Screenshot 2023-11-17 at 14.25.25.png
3 Connect printer, then click 'Next' Screenshot 2023-11-17 at 14.25.45.png
4 Plug TP Link into router, then click 'Next' Screenshot 2023-11-17 at 14.02.17 (1).png
5 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.03.29 (1).png
6 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.05.05 (1).png
7 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.05.30 (1).png
8 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.07.03 (1).png
9 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.07.24 (1).png
10 Set up smart device, then click 'Next' Screenshot 2023-11-17 at 14.07.41 (1).png
11

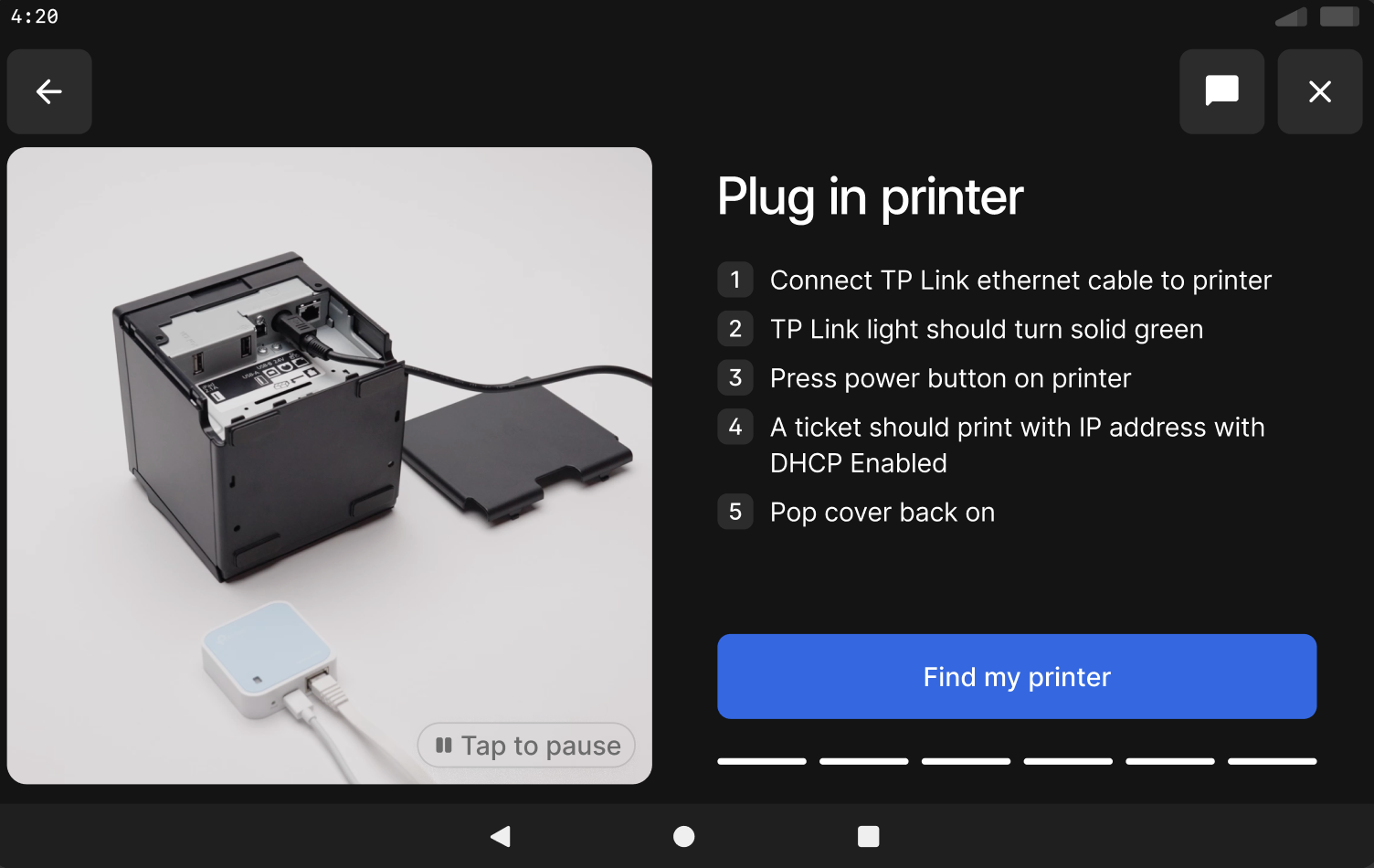

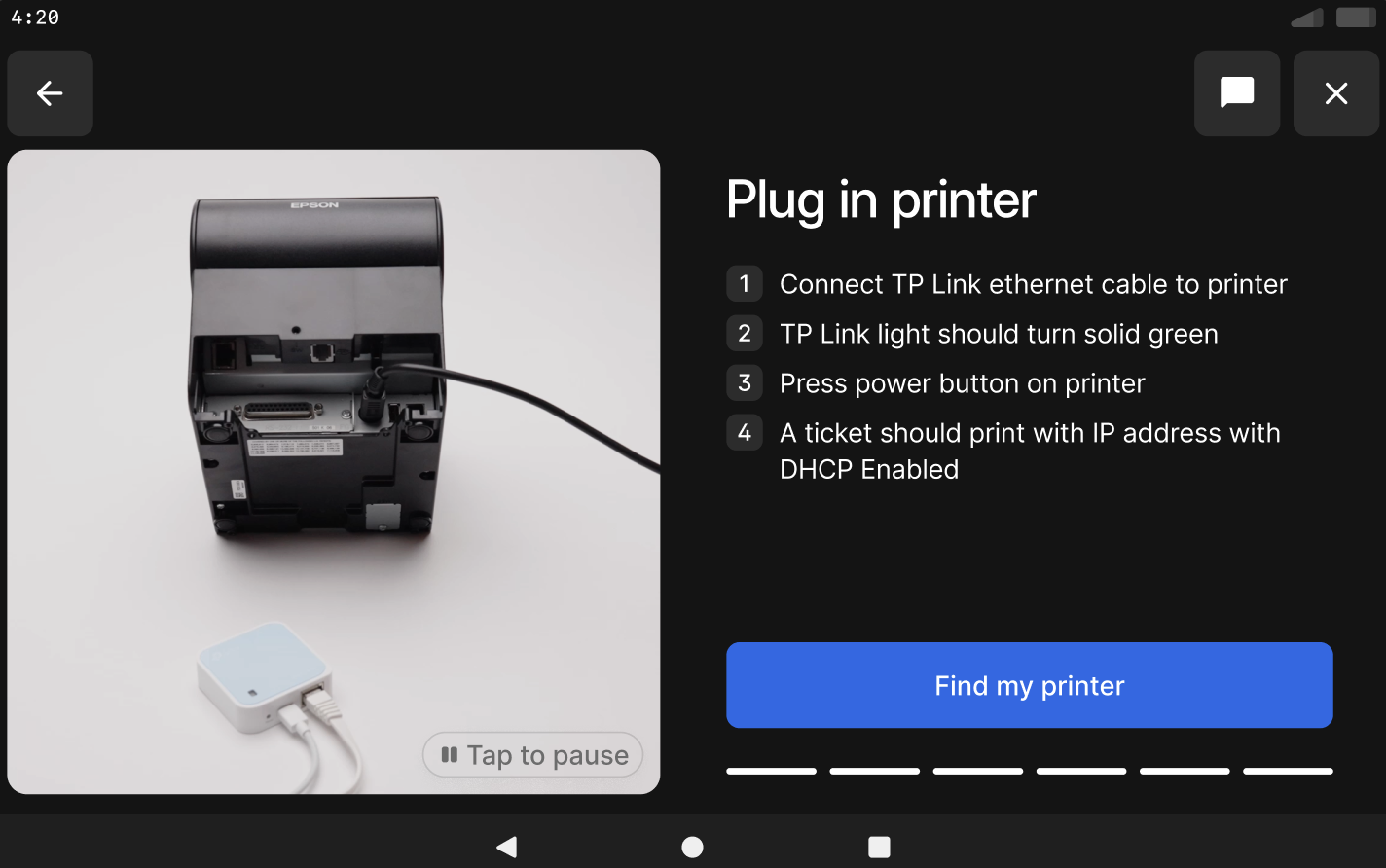

Plug in Printer, then click 'Find my printer'

 Screenshot 2023-11-17 at 14.26.57.png
12 Wait for the app to search nearby printers Screenshot 2023-11-17 at 14.10.41 (1).png
13 Select Epson TM-T88VI from the printer search result list Screenshot 2023-11-17 at 14.27.29.png
14 Wait for the printer to connect Screenshot 2023-10-18 at 17.16.19 (6).png
15

Once the printer connects successfully, the printer connected notification will pop up and a test ticket will be automatically printed

 Screenshot 2023-10-18 at 17.18.09 (6).png
16

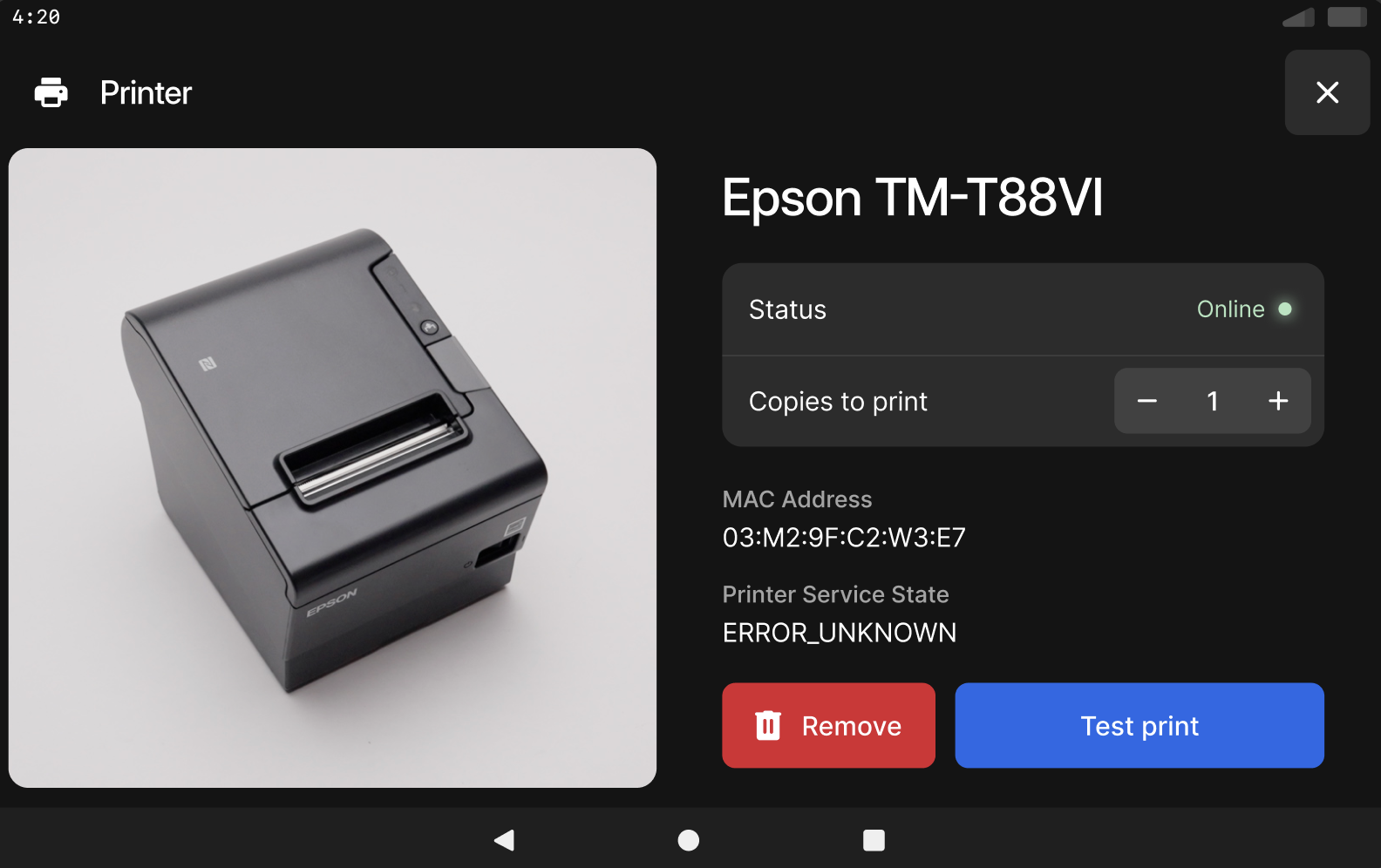

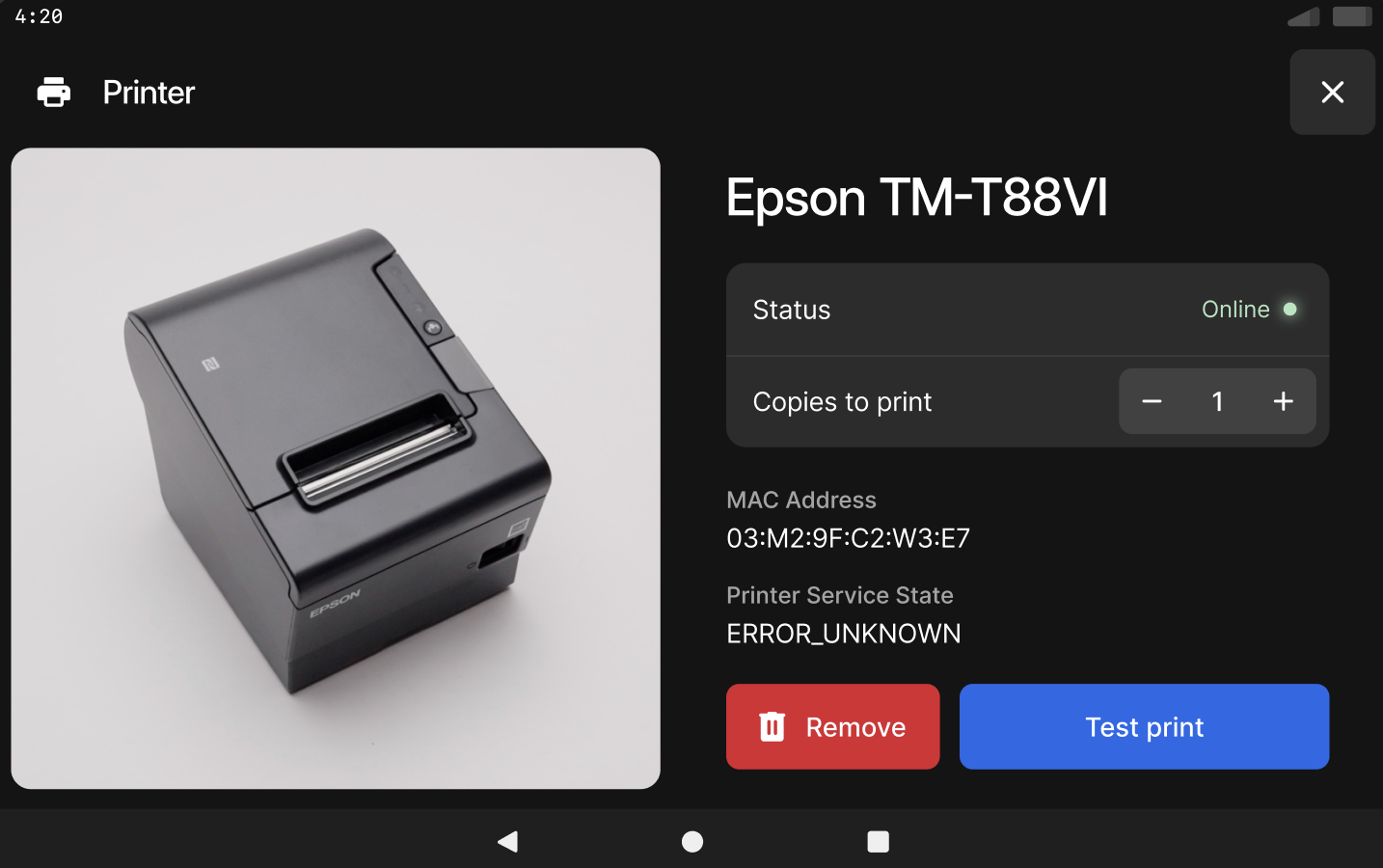

After the 'Printer connected' notification dismisses, printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2023-11-17 at 14.27.58.png

General Bluetooth Printers

Printer Setup Instructions: General Bluetooth Printers

Step Process Detail
1

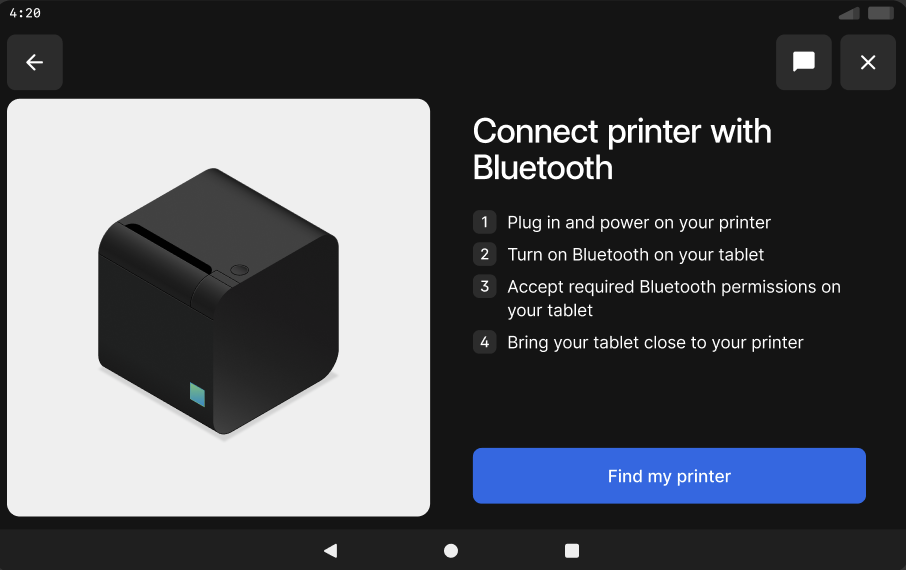

Ensure the printer is plugged in, then click 'Find my printer'

 Screenshot 2023-11-17 at 14.31.03.png
2

Wait for app to search nearby printers, then select your printer from the printer search result list

 Screenshot 2023-10-18 at 17.12.36 (3).png
3 Wait for printer to connect Screenshot 2023-10-18 at 17.16.19 (7).png
4 Once the printer connects successfully, the printer connected notification will pop up and a test ticket will be automatically printed Screenshot 2023-10-18 at 17.18.09 (7).png

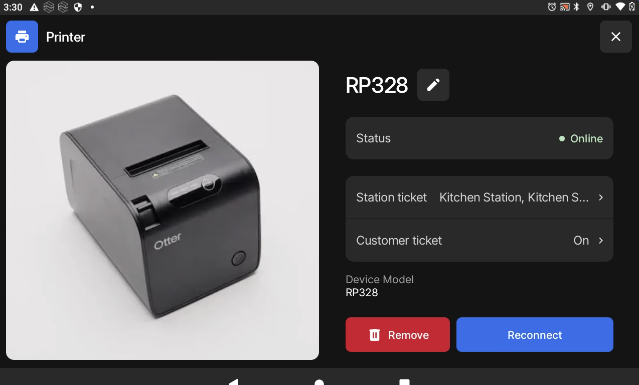

5

After the 'Printer connected' notification dismisses, printer details page will appear. You will now be able to:

  • Change the copy amount
  • Remove the printer
  • Print a test ticket
 Screenshot 2024-06-06 at 4.30.51 PM.png

If you need additional help or information, you can contact support via the following:

  • Chat - Our live agents are available 24/7 to help you through your Otter device. Tap the chat button on the top right corner of the home screen.
  • SMS/Text or Telephone - Send us a text or give us a call anytime at 1-888-681-8837 for prompt service from our support experts.
