Kiosk Troubleshooting

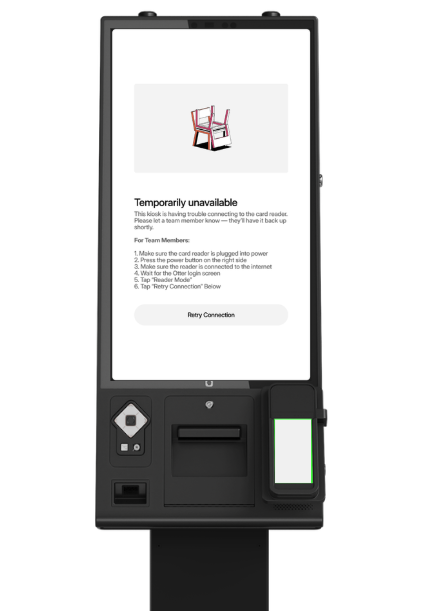

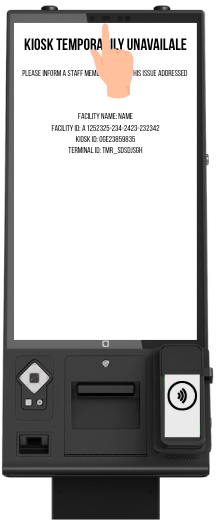

If you’re seeing an error message on your kiosk, there are a few reasons that could cause this error display.

• Card reader is not turned on or charged
• Card reader is not connected to the kiosk
• Card reader is disconnected from Wi-Fi
• Card reader exits "Reader mode"
• Card reader is not paired to kiosk

Check out the different troubleshooting scenarios below to resolve the common issues that cause that kiosk unavailable error.

Troubleshooting

• Step	Process	Image

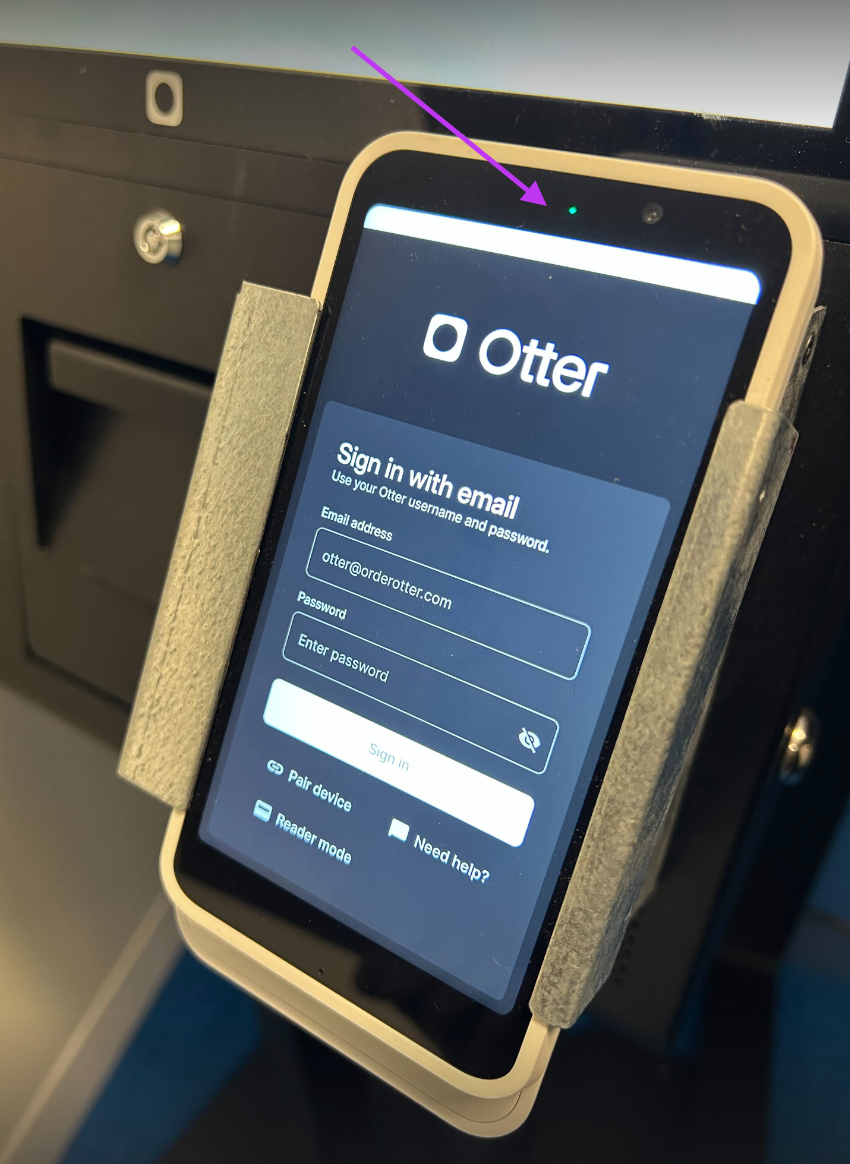

  1	Double-check card reader is ON (indicated by green light on top front of the reader).

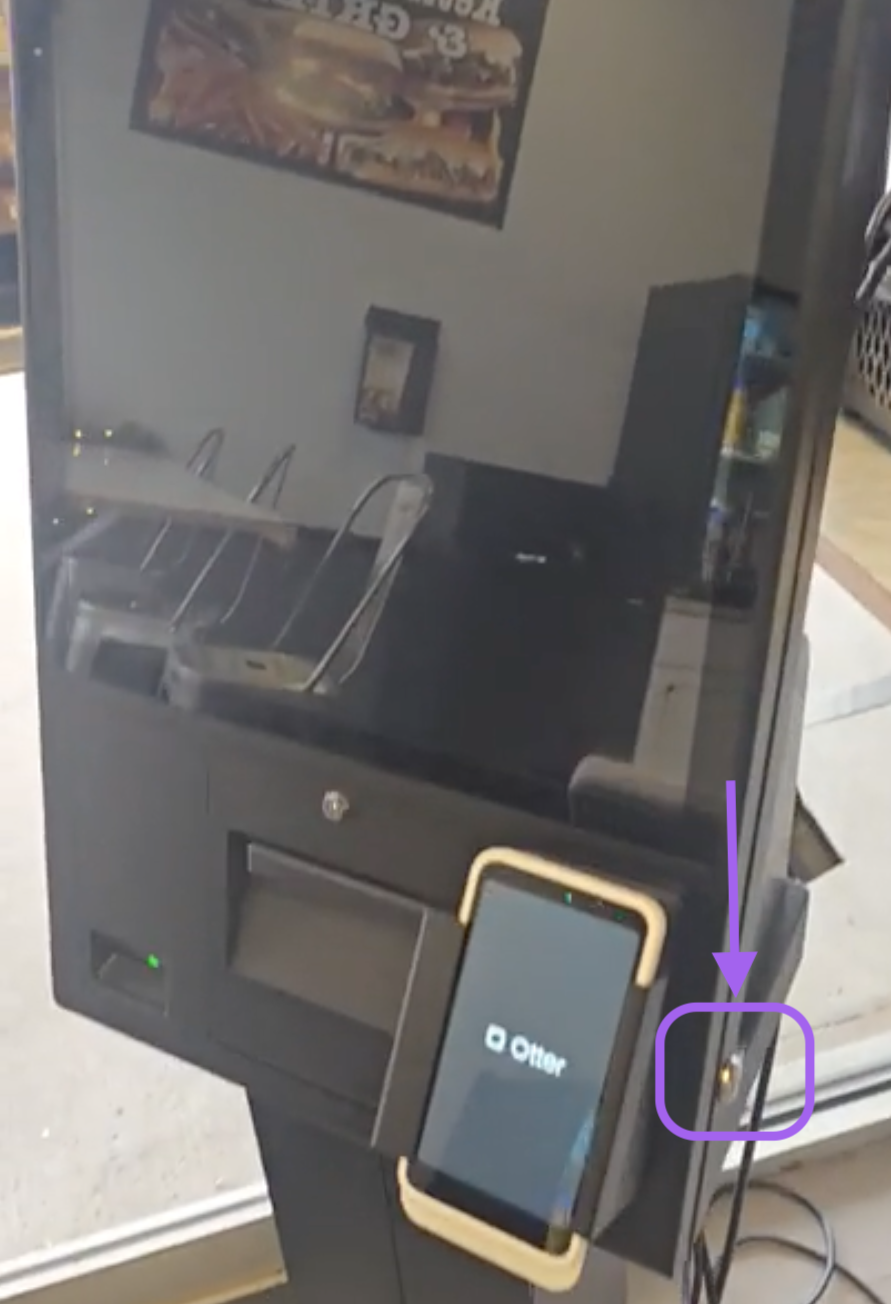

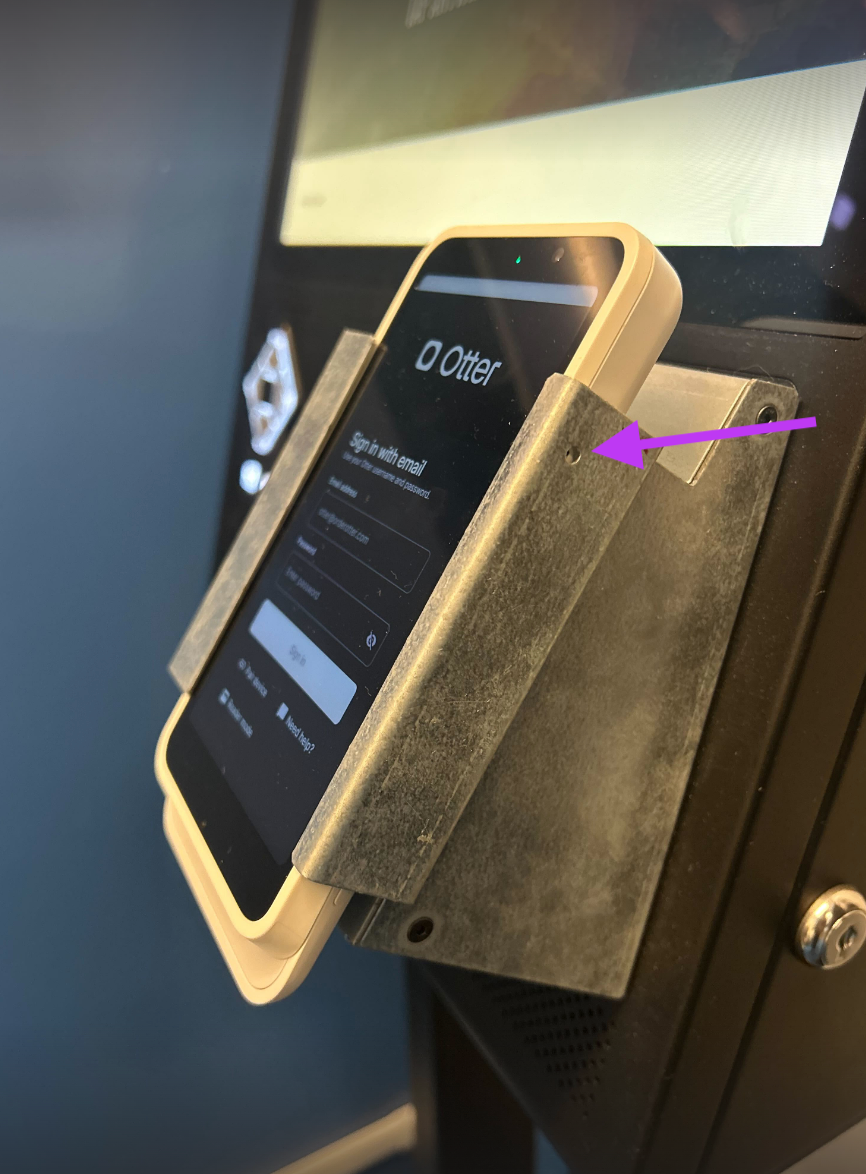

  2	If the card reader isn’t turning on, restart the card reader. Use a pushpin to press  the reset button on the right-side of the cradle.

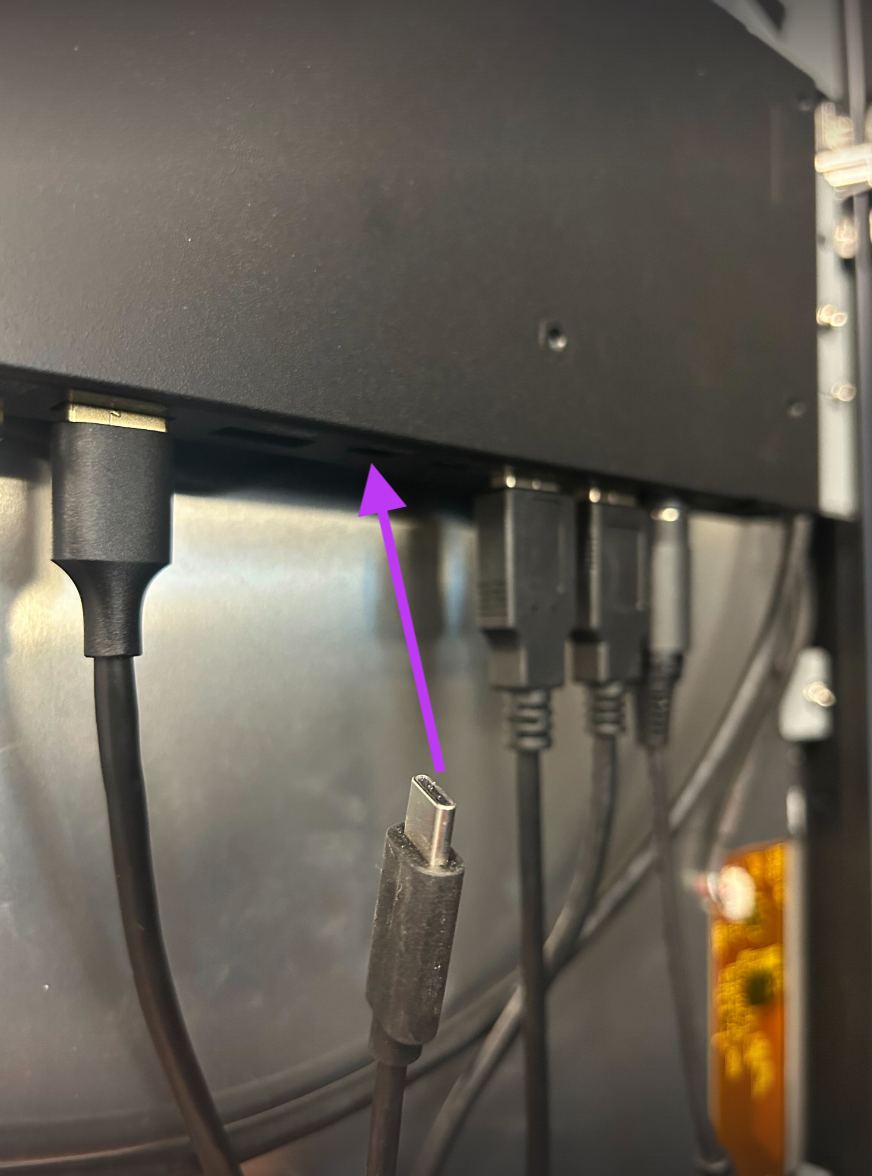

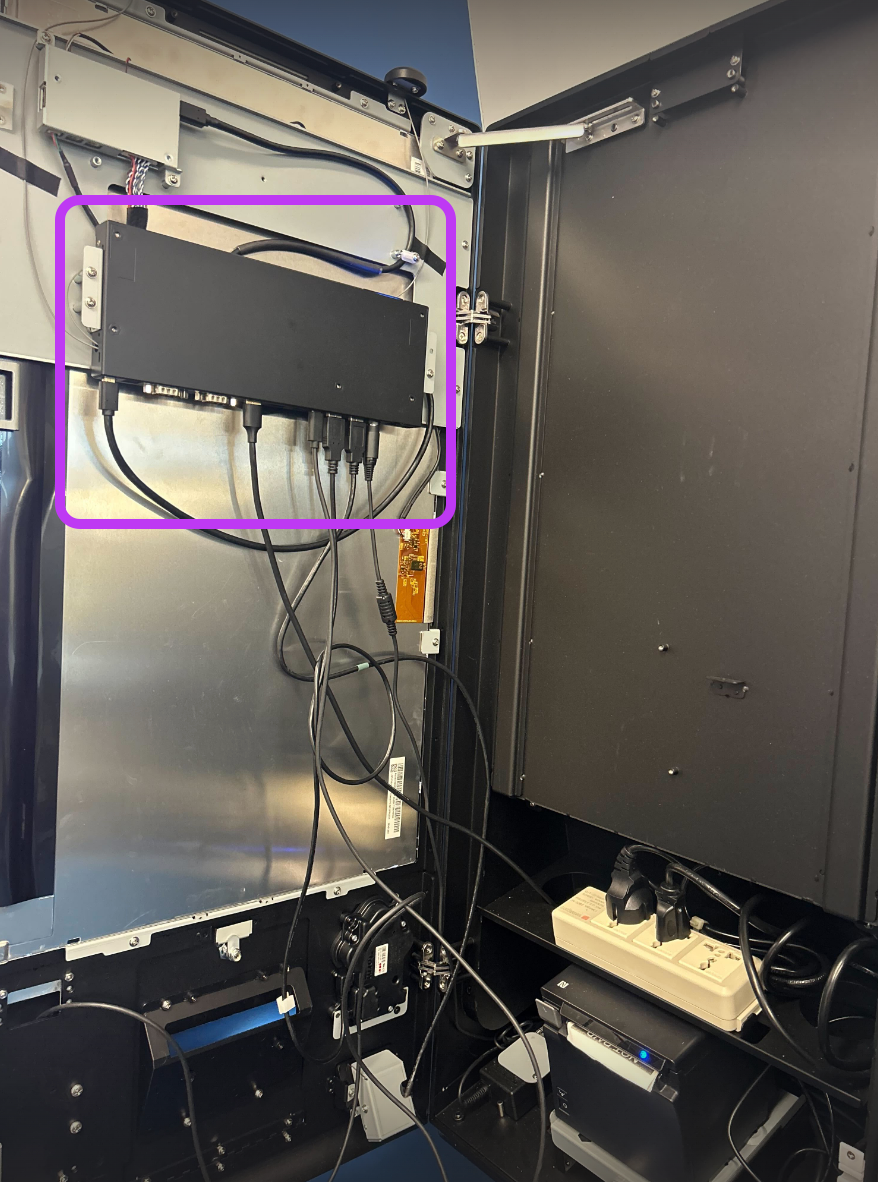

  3	If the card reader seems to not hold a charge, open the kiosk to access the connection box. Pull out the card reader plug from the power strip.
  4	Plug it into a power outlet for a quick charge. After charging a bit, turn ON the card reader (indicated by the green light).
  5	Plug the card reader back into the kiosk power strip. The kiosk should automatically detect the card reader connection.



  Turning Card Reader Off During Non-Operating Hours
  To ensure your card reader is holding a charge, you can turn it off during non-operating hours. This will save battery life and help ensure the card reader is good to go for the opening shift.

•


  Step	Process	Image
  1	On the top of the kiosk screen, hold your finger in the middle (about 5 seconds) until the admin pin window pops up.

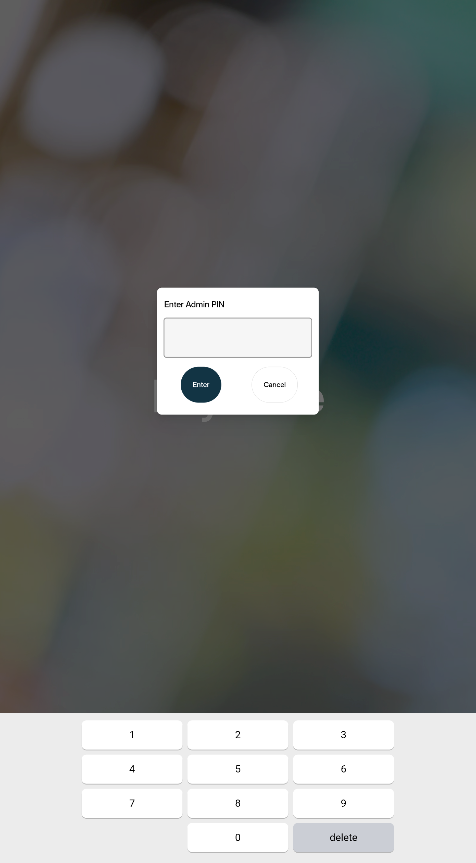

  2	Enter admin PIN 641804.

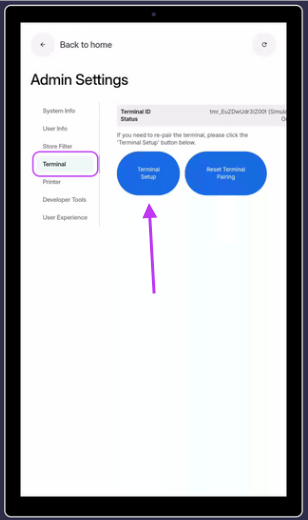

  3	Select Terminal > Terminal Set-up.

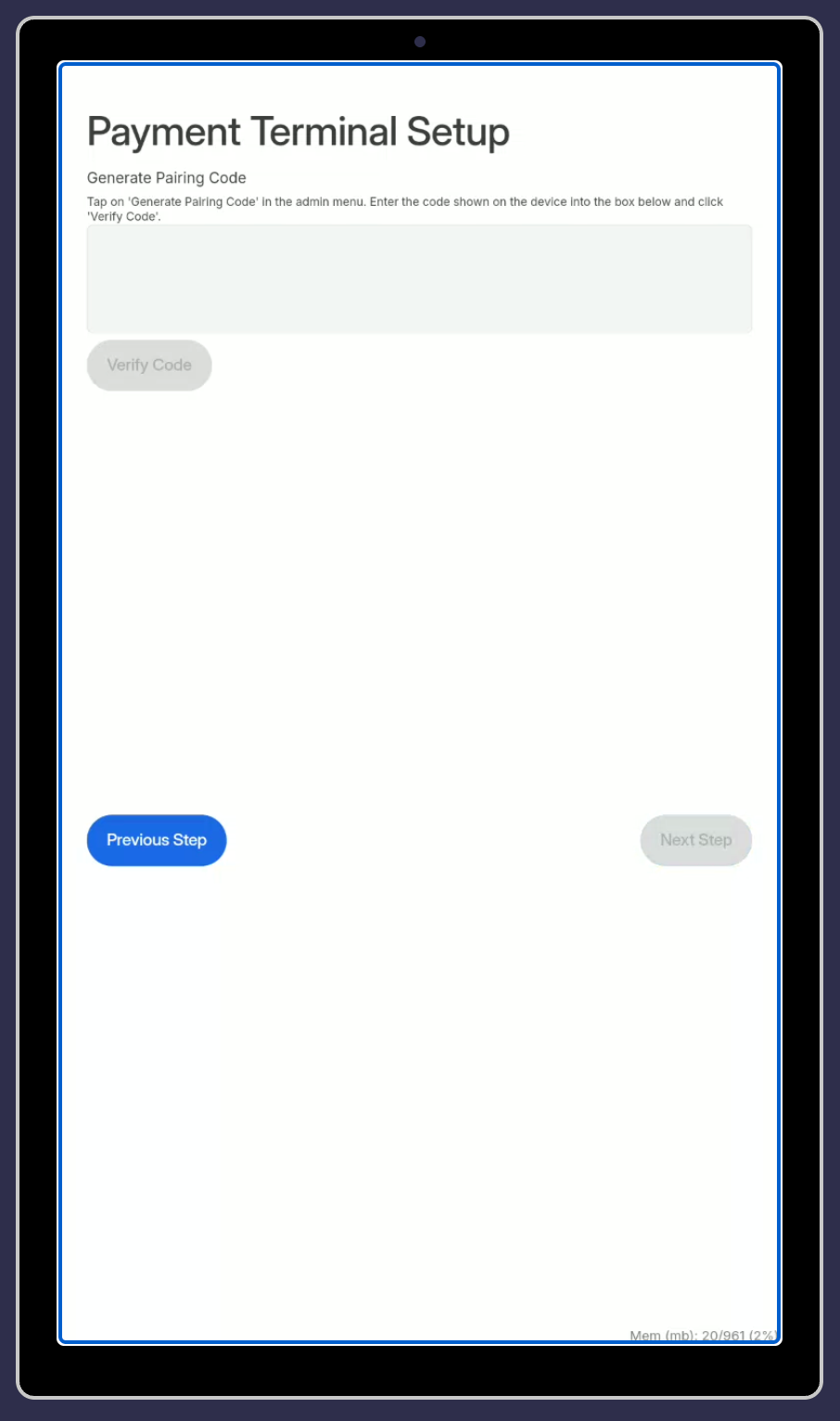

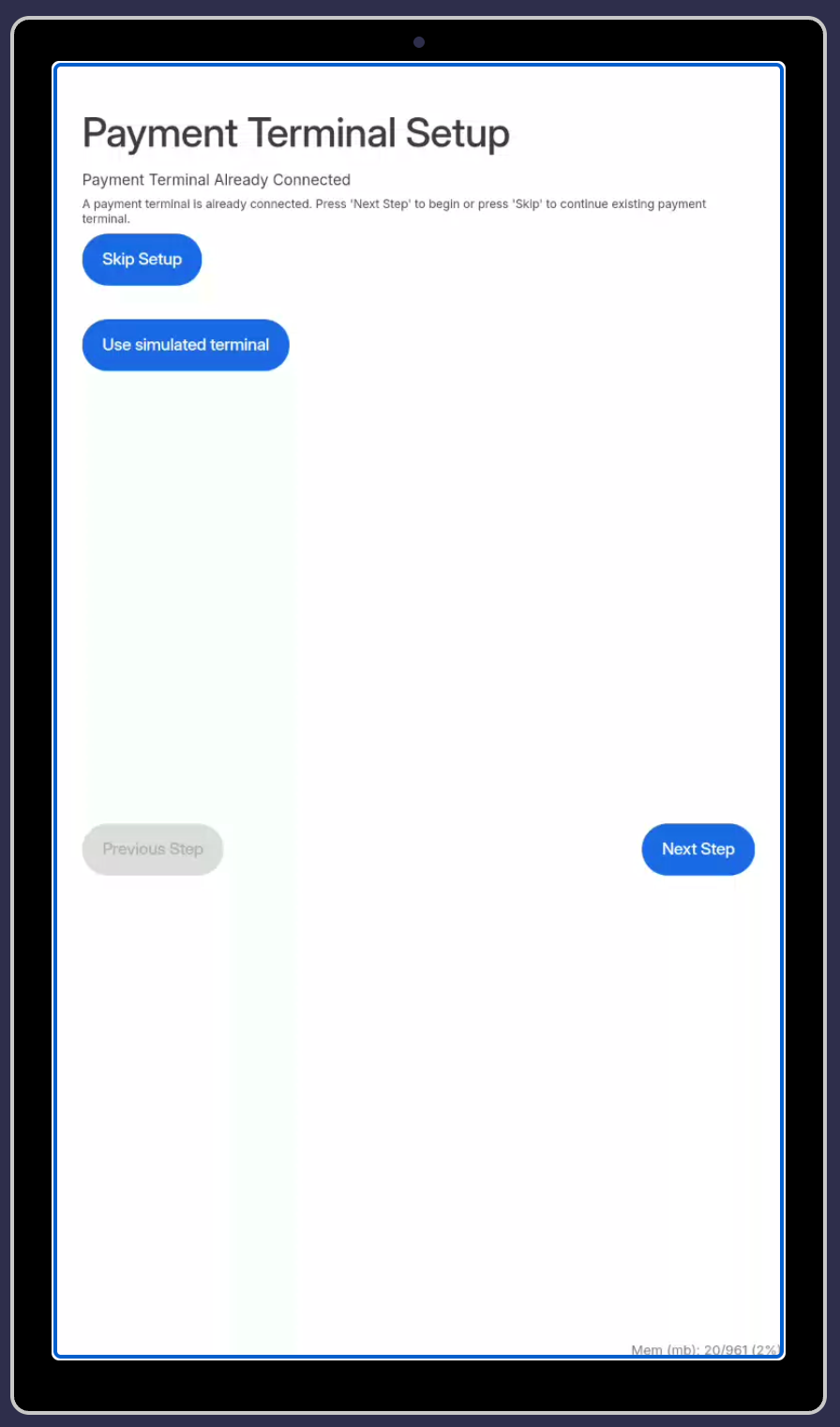

  4	Follow the Payment Terminal Setup prompts to the Generate Pairing Code enter screen.
  5	Confirm the card reader is connected to WiFi by swiping left to right on the top of the card reader to access network settings.
  6	Enter admin PIN 641804.
  7	Once the WiFi signal is confirmed on the reader, select Pair device.
  8	Enter the pairing code shown on the card reader directly on the kiosk.

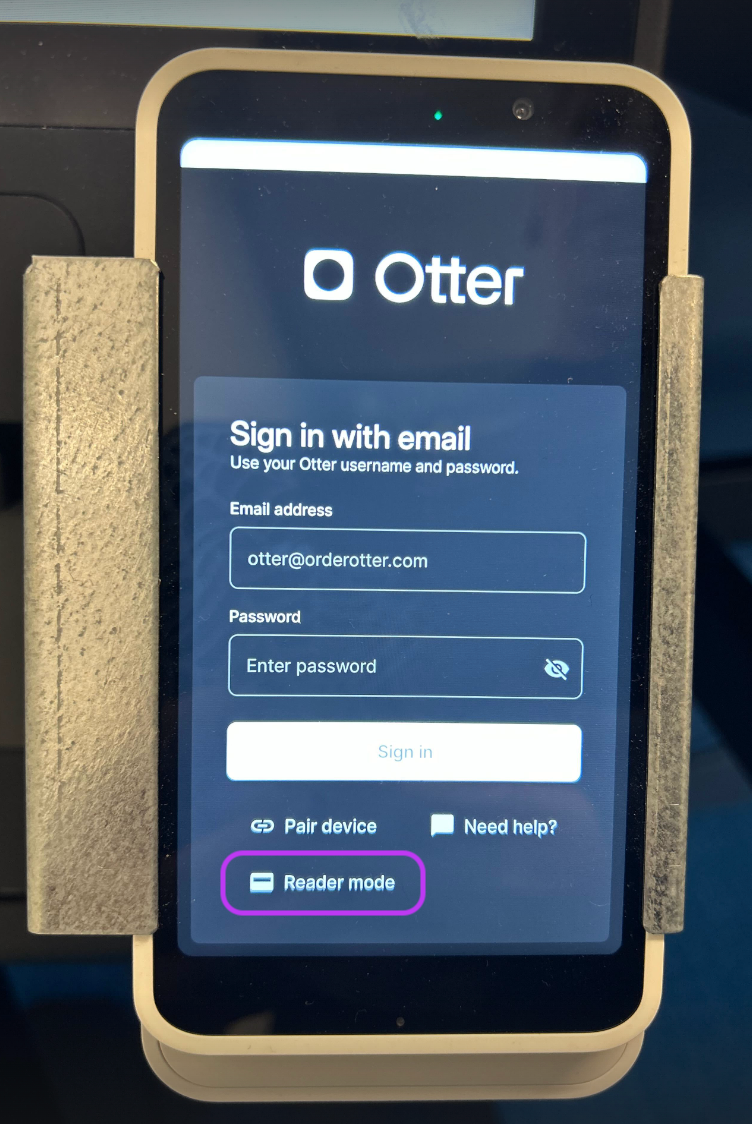

  9	Tap Reader Mode on the bottom of the Otter Login screen displayed on the card reader.

•

  Step	Process	Image

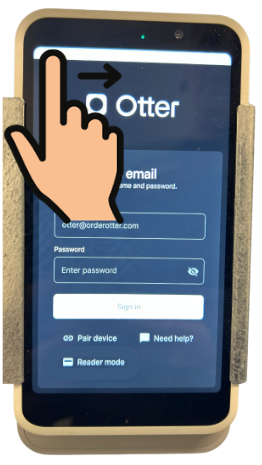

  1	Slide your finger from the left to right corner on the card reader to access WiFi settings.
  2	Select Settings. Enter passcode when prompted.
  3	Click Network. Connect to your available WiFi network.
  4	Run a diagnostic check to ensure the internet speed is adequate for operations.

•

  Step	Process	Image
  1	On the top of the kiosk screen, hold your finger in the middle until the admin pin window pops up.
  2	Enter admin PIN 641804.

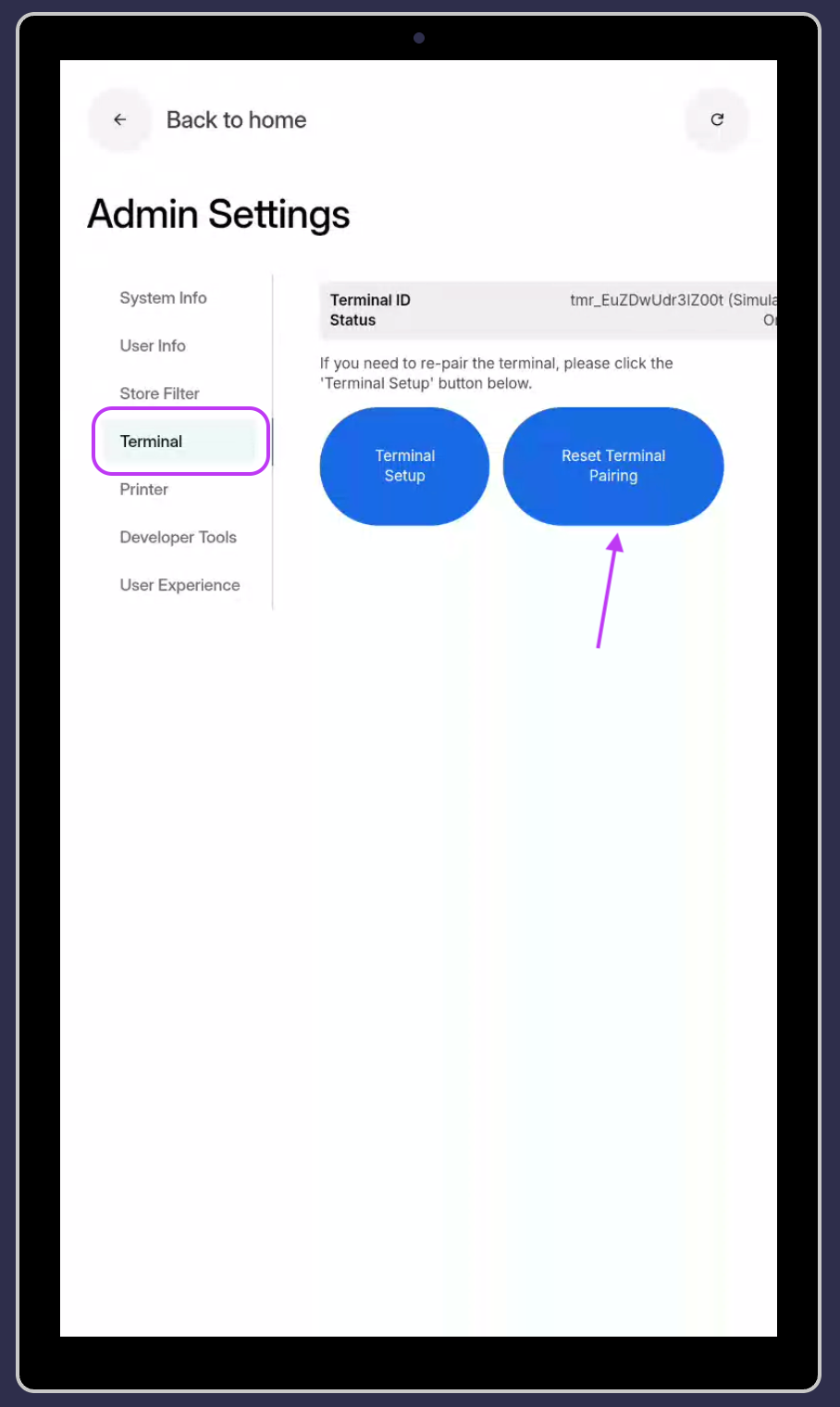

  3	Select Terminal > Reset Terminal Pairing.
  4	Tap through the Payment Terminal Setup.
  5	Follow Kiosk and Payment Terminal Pairing guide to complete manual repairing.

• For s700 readers being used as a kiosk card reader, when it exits Reader Mode it will display the Otter login screen. To resolve this, do not login—  just tap Reader Mode at the bottom of the screen.



Updated January 17, 2026 01:40
