Cash Drawer Setup Guide

Overview

Follow the instructions below to connect a cash box to the POS Terminal. Once connected, cash boxes can be enabled by toggling on the “Cash Management” feature in the [POS App] setting within Otter Dashboard.

Learn more here: Cash Management






Cash Drawer Hardware

There are two different types of Cash Drawers you can pick from based on your preferred POS setup.

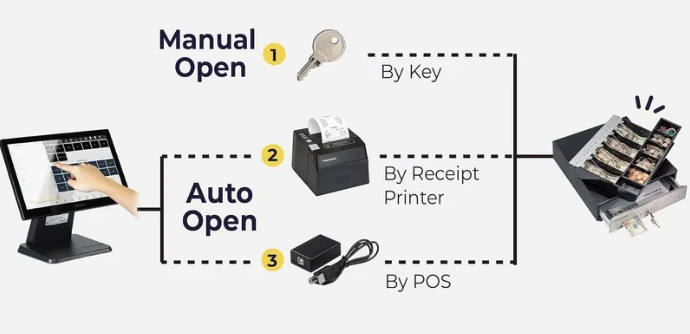

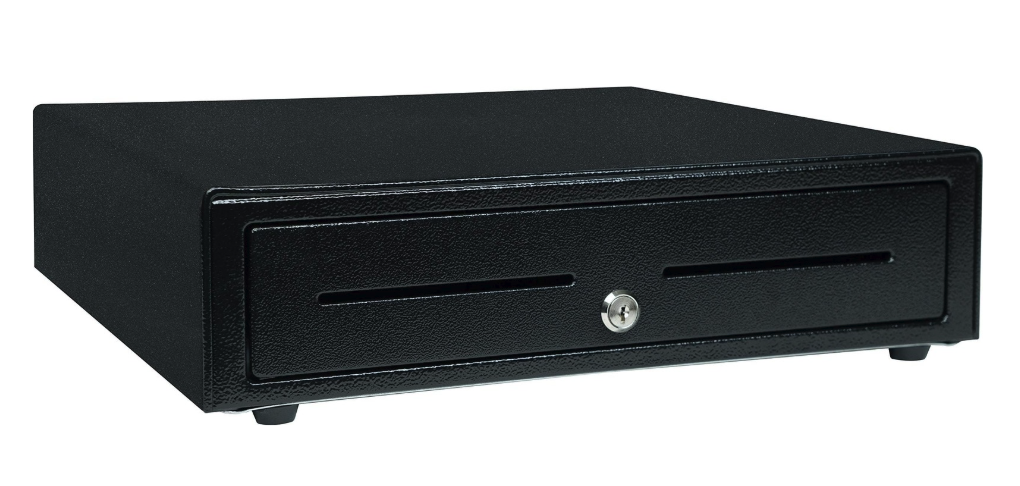

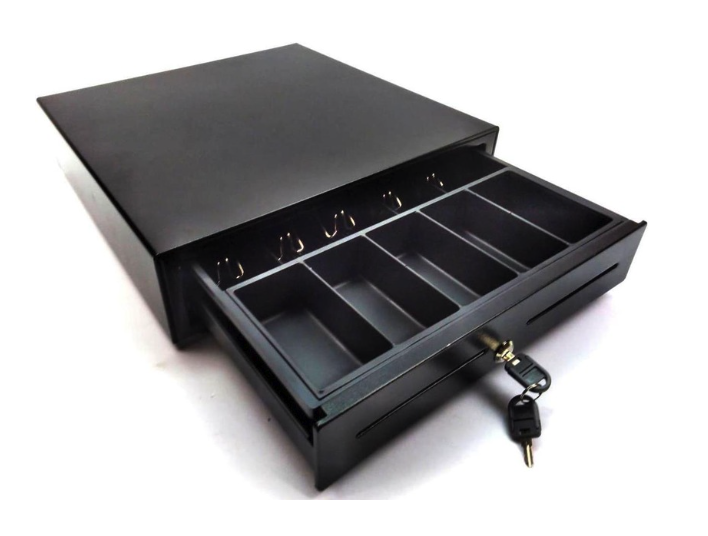

The 13" Cash Register Drawer for Point of Sale (POS) System needs to be installed before you can complete cash transactions through the Otter POS terminal.

Cash Drawer Hardware
Cash Drawer Hardware
Cash Drawer Hardware
Learn more about the Cash Drawer specs: Volcora 13" Cash Register Drawer for Point of Sale (POS) System!






Cash Drawer Setup

Follow the instructions below to connect a cash box to the POS Terminal. Once connected, cash boxes can be enabled by toggling on the “Cash management” feature in the [POS App] within Otter Dashboard.

13" Cash Drawer (Volcora) Setup Walkthrough



Step Process Image

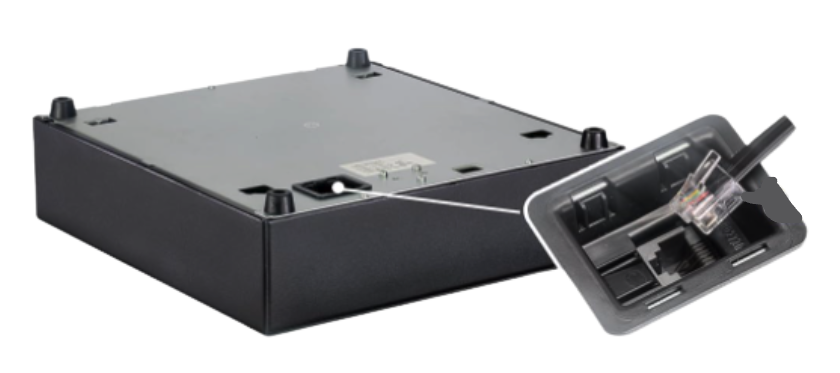

1 Connect your cashbox using a RJ-12 or RJ-11 cable (Standard phone jack).
Step 1 Volcora 13" Cash Drawer Setup.png

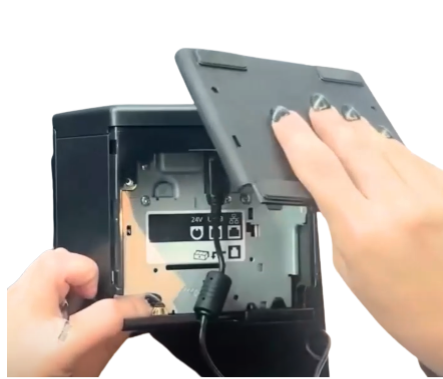

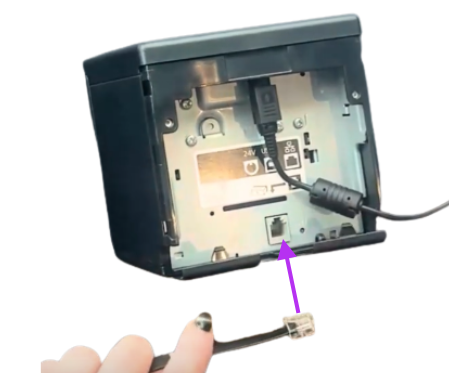

2 Plug the other end of the cable into the bottom of the connected printer.
Step 2 Volcora 13" Cash Drawer Setup.png
3 Go to Otter Dashboard.
Step 3 Volcora 13" Cash Drawer Setup.png

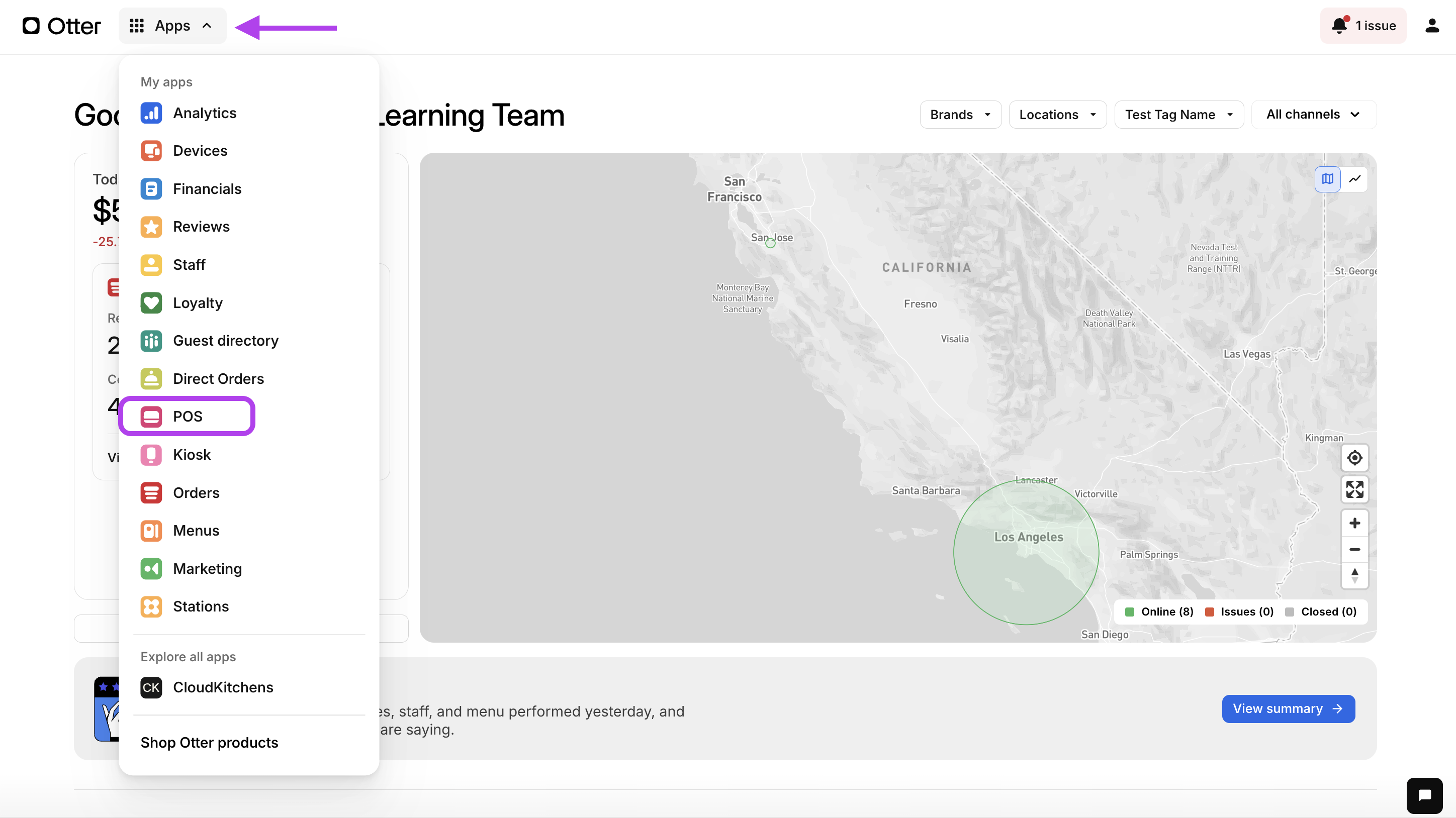

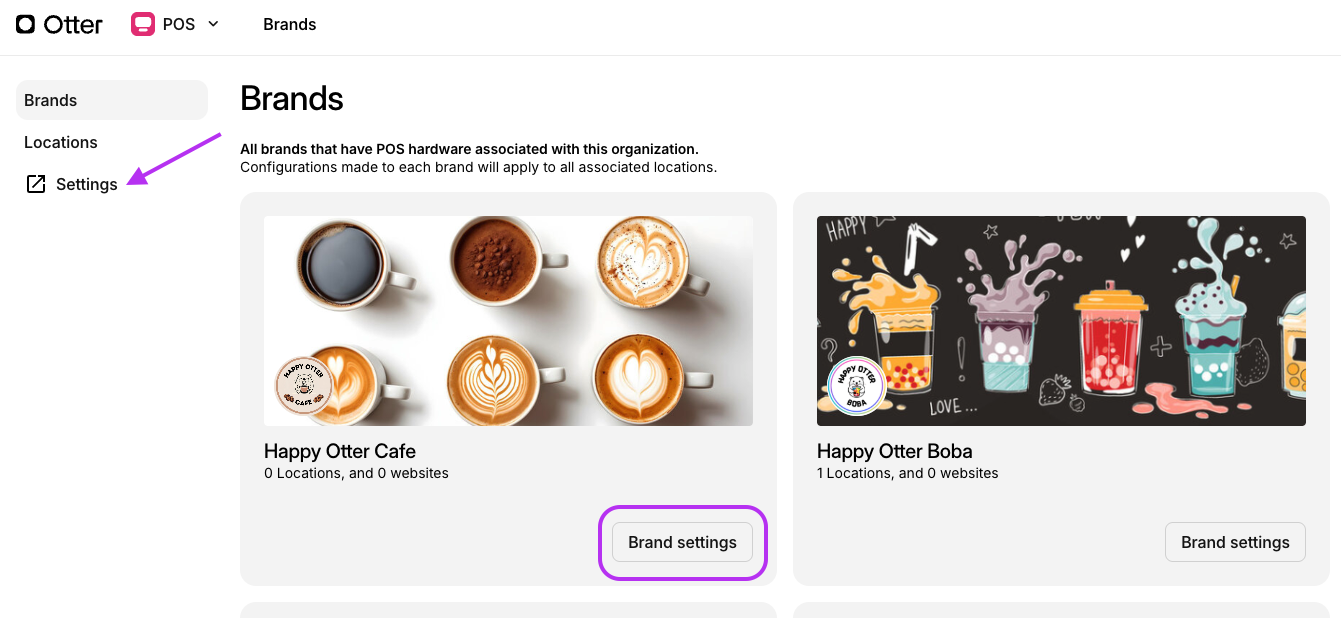

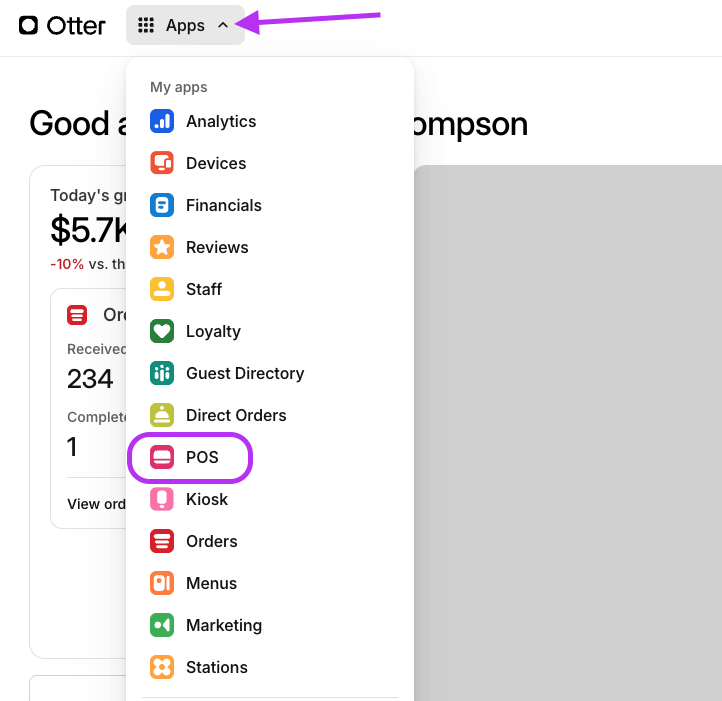

4 Select [POS] from the App drop-down.
POS App in Otter Dashboard

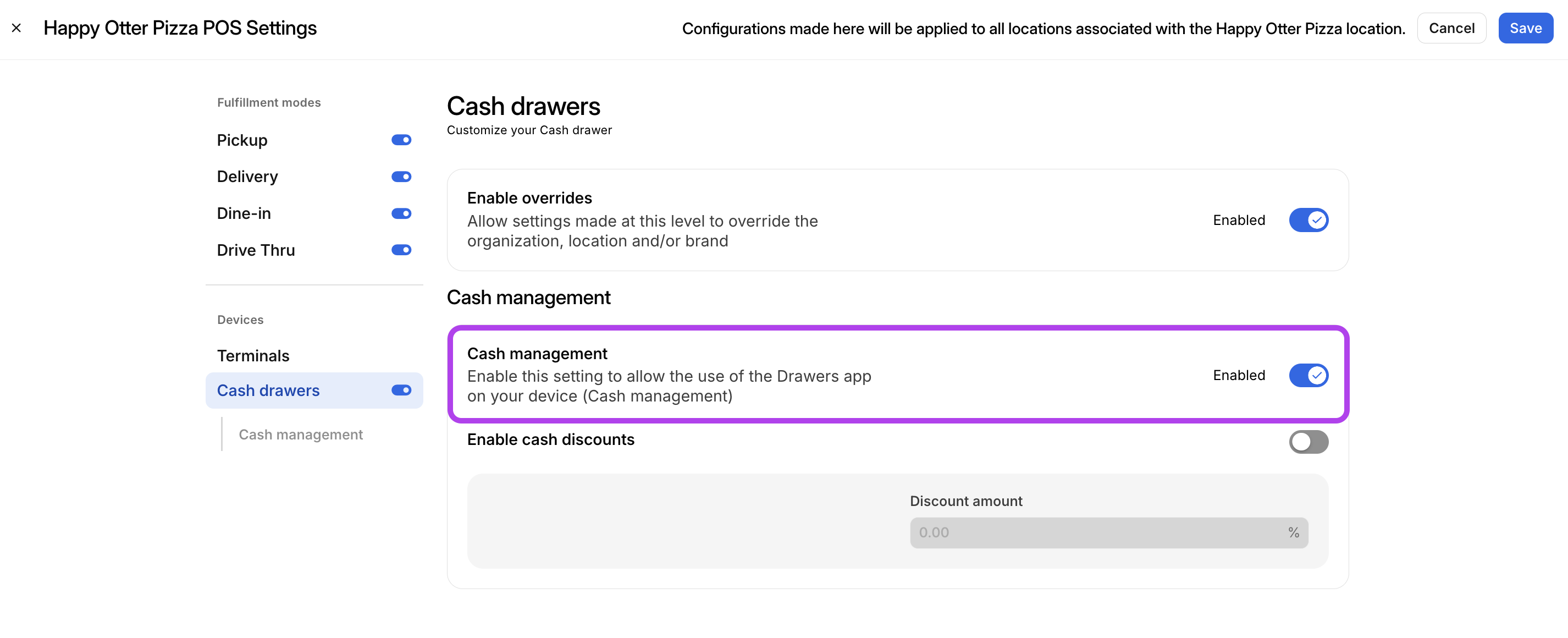

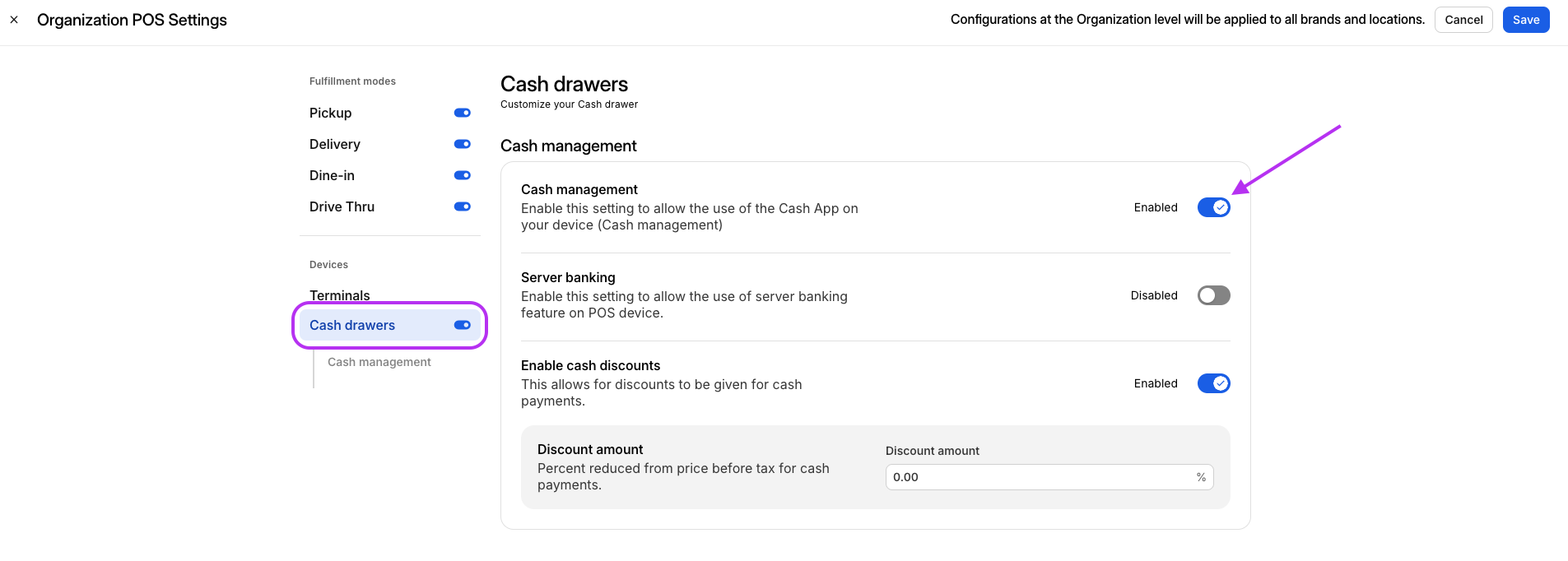

5 Under Cash Management, toggle on [Use cash drawers].
Toggle ON Cash Management.png

16" Cash Drawer (Star Micronics CD4) Setup Walkthrough


If you are struggling with connecting a Star Micronics CD4 cash drawer, which is the larger size cash drawer, it is most likely because the cable is one-directional. Please follow the steps below to swap the cable.

Step Process Image

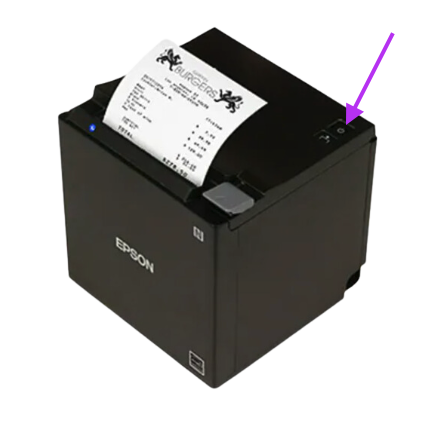

1 Turn off the printer.
Step 1 Cash drawer is not connecting.png

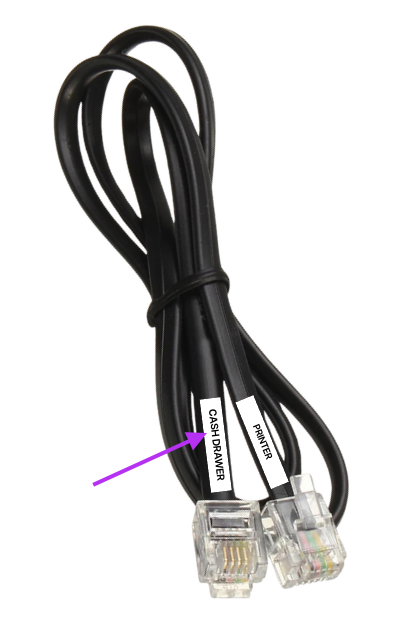

2 Swap the direction of the cable.
Swap the direction of the cable.png
3 Make sure the cable is plugged into the right port in the printer and the cash drawer.
4 Turn the printer back on.
Step 1 Cash drawer is not connecting.png






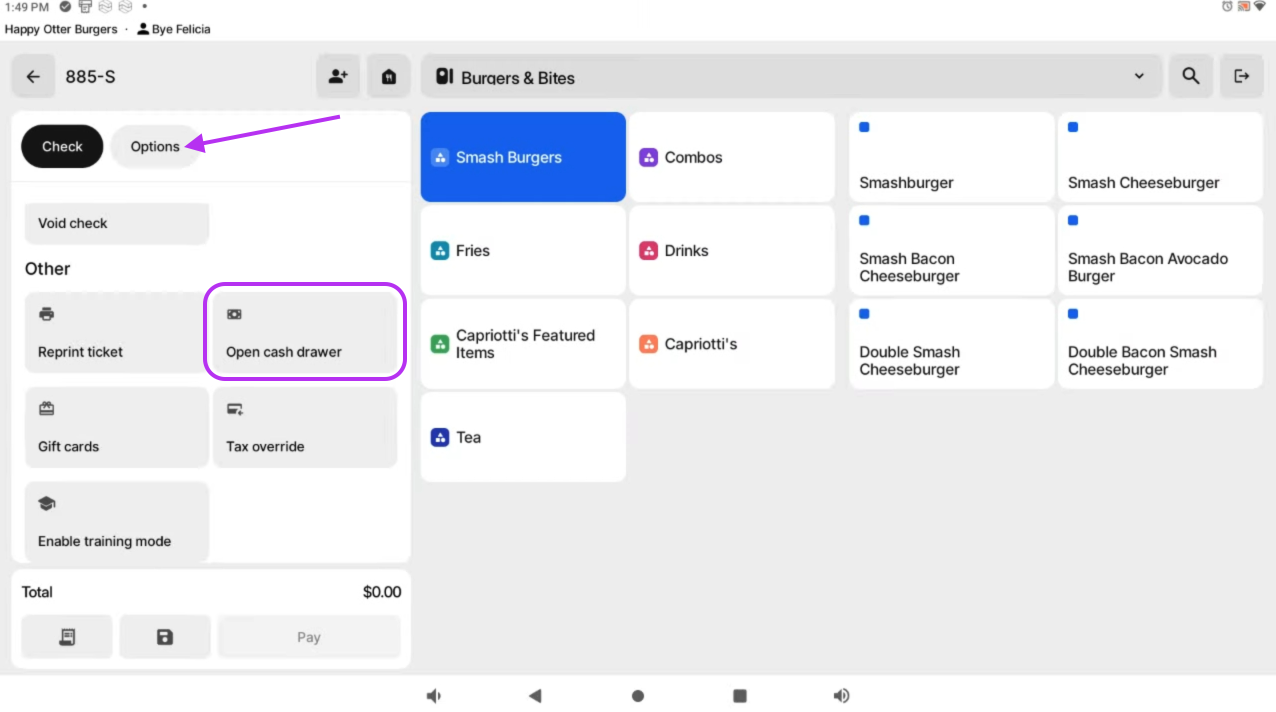

Troubleshooting Cash Drawers

Experiencing issues despite connecting the cash drawers cable to the printer correctly? Find solutions in our troubleshooting article: Otter POS: Cash Drawers Troubleshooting.

Cash drawer connection issues



Step Process Image
1 Turn off the printer.
Step 1 Cash drawer is not connecting.png
2 Swap the direction of the cable (use the other end to plug in to your POS).
Step 2 Cash drawer is not connecting.png
3 Make sure the cable is plugged into the right port in the printer and the cash drawer.
Step 3.1 Cash drawer is not connecting.png
Step 3.2 Cash drawer is not connecting.png
4 Turn the printer back on.
Step 4 Cash drawer is not connecting.png
5 Open Otter Dashboard and click on the [Profile] icon.
Step 5 Cash drawer is not connecting.png
6

Go to [Settings].

Select [User Management] in the left-side menu and click on [Users] from the drop-down.

Step 6 Cash drawer is not connecting.png
7 Make sure the user credentials has a "Supervisor" role.
Step 7 Cash drawer is not connecting.png
8 Now, go back to the Otter Dashboard homepage. Click on [Apps] and select [POS] from the dropdown options.
POS App in Otter Dashboard
9 Under Cash management, toggle on the [Cash management] feature.
Toggle ON Cash Management.png






Frequently Asked Questions

What are the specs of the cash drawer?

How many bill slots and coin slots does the cash drawer have?



  • The cash drawer has 4 bill slots.
  • The cash drawer has 5 coin slots.

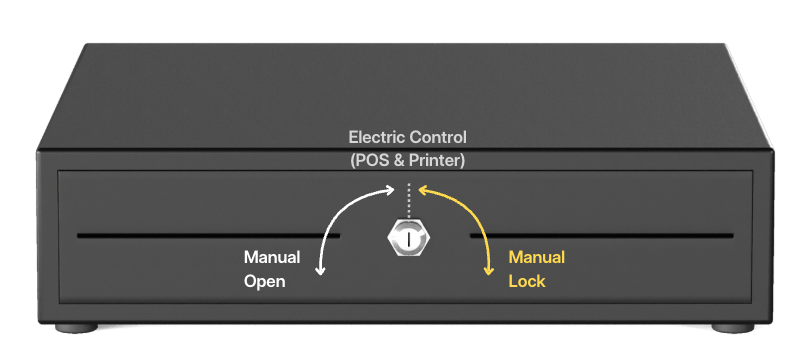

  • The drawer comes with a set of keys so it can be locked or opened outside of a transaction.
  • The drawer also comes with a RJ11/RJ12 cable, which connects to the printer and the cash register.






Still need help? Reach out to our team:

Chat Icon in Otter Dashboard Live Chat   Text bubble Text/SMS Message   Email Icon Email
Chat with support by clicking the chat icon in the bottom right corner of the Otter Dashboard.

+1 (888) 681-8837

Send us a text to the number above for assistance over text message.

  Send us an email at otterpossupport@tryotter.com.
